Porduct Overview

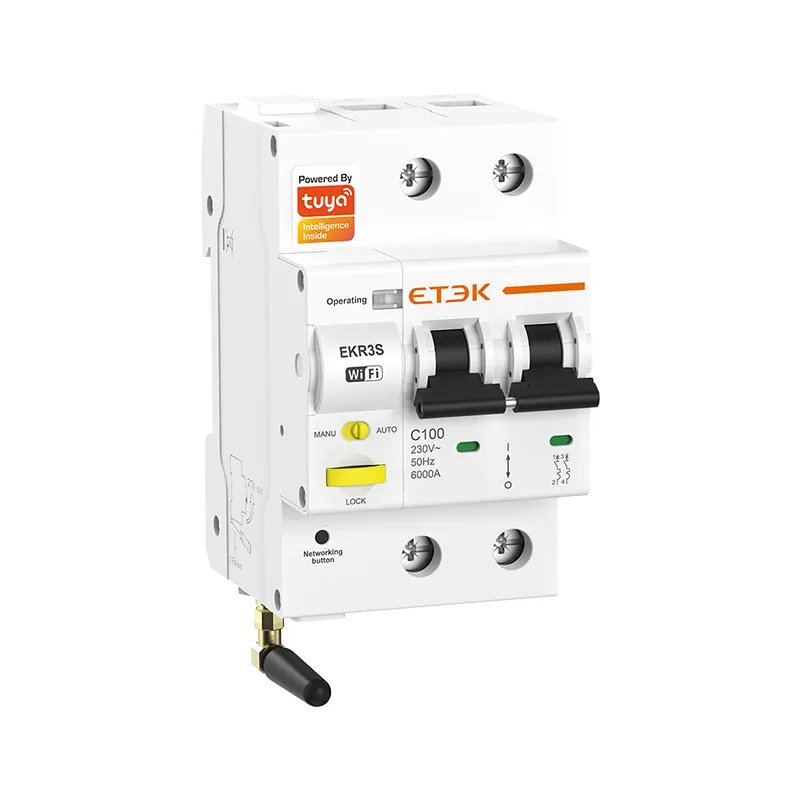

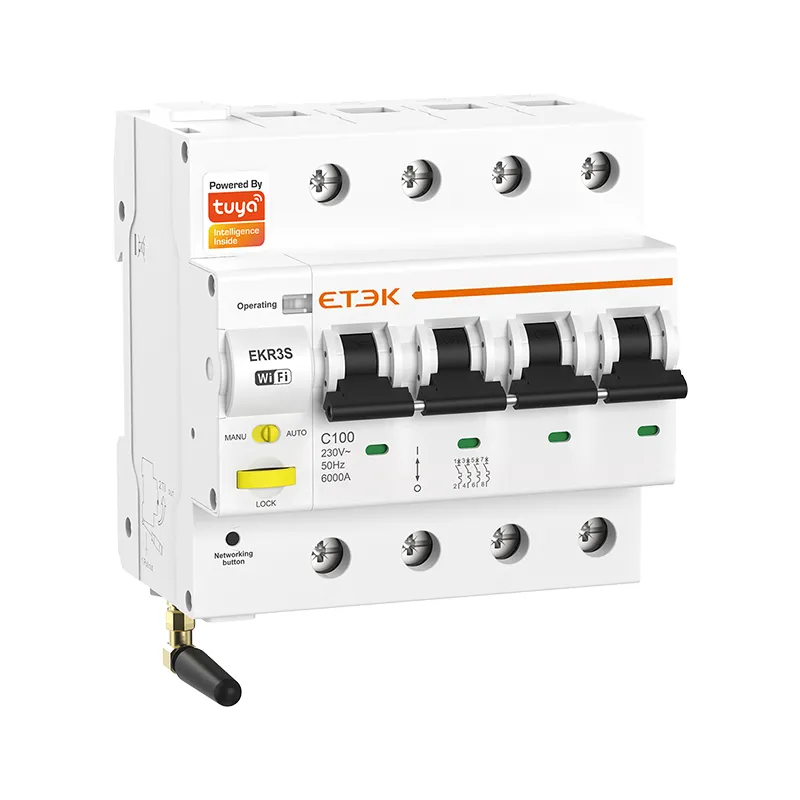

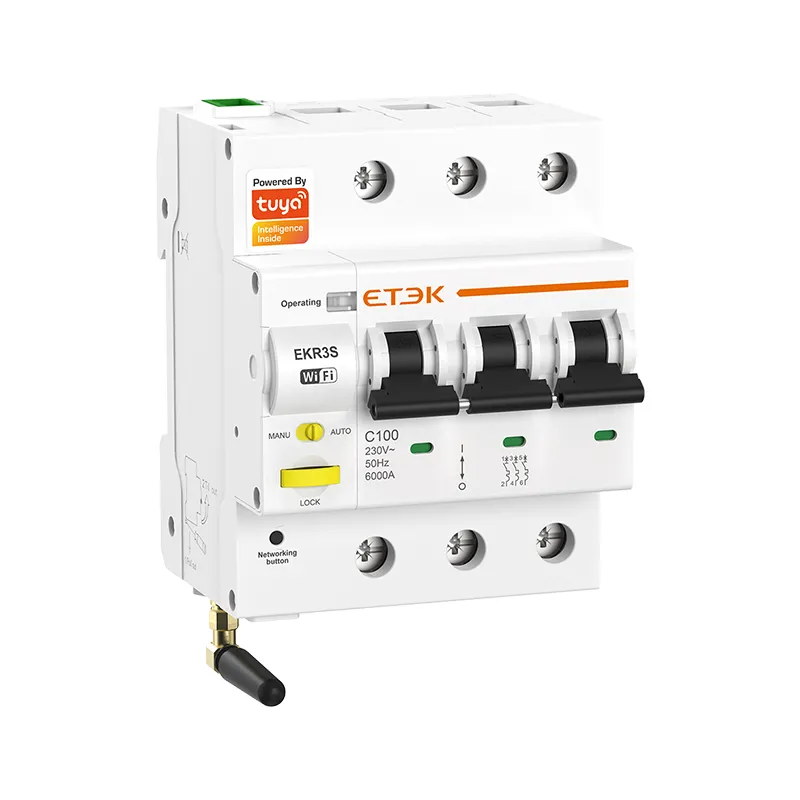

EKR3S Smart MCB offers overload and short-circuit protection for circuits up to 100A, and can also monitor various electrical parameters in real-time, with remote control capabilities through the Tuya APP or RS485 platform.

EKR3S smart MCB is an ideal choice for smart home and industrial automation systems, offering circuit protection, remote control, and monitoring capabilities to improve energy management efficiency, enhance power safety, and provide users with more control options.

Features

Traditional protection: Overload protection, Short-circuit protection
Smart Capabilities: Remote control through Tuya APP or RS485 platform, Wi-Fi, ZigBee, RS485, or Dry contact communication options, Supported Apps: Tuya, Smart Life
Advanced Functions: Remote opening and closing control, Timing tasks (power on/off scheduling), Real-time switch status monitoring, Electricity metering (only 1P&2P)
Automatic, Manual Mode: Automatic mode allows remote control (Tuya APP, RS485), Manual Mode, only supports local manual operation
Mechanical Padlock: When the mechanical lock is pulled out, the switch enters a locked state, preventing the switch from being turned on. To restore the device, press down the mechanical lock.

Applications:

Smart home systems, which can be integrated into the overall home automation solution.
Commercial buildings, which can achieve centralized energy management.
Industrial facilities, which can remotely monitor and control individual circuits.
Locations where electricity consumption requires regular control, such as billboard lighting and public area lighting.

Technical parameters

Technical Data

Model Explanation

EK	R3S	-	0	-	2P	C	63
Company code	Series code		Communication method:		Poles:	Trip Curve:	Rated current:
			0: WiFi (Tuya)		1P, 2P, 3P, 4P	B, C, D	10, 16, 25, 32, 40, 50, 63, 80, 100A
			1: Dry Contact
			2: ZigBee (Tuya)
			5: RS485

Technical Parameter

Standard	IEC/EN 60898-1, IEC/EN 60947-2
Poles	1P, 2P ((with metering)	3P, 4P (without metering)
Supply terminal	L-N
	(It is advisable to draw power from the incoming line)
Power supply voltage	220/230V
Standby power consumption	＜5W
Status Indicator	LED
Operating voltage	230/ 240V (1P, 2P), 380/400V(3P, 4P)
Rated frequency	50/60Hz
Rated operating current	10, 16, 25, 32, 40, 50, 63, 80, 100A
Rated breaking capacity	6kA
Rated impulse withstand voltage(1.2/50) Uimp	4kV
Dielectric test voltage at Ind. Freq.for 1 min	2kV
Trip Curve	B: (3-5) x In, C: (5-10) x In, D: (10-20) x In
Trip time	≤1S
Electrical life	4000 Cycles
Mechanical life	10000 Cycles
Communication method	WiFi (Tuya), 2.4GHz
	ZigBee (Tuya)
	Dry Contact
	RS485, Baud rate: 2400/ 4800/ 9600 (default)
Operational Safety	Mechanical Padlock, Ensure safety during onsite maintenance
Monitoring Physical Data	Real-time Voltage, Real-time Current, Real-time Power, Temperature, Switch State, Device Operating Status
Function Description	Overload Protection
	Short Circuit Protection
	Over-temperature protection
	Multiple Timing
	Remote Control
	Electricity metering
Characteristic set up	Over/under voltage action time
	Over/under voltage value
	Overcurrent value
	Voltage imbalance value
	Over power value
	Phase loss value
	Overtemperature value
Protection degree	IP20
Ambient temperature	-5℃ to +40℃
	(Current capacity is significantly reduced at 70℃)
Storage temperature	-25℃ to +70℃
Max. Supply terminal size for cable	2.5mm²
Terminal Connection type	Cable/Pin-type busbar
Max. terminal Size Top/Bottom for Cable	50mm²
Altitude	≤2000m
Mounting	Mounting on 35mm DIN rail
Connection	From top

Dimensions
