ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD
ETEK-AFDD-EKL9-40AFD

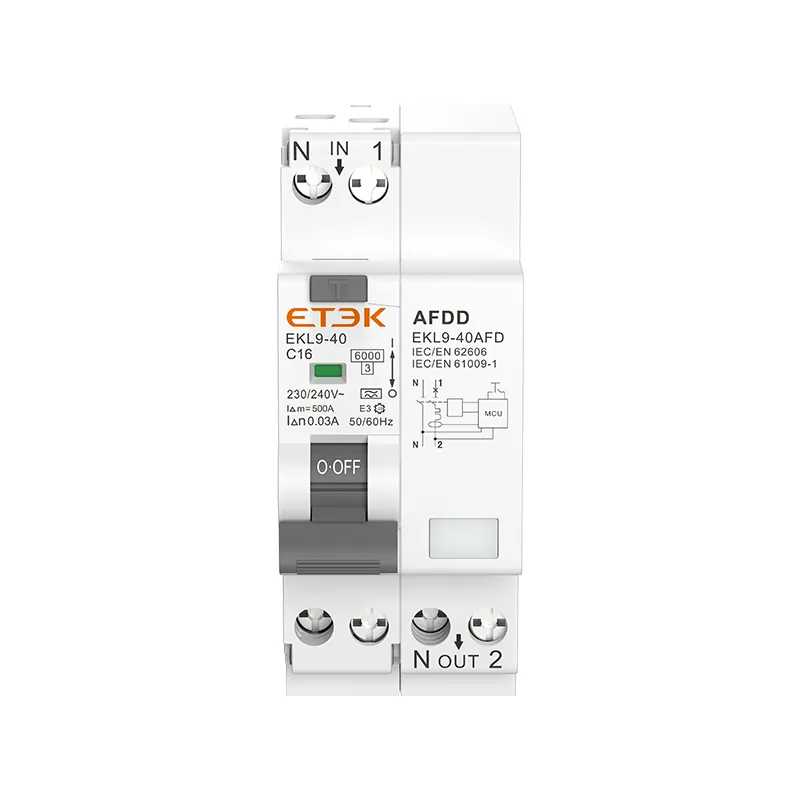

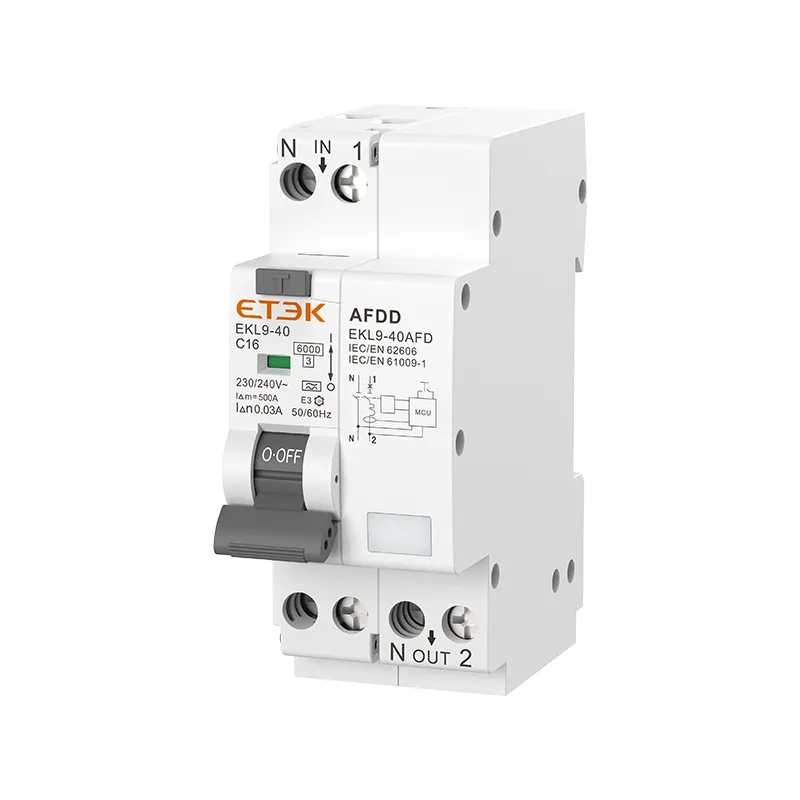

Two Module widths RCBO with Arc fault detection devices

EKL9-40AFD is 1P+N（Pole N could be ON / OFF) arc fault detection devices with integrated RCBO in 6kA breaking capacity, with rated current up to 40A and sensitivity 300mA.

● Standard: IEC61009-1, IEC62026
● Protection: Series and parallel arc fault detection, Combined arc fault detection, short circuit, overload, and earth leakage detectio
● Type of RCBO: AC, A
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: two-pole (one pole + switched neutral)
● Rated Residual Operating Current (IAn): 10, 30, 100, 300mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+40 ºC
● Connection: From top
● Certificates: CE, CB, UKCA


Inquire NOW PDF
Tags: Arc Fault Detection Device

Two Module widths RCBO with Arc fault detection devices

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

EKL9-40AFD is 1P+N（Pole N could be ON/Off arc fault detection devices with integrated RCBO in 6kA breaking capacity, with rated current up to 40A and sensitivity 300mA. LED arc fault indication (During standard operating mode (toggle in ON position), the LED is green. When the toggle is on OFF position or when a fault occurs, the LED is RED), gray test push button to verify the correct functioning of residual current device. In only 36mm width, they provide protection against arc faults, overload short-circuit and earth fault currents.

Technical parameters

Technical Data

Standard IEC61009-1,IEC62606
Mode Electronic
Type of RCBO AC, A
Rated current In 6, 10, 16, 20, 25, 32, 40A
Poles 1P+N(Pole N could be On/Off)
Rated voltage Ue 230/240V~
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated residual operating current(I△n) 10, 30, 100, 300mA
Break time under ≤0.1s
Rated breaking capacity 6,000A
Energy limiting class 3
Rated impulse withstand voltage(1.5/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Thermal release characteristic (1.13-1.45) x In
Magnetic release characteristic B:(3-5) x In, C:(5-10) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -25℃ to +40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable 16mm2
Max. tightening torque 2.5N.m
Installation Mounting on 35mm DIN rail
Connection From top

Dimensions

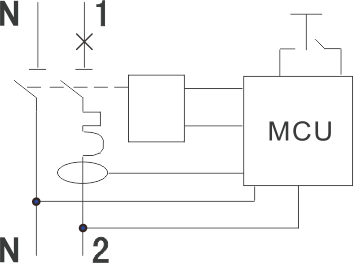

Circuit Diagram





Installation Size

Product selection form

Poles Rated Current (A) B Curve
Sensitivity
10mA 30mA 100mA 300mA
1P+N   Type A
6A EKL9-40AFD-1NB0610A EKL9-40AFD-1NB0630A EKL9-40AFD-1NB06100A EKL9-40AFD-1NB06300A
10A EKL9-40AFD-1NB1010A EKL9-40AFD-1NB1030A EKL9-40AFD-1NB10100A EKL9-40AFD-1NB10300A
16A EKL9-40AFD-1NB1610A EKL9-40AFD-1NB1630A EKL9-40AFD-1NB16100A EKL9-40AFD-1NB16300A
20A EKL9-40AFD-1NB2010A EKL9-40AFD-1NB2030A EKL9-40AFD-1NB20100A EKL9-40AFD-1NB20300A
25A EKL9-40AFD-1NB2510A EKL9-40AFD-1NB2530A EKL9-40AFD-1NB25100A EKL9-40AFD-1NB25300A
32A EKL9-40AFD-1NB3210A EKL9-40AFD-1NB3230A EKL9-40AFD-1NB32100A EKL9-40AFD-1NB32300A
40A EKL9-40AFD-1NB4010A EKL9-40AFD-1NB4030A EKL9-40AFD-1NB40100A EKL9-40AFD-1NB40300A
Rated Current (A) C Curve
Sensitivity
10mA 30mA 100mA 300mA
  Type A
6A EKL9-40AFD-1NC0610A EKL9-40AFD-1NC0630A EKL9-40AFD-1NC06100A EKL9-40AFD-1NC06300A
10A EKL9-40AFD-1NC1010A EKL9-40AFD-1NC1030A EKL9-40AFD-1NC10100A EKL9-40AFD-1NC10300A
16A EKL9-40AFD-1NC1610A EKL9-40AFD-1NC1630A EKL9-40AFD-1NC16100A EKL9-40AFD-1NC16300A
20A EKL9-40AFD-1NC2010A EKL9-40AFD-1NC2030A EKL9-40AFD-1NC20100A EKL9-40AFD-1NC20300A
25A EKL9-40AFD-1NC2510A EKL9-40AFD-1NC2530A EKL9-40AFD-1NC25100A EKL9-40AFD-1NC25300A
32A EKL9-40AFD-1NC3210A EKL9-40AFD-1NC3230A EKL9-40AFD-1NC32100A EKL9-40AFD-1NC32300A
40A EKL9-40AFD-1NC4010A EKL9-40AFD-1NC4030A EKL9-40AFD-1NC40100A EKL9-40AFD-1NC40300A

Download Files

Document Type
Document Name
Size
Product Catalog
EKL9-40AFD_AFDD
760.69KB
Product Certificate
Certificate_of_EKL9-40AFD_(CE+UKCA)
379.27KB
