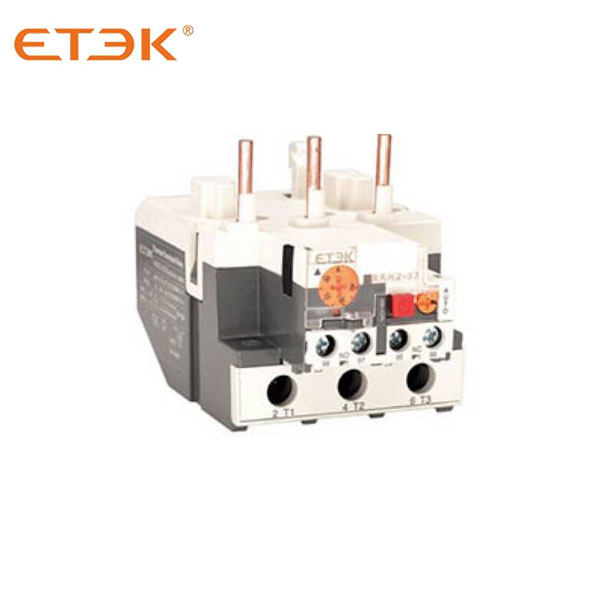

Tripping Class 10 Adjustable Current Thermal Overload Relay

Thermal relays are protective electrical appliances used for overload protection of motors or other electrical equipment and electrical circuits.

Inquire NOW PDF

Tripping Class 10 Adjustable Current Thermal Overload Relay

Inquire NOW PDF

Porduct Overview

Description

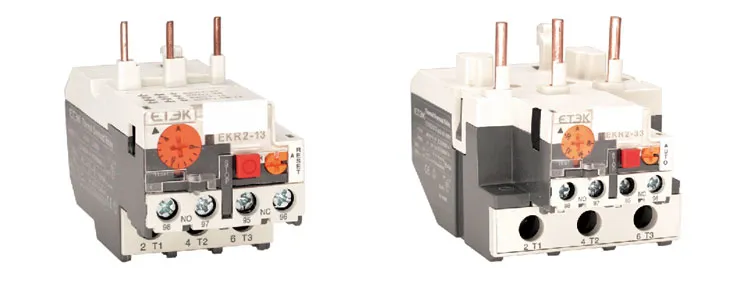

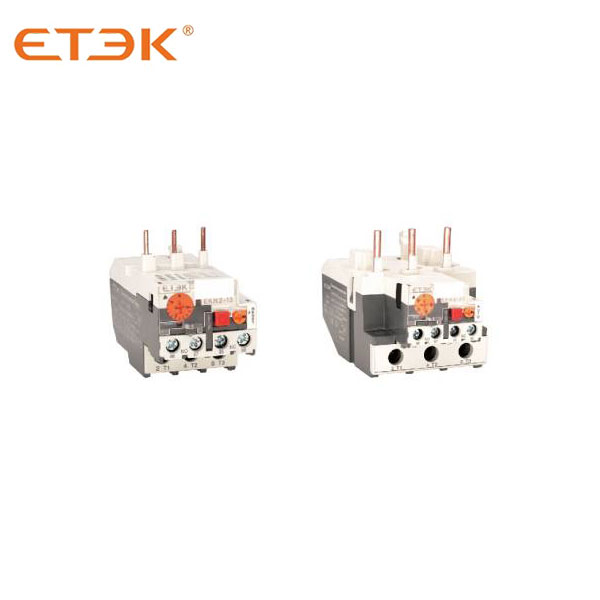

Thermal Overload Relay Overload Relays electronic overload relay electronic thermal overload relay

Overload relays are devices that protect electric motors from overloads and phase failure. When the motor is overloaded, it detects this and terminates the power flow, preventing the motor from overheating and winding damage.

Electric value AC50/60Hz, 690V, 0.1A~630A
Tripping class 10A
Mounting version Plug-in: Available for EKR2-13,23,33
Type Designation

EK

R

2

13

10

Company code

Thermal Overload Relay

Design sequence Number

Frame Size

Code of current rating: Basic specification, expressed with the rated operational current (380V/400V, AC3)

Feature
  1. 3-phase bimetal

  2. Continuously adjustable current settings,

  3. Temperature compensation

  4. Tripping indicator

  5. Test button, when motor needs emergency stops during operation, it is possible to stop the motor
    by cutting off its contact from the magnetic contact with test button. In order to test the operation of thermal overload relay contacts, immediate testing is possible by pulling up test button which changes NO/NC contact.

  6. Stop button, when motor needs emergency stops during operation, it is possible to stop the motor by cutting off its contact from the magnetic contact with stop button.

  7. Manual and automatic reset button

  8. Electrically separated 1N/O plus 1N/C contact

Technical parameters

Technical Data

Protection property
Item Series No. I/In Operating time Tp Test condition
Overload
protection
1 1.05 >2 h Start from cold status
2 1.2 ≤2h Start from heat status,
right after item No.1
3 1.5 ≤2min Start from heat status,
right after item No.1
4 7.2 2s Start from cold status
Phase failure
protection
5 Any two phases Another phases >2 h Start from cold status
1 0.9
6 1.15 0 ≤2 h Start from heat status,
right after item No.5

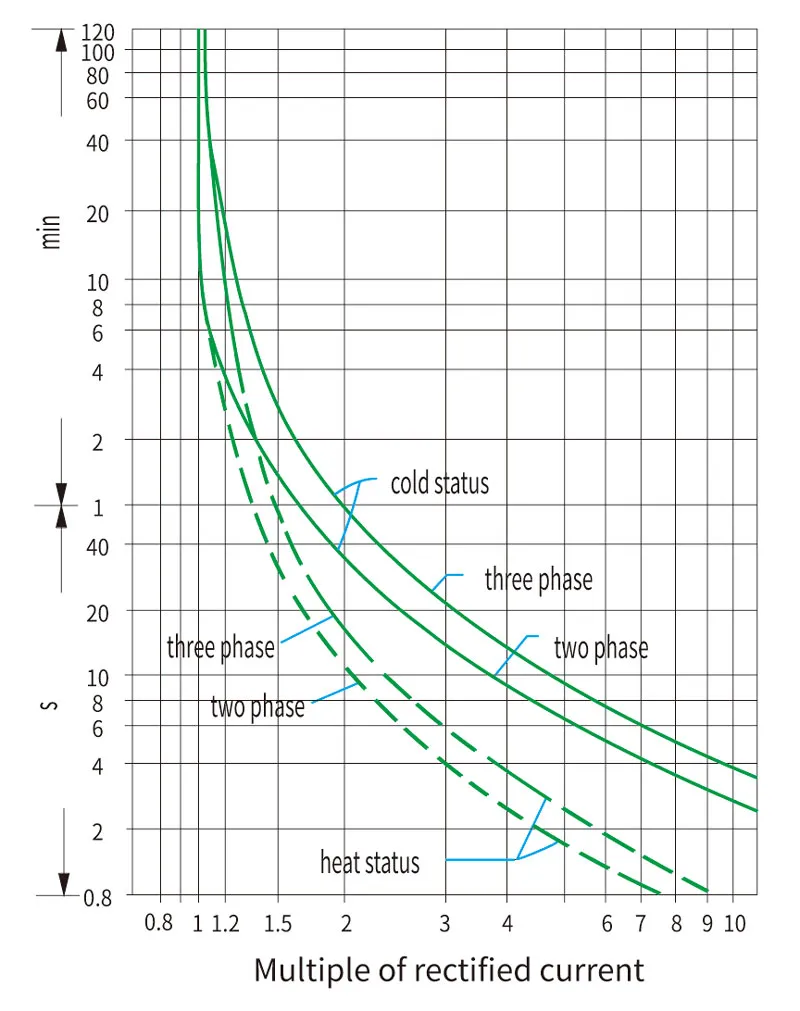

Thermal Overload Relay Curve

Main Technical Data
Phase failure protection function Yes
Automatic & manual reset Yes
Temperature compensation Yes
Tripping indicator Yes
Test & stop pushbutton Yes
Mounting mode Plug-in Yes
Independent Yes
No. of contacts 1N/O+1N/C
Auxiliary contacts Rated current (A) (AC-15 220V) 2.73
Rated current (A) (AC-15 380V) 1.58
Rated current (A) (DC-13 220V) 0.2

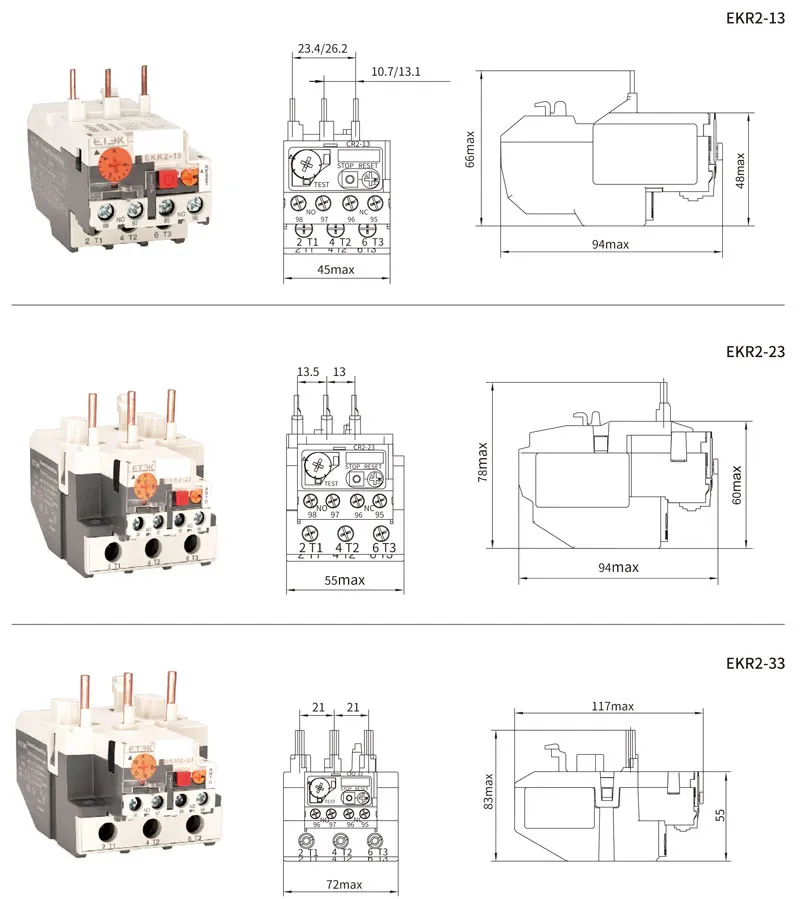

Dimensions

Wiring
Items EKR2-13 EKR2-23 EKR2-33
Cross section area of conductor mm2 Main circuit Single core or stranded wire 1~4 4~10 4~35
Wiring screw M4 M4 M10
Auxiliary circuit Single core or stranded wire 0.5~2.5 0.5~2.5 0.5~2.5
Wiring screw M3.5 M3.5 M3.5



Product selection form

Assembly with contactor
Model of
overload relay
Code Rated current (A) Recommended fuse type
(Recommended RT16)
Contactor Matched
aM gG
EKR2-13 1301 0.1~0.16 0.25 2 EKC1-09
EKC1-12
EKC1-18
EKC1-25
EKC1-32
1302 0.16~0.25 0.5 2
1303 0.25~0.4 1 2
1304 0.4~0.63 1 2
1305 0.63~1 2 4
1306 1~1.6 2 4
1307 1.6~2.5 4 6
1308 2.5~4 6 10
1310 4~6 8 16
1312 5.5~8 12 20
1314 7~10 12 20
1316 9~13 16 25
1321 12~18 20 35
1322 17~25 25 50
EKR2-23 2353 23~32 40 63 EKC1-32
2355 30~40 40 80
EKR2-33 3353 23~32 40 63 EKC1-40
EKC1-50
EKC1-65
EKC1-80
EKC1-95
3355 30~40 40 100
3357 37~50 63 100
3359 48~65 63 100
3361 55~70 80 125
3363 63~80 80 125
3365 80~93 100 160



Reference No. Specification
EKR2-1301 Thermal Overload Relay Current 0.1-0.16A
EKR2-1302 Thermal Overload Relay Current 0.16-0.25A
EKR2-1303 Thermal Overload Relay Current 0.25-0.4A
EKR2-1304 Thermal Overload Relay Current 0.4-0.63A
EKR2-1305 Thermal Overload Relay Current 0.63-1A
EKR2-1306 Thermal Overload Relay Current 1-1.6A
EKR2-1307 Thermal Overload Relay Current 1.6-2.5A
EKR2-1308 Thermal Overload Relay Current 2.5-4A
EKR2-1310 Thermal Overload Relay Current 4-6A
EKR2-1312 Thermal Overload Relay Current 5.5-8A
EKR2-1314 Thermal Overload Relay Current 7-10A
EKR2-1316 Thermal Overload Relay Current 9-13A
EKR2-1321 Thermal Overload Relay Current 12-18A
EKR2-1322 Thermal Overload Relay Current 17-25A

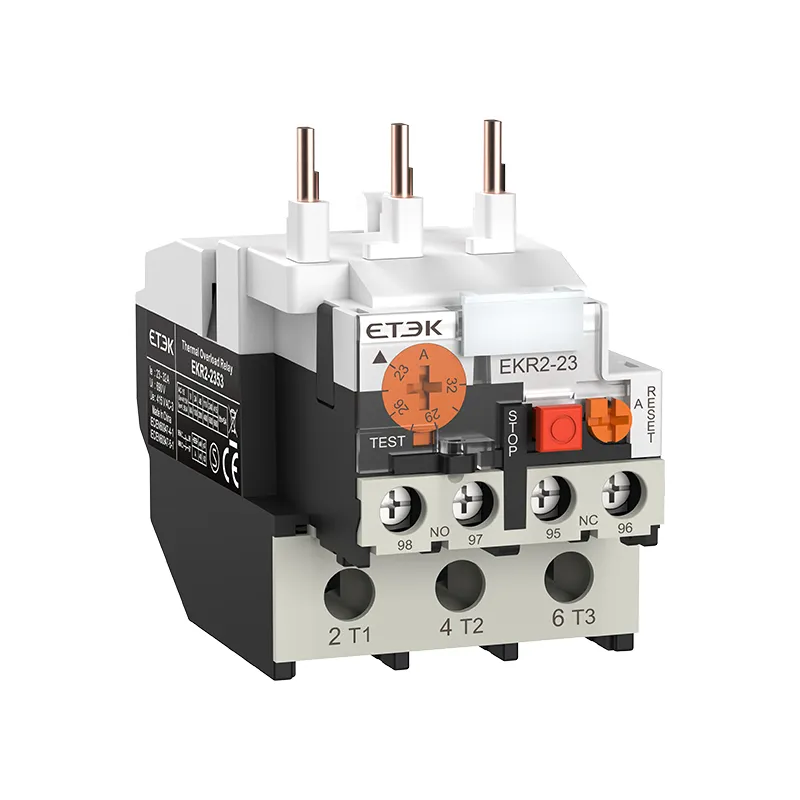

EKR2-2353 Thermal Overload Relay Current 23-32A
EKR2-2355 Thermal Overload Relay Current 30-40A
EKR2-3353 Thermal Overload Relay Current 23-32A

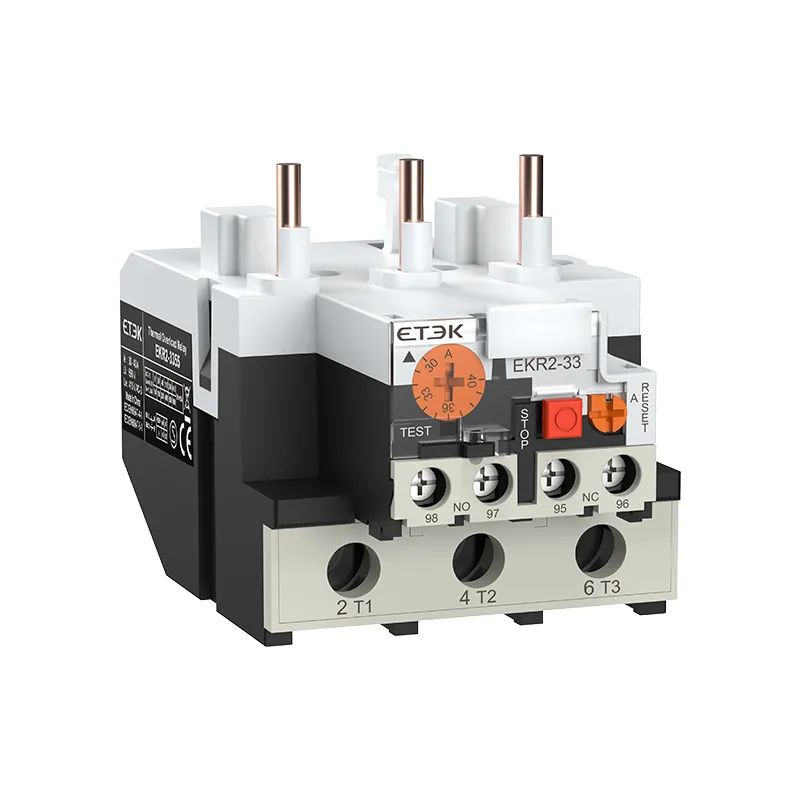

EKR2-3355 Thermal Overload Relay Current 30-40A
EKR2-3357 Thermal Overload Relay Current 37-50A
EKR2-3359 Thermal Overload Relay Current 48-65A
EKR2-3361 Thermal Overload Relay Current 55-70A
EKR2-3363 Thermal Overload Relay Current 63-80A
EKR2-3365 Thermal Overload Relay Current 80-93A
