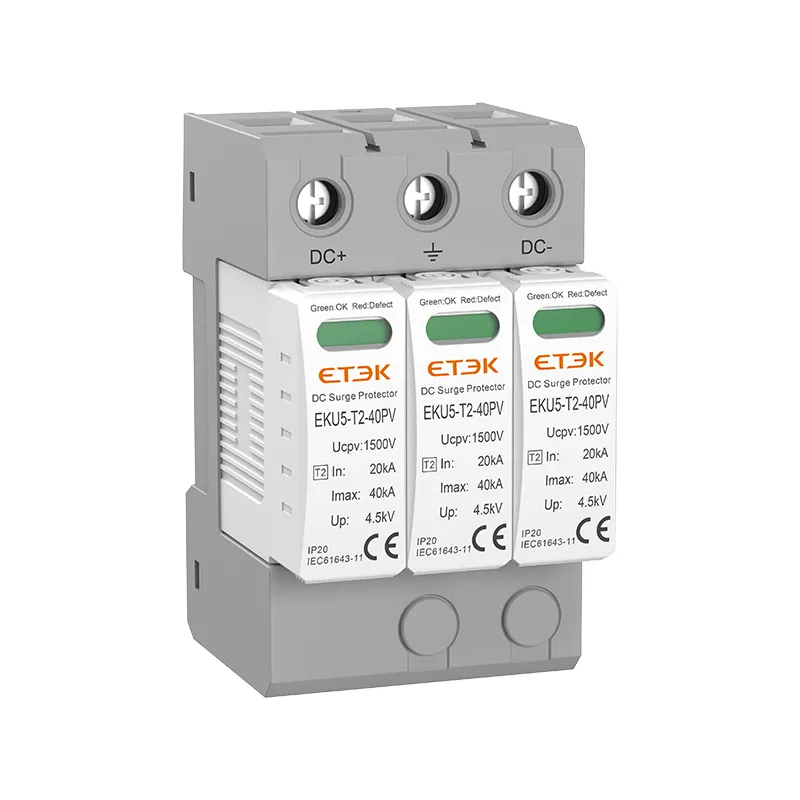

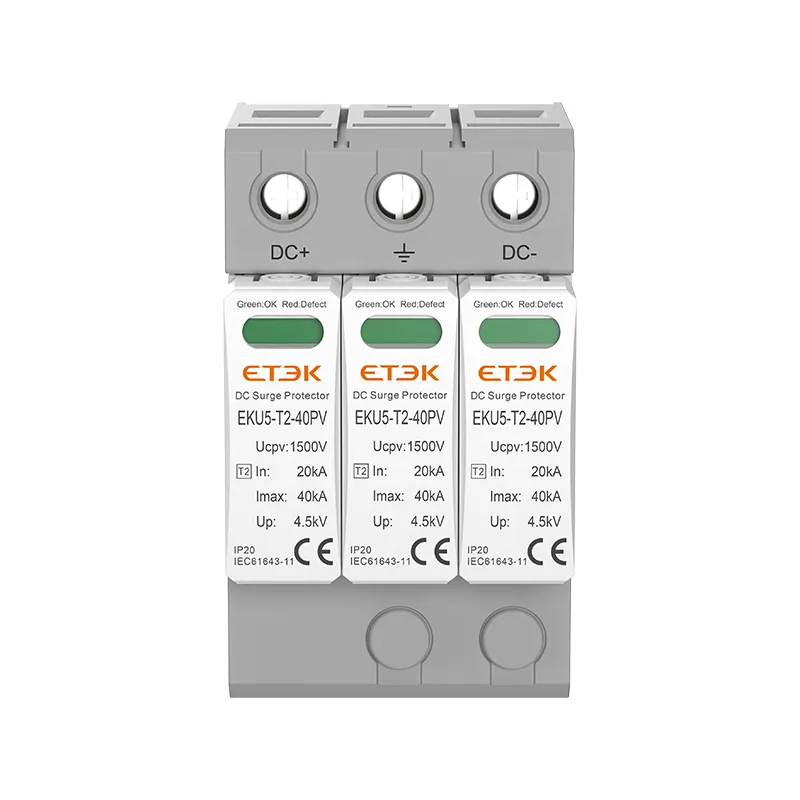

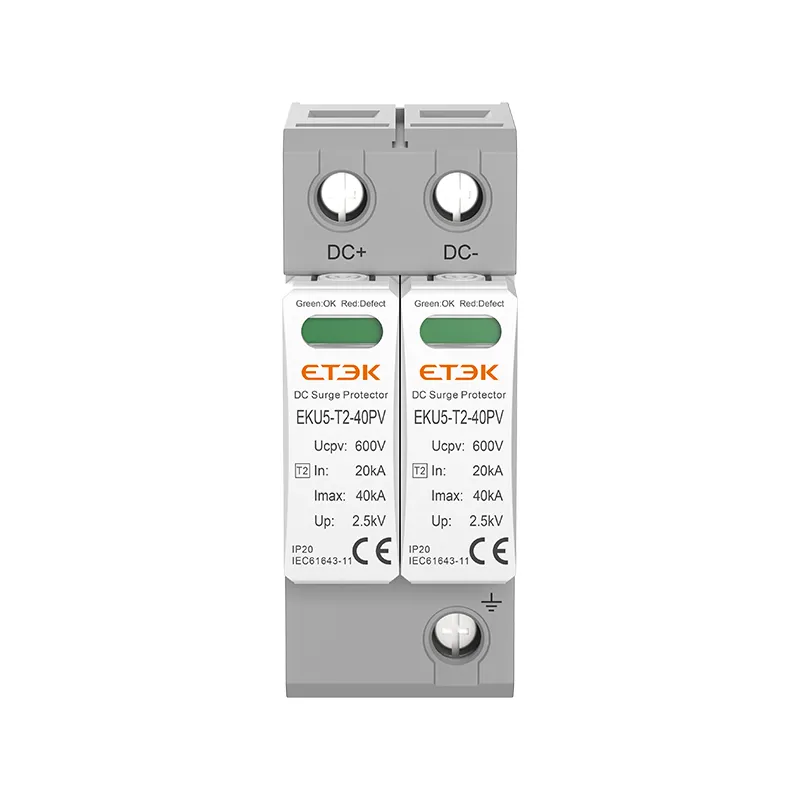

Type 2 DC SPD, Imax 40kA, Class II PV Surge Protective Device

EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

● Standard: IEC/EN 61643-31
● Surge Rating: Imax=40kA (8/20 µs)
● Voltage protection level (Up): <5,2kV
● IEC/EN Category: Class II / Type 2
● Max. continuous operating voltage (Ucpv): 600, 1000,1500V
● Housing: Pluggable Design

Inquire NOW PDF

Type 2 DC SPD, Imax 40kA, Class II PV Surge Protective Device

Inquire NOW PDF

Porduct Overview

Technical parameters

Download Files

Porduct Overview

EKU5-T2-40PV Series is a pluggable multi-pole Type 2 PV Surge Protector (SPD) designed for use in photovoltaic solar applications. It is installed on the DC side to protect terminal devices in a PV system, such as solar panels and inverters, from the effects of lightning surge currents.

Technical parameters

Technical Data

No.of poles		2P(2Mods),3P(3Mods)
Location of Use		String box, Inverter
Mode of protection		(DC+)-PE,(DC-)-PE,(DC+)-(DC-)
Protective elements		High Energy MOV
Maximum continuous operating DC voltage	Ucpv	600V	1000V	1500V
Norminal discharge current (8/20μs)	In	20kA
Total discharge current (8/20μs)	ITotal	40kA
Maximum discharge current (8/20μs)	Imax	40kA
Voltage protection level (2P)	Up	2.6kV	4.0kV	/
Voltage protection level (3P)	Up	/	4.0kV	5.2kV
Response time	tA	≤25ns
Operating temperature range	Tu	-40℃ to +80℃
Operating state/fault indication		Green/Red
Cross-section area (Min.)/(Max.)		4mm²/35mm²
Mounting		35 mm DIN Rail, EN 60715
Enclosure material		Thermal Plastic UL94-V0
Degree of protection		IP20 (built-in)

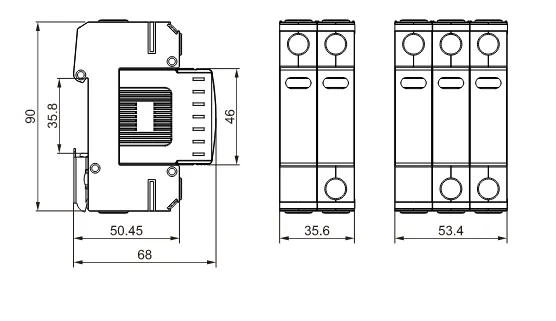

Dimensions

Basic circuit diagram

Installation Size

Product selection form

No. of Poles	Max. Continuous Operating DC Voltage
No. of Poles	600VDC	1000VDC	1500VDC
2Module	EKU5-T2-40PV-2M600	EKU5-T2-40PV-2M1000	-
3Module	-	EKU5-T2-40PV-3M1000	EKU5-T2-40PV-3M1500
With Remote Signaling
2Module	EKU5-T2-40PV-2M600S	EKU5-T2-40PV-2M1000S	-
3Module	-	EKU5-T2-40PV-3M1000S	EKU5-T2-40PV-3M1500S
