PWR-DC1500 auxiliary power supply
PWR-DC1500 auxiliary power supply
PWR-DC1500 auxiliary power supply

Auxiliary Power Supply for Solar PV String Monitoring Device

PWR-DC1500 Auxiliary power supply for solar PV string monitoring device is a power supply device specially used in solar photovoltaic systems.

● Operating voltage: 210VDC~1800VDC
● Power: 5W
● Output voltage and current: 5V/1A
● Maximum working efficiency: 85%
● Insulation voltage: 2000VDC
● Operating temperature: -40℃～+70℃

Inquire NOW PDF

Auxiliary Power Supply for Solar PV String Monitoring Device

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

PWR-DC1500 Auxiliary power supply for solar PV string monitoring device is a power supply device specially used in solar photovoltaic systems. It is used to provide reliable power supply for photovoltaic string monitoring equipment to ensure the normal operation of the monitoring system.

Technical parameters

Technical Data

Model PWR-DC1500
Rated operating voltage 210VDC~1800VDC
Power 5W
Power derating 4%/℃ (above 70℃)
Output voltage and current 5V/1A
Ripple noise ≤100mVp-p
Maximum working efficiency 85%
Power-off time 20ms (TYP)/at Vin:1000VDC
Start-up delay time 500ms (TYP)/at Vin:1000VDC
Dynamic response 25% nominal load jump ±4%/500us
Insulation voltage 2000VDC
Insulation resistance ≥100MΩ
Leakage Current 0.03mA RMS TYP.1200VDC
Safety level Class I
MTBF >215000h @25℃
Operating temperature -40℃～+70℃
Storage temperature -40℃～+105℃

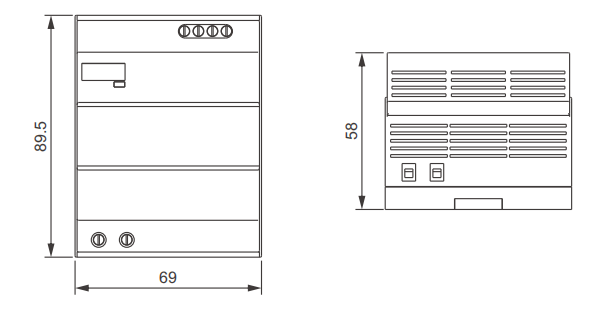

Dimensions

Download Files

Porduct Overview

PWR-DC1500 Auxiliary power supply for solar PV string monitoring device is a power supply device specially used in solar photovoltaic systems. It is used to provide reliable power supply for photovoltaic string monitoring equipment to ensure the normal operation of the monitoring system.

Technical parameters

Download Files
