1000V MC4 Solar Cable Connector

PV-EK02 MC4 Cable Connector is a durable and secure male-female connector designed for solar power applications, ensuring reliable connections between solar panels and components for efficient energy generation.

● Standard: IEC60068-2-52
● Rated Voltage: 1000V DC
● Rated Current: ≤45A
● Ambient Temperature Range: -40...+90 ºC
● Degree of Protection : IP67
● Contact Material : Copper with Silver Platting
● Insulation Material : PC/PPO
● Locking System : Snap-in Type
● Cable Size: 2.5, 4, 6 Sqmm
● Protection Class : Class-II

Inquire NOW PDF

Tags: MC4 Solar DC Connector Solar Panel Cable Connector 1000VDC PV Connector

1000V MC4 Solar Cable Connector

Inquire NOW PDF

Porduct Overview

Technical parameters

Download Files

Porduct Overview

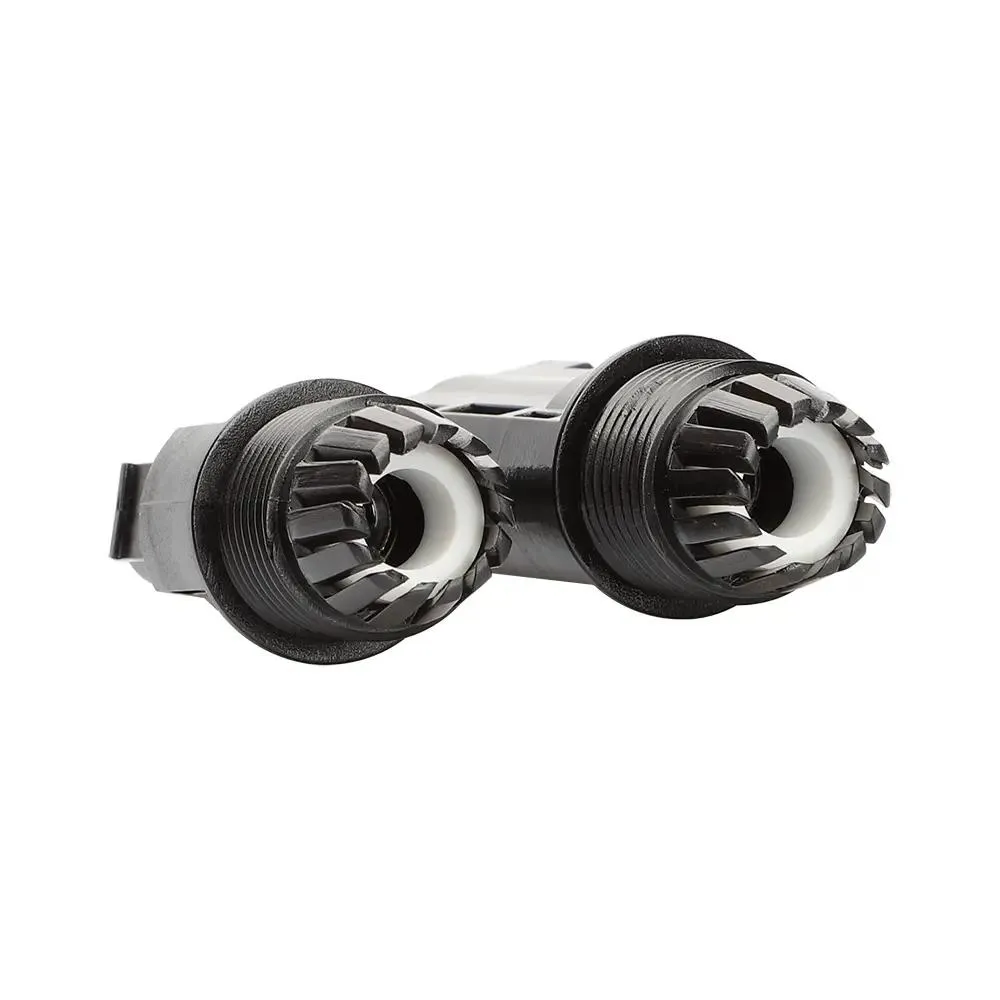

PV-EK02 MC4 Cable Connector is a durable and secure male-female connector designed for solar power applications, ensuring reliable connections between solar panels and components for efficient energy generation.

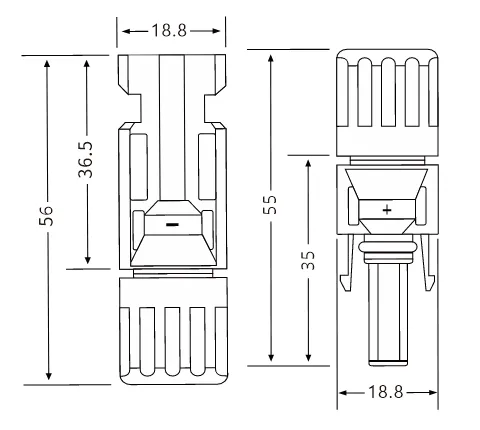

PV-EK02 and PV-EK01 are only different in the style of fastening nuts.

Technical parameters

Technical Data

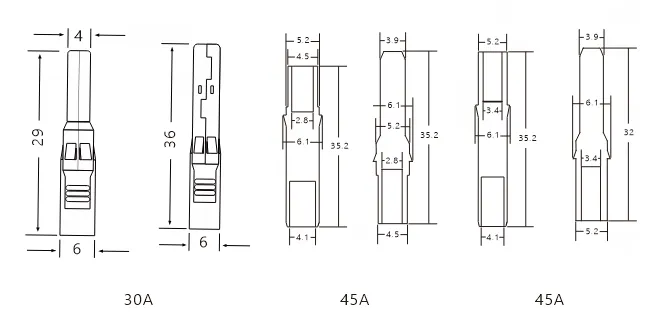

Connector system	Ф2.5mm, Ф4mm, Ф6mm
Rated voltage	1000V DC
Rated current	30A (2.5mm², 4mm², 6mm²;14AWG, 12AWG, 10AWG)
Rated current	45A (4mm²,6mm²; 12AWG, 10AWG )
Test voltage	6kV(50Hz,1min.)
Ambient temperature range	-40°C... +90°C
Upper limiting temperature	+105°C
Degree of protection	IP67
Contact resistance of plug connectors	0.5mΩ
Safety class	Ⅱ

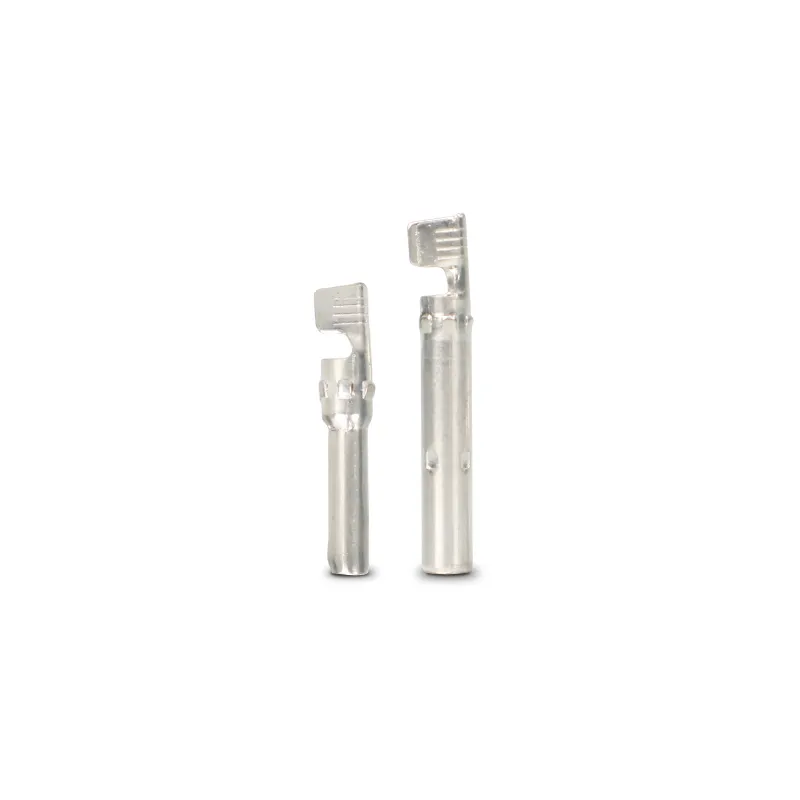

Contact material	Messing, versant Copper Alloy, tin plated
Insulation material	PC/PPO
Locking system	Snap-in
Flame class	UL-94-V0
