1000VMC4 Solar Cable Connector

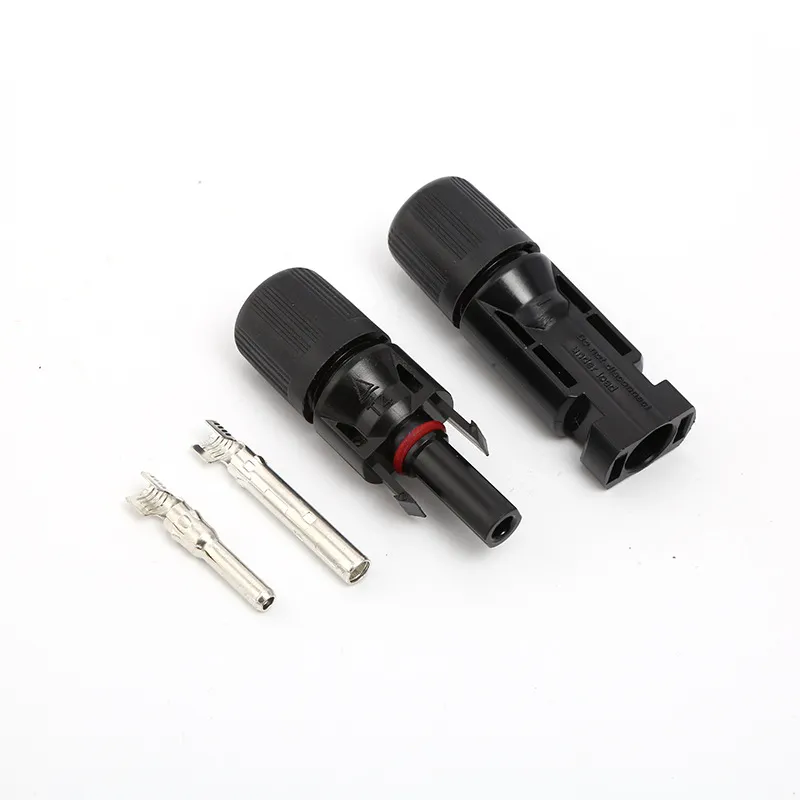

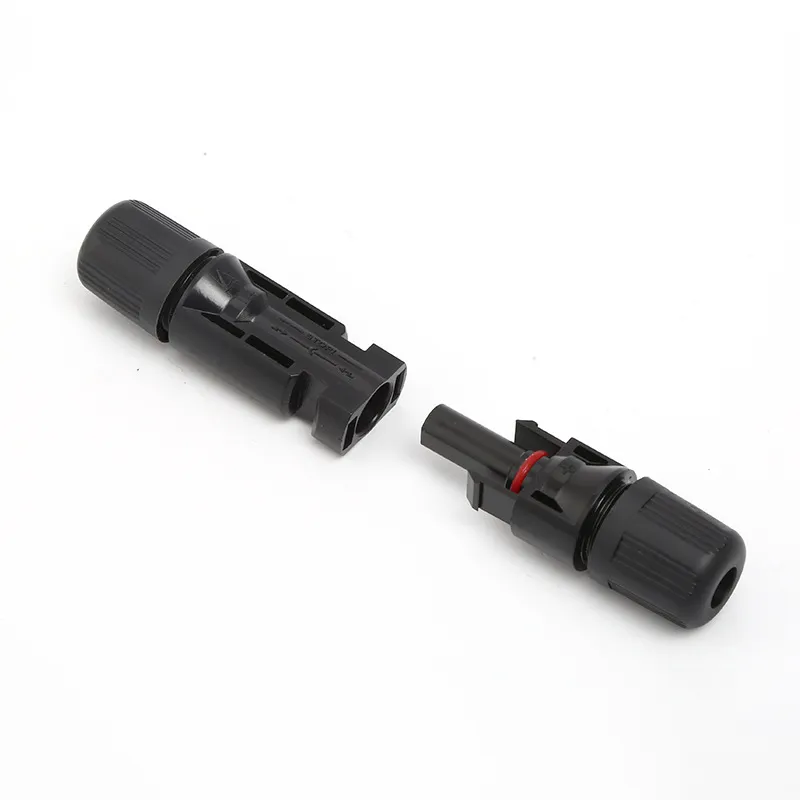

PV-EK01 MC4 Cable Connector is a durable and secure male-female connector designed for solar power applications, ensuring reliable connections between solar panels and components for efficient energy generation.

● Standard: IEC60068-2-52
● Rated Voltage: 1000V DC
● Rated Current: ≤45A
● Ambient Temperature Range: -40...+90 ºC
● Degree of Protection : IP67
● Contact Material : Copper with Silver Platting
● Insulation Material : PC/PPO
● Locking System : Snap-in Type
● Cable Size: 2.5, 4, 6 Sqmm
●  Protection Class : Class-II

Inquire NOW PDF
Tags: 1000VDC PV Connector Solar Panel Cable Connector MC4 Solar DC Connector

1000VMC4 Solar Cable Connector

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

PV-EK01 MC4 Cable Connector is a durable and secure male-female connector designed for solar power applications, ensuring reliable connections between solar panels and components for efficient energy generation.

Technical parameters

Technical Data

Connector system

Ф2.5mm, Ф4mm, Ф6mm

Rated voltage

1000V DC

Rated current

30A (2.5mm2, 4mm2, 6mm2;14AWG, 12AWG, 10AWG)
45A (4mm2,6mm2; 12AWG, 10AWG )

Test voltage

6kV(50Hz,1min.)

Ambient temperature range

-40°C... +90°C

Upper limiting temperature

+105°C

Degree of protection

IP67
Contact resistance of plug connectors

0.5mΩ

Safety class

Ⅱ

Contact material

Messing, versant Copper Alloy, tin plated

Insulation material

PC/PPO

Locking system

Snap-in

Flame class

UL-94-V0

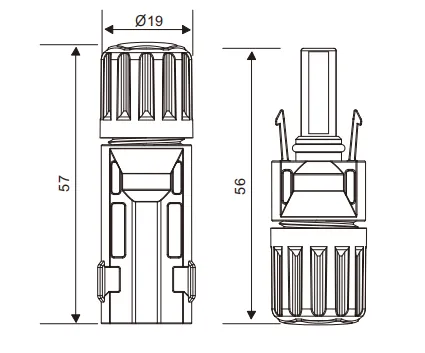

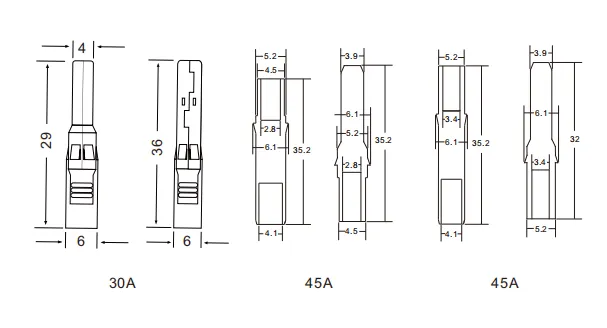

Dimensions
