Name: Residual Current Circuit Breaker (RCCB)
Brand: ETEK
SKU: 01324
Rating: 4.1 (712 reviews)

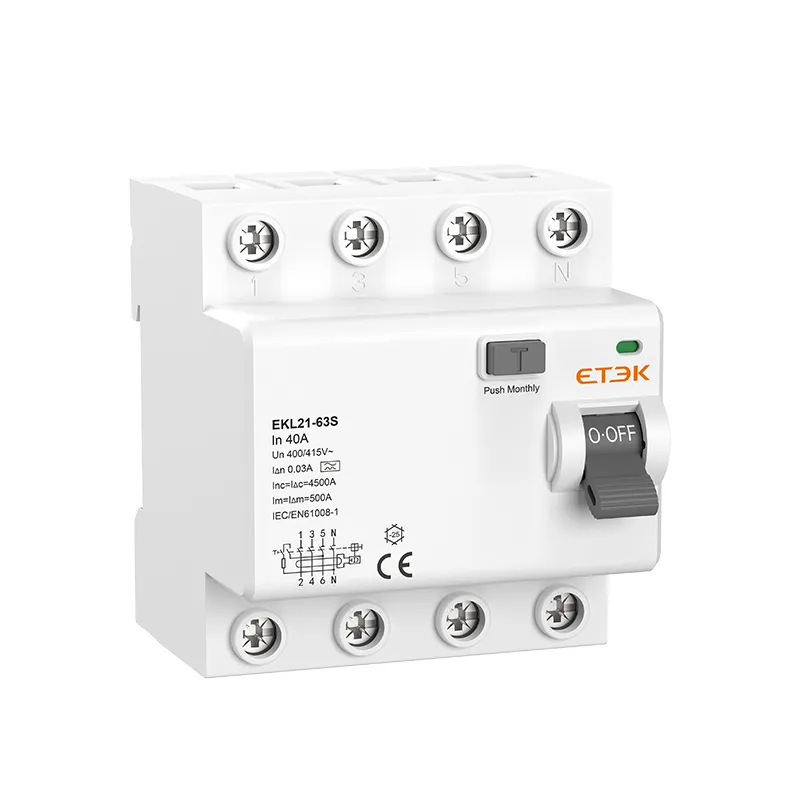

Residual Current Circuit Breaker (RCCB)

EKL21-63S is a cost-effective Residual Current Circuit Breaker (RCCB) engineered by ETEK Electric to meet the specific needs of Central Asia and South American markets. This versatile device provides reliable protection against electrical leakage currents in both residential and commercial settings, ensuring the safety of people and equipment.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 16, 25, 32, 40, 63A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 10, 30, 100, 300mA
● Rated short-circuit breaking capacity: 4.5/6kA
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Operating mechanism: Plastic structure
● Marketing: Central Asia, South America

Inquire NOW PDF

Porduct Overview

EKL21-63S residual current circuit breaker (RCCB) is a cost-effective circuit protection solution specifically designed for the Central Asia and South American markets. It is suitable for both residential and commercial circuits, supporting 1P+N 240V rated voltage and 3P+N 415V rated voltage, with a rated current of up to 63A. In the event of a risk of electric shock or if the ground fault current exceeds the safety threshold, this RCCB can swiftly disconnect the power supply to ensure unparalleled safety. It can be used in conjunction with the DZ47-63S miniature circuit breaker produced by ETEK Electric to achieve comprehensive circuit protection.

Technical parameters

Technical Data

Standard	IEC/EN61008-1
Protection	Ground fault
Type of trip	Electro-magnetic
Type of protection (electric leakage)	AC, A, G, S
No. of poles	2P(1P+N), 4P(3P+N)
Rated current In	16,25,32,40,63A
Rated sensitivity currents I△n	10,30,100,300mA
Residual current off-time under I△n	≤0.1s
Rated residual making and breaking capacity(I△m)	500A(In≤50A),10In (In>50A)
Rated voltage Ue	1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency	50/60Hz
Rated breaking capacity	4500A, 6000A
SCPD fuse	4.5kA/6kA
Rated impulse withstands voltage (1.5/50) Uimp	4000V
Dielectric test voltage at ind. Freq. for 1min	2.5kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-25℃ to +55℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	16mm²
Max. tightening torque	2N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom
Operating mechanism	Plastic structure

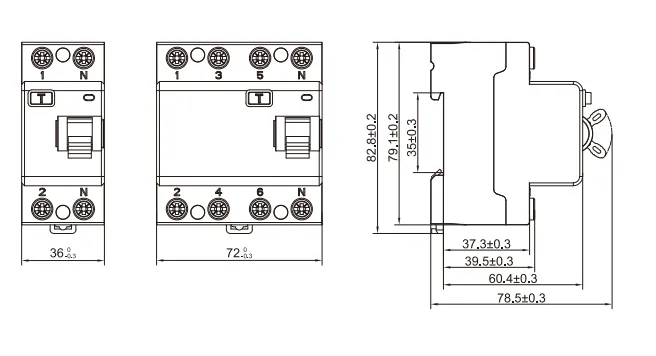

Dimensions

Download Files

Document Type

Document Name

Size

Product Catalog

EKL21-63S_Economic_RCCB

484.09KB
