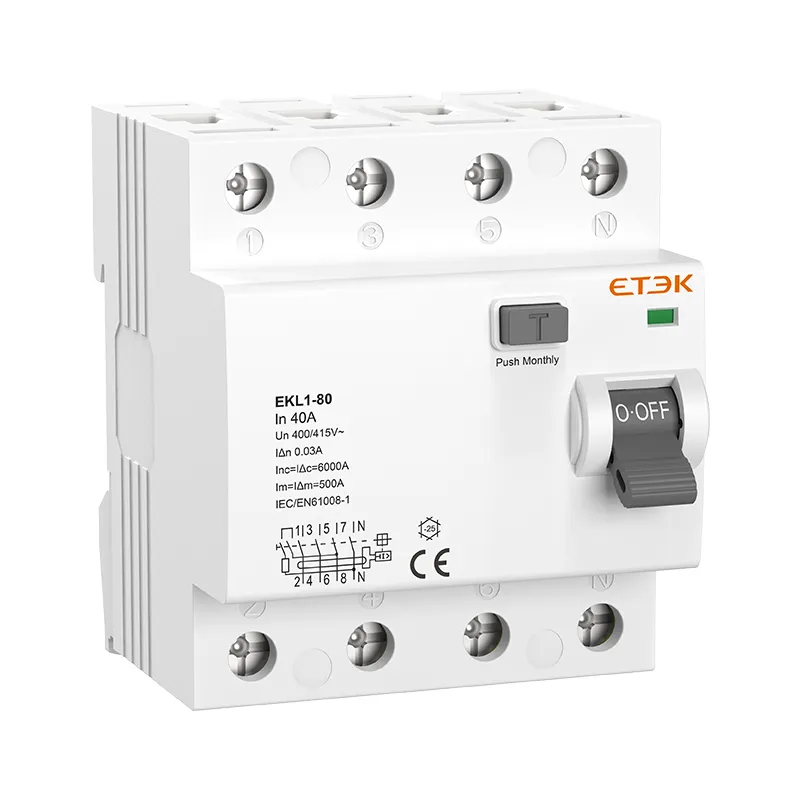

ETEK RCCB EKL1-80
ETEK RCCB EKL1-80
ETEK RCCB EKL1-80
ETEK RCCB EKL1-80
ETEK RCCB EKL1-80

Residual Current Circuit Breaker (RCCB)

EKL1-80(H) is an RCCB suitable for a rated voltage of 240V (1P+N) or 415V (3P+N), with a rated current of up to 80A. It is designed to quickly cut off the faulty power supply in the event of a person being electrocuted or the grid leakage current exceeding the specified value, to protect the safety of personnel and electrical equipment.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 25~80A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Ambient air temperature: -25...+40 ºC
● Certificates: CB, CE
● Marketing: Central Asia, Russia, South America

Inquire NOW PDF
Tags: Residual Current Circuit Breaker Residual current device

Residual Current Circuit Breaker (RCCB)

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKL1-80 suitable for circuits with rated voltage of 240V for two poles, 415V for four poles, and rated current up to 80A. When the personal electric shock or the leakage current of the power grid exceeds the specified value, the RCCB can quickly cut off the faulty power supply in a very short time to protect the safety of the person and electrical equipment.

Technical parameters

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

AC, A, G, S

No. of poles

2P(1P+N), 4P(3P+N), N Pole on right
Rated current In 25,40,63,80A

Rated sensitivity currents I△n

30,100,300mA

Residual current off-time under I△n

≤0.1s

Rated residual making and breaking capacity(I△m)

500A(In≤50A),10In (In>50A)
Rated voltage Ue

1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency 50/60Hz
Rated breaking capacity
 6,000A, 10,000A

SCPD fuse

 6kA (EKL1-80),10kA (EKL1-80H)
Rated impulse withstands voltage (1.5/50) Uimp 4000V
Dielectric test voltage at ind. Freq. for 1min 2.5kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature

-25℃ to 40℃, Max.95% humidity
Terminal connection type

Cable/Pin-type busbar/U-type busbar

Max. terminal size for cable

 25mm2

Max. tightening torque

 2.5N.m

Installation

Mounting on 35mm DIN rail
Connection

From top and bottom

Dimensions

Circuit Diagram

ETEK RCCB EKL1-80(H)Circuit Diagram

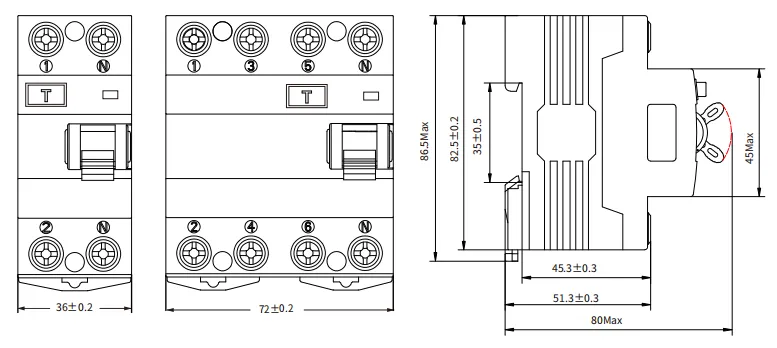

Installation size

ETEK RCCB EKL1-80(H) Size

Product selection form

AC Type
Breaking capacity Poles Rated Current(A) Sensitivity
6KA     30mA 100mA 300mA
1P+N 25A EKL1-80-1N2530 EKL1-80-1N25100 EKL1-80-1N25300
40A EKL1-80-1N4030 EKL1-80-1N40100 EKL1-80-1N40300
63A EKL1-80-1N6330 EKL1-80-1N63100 EKL1-80-1N63300
80A EKL1-80-1N8030 EKL1-80-1N80100 EKL1-80-1N80300
3P+N 25A EKL1-80-3N2530 EKL1-80-3N25100 EKL1-80-1N25300
40A EKL1-80-3N4030 EKL1-80-3N40100 EKL1-80-1N40300
63A EKL1-80-3N6330 EKL1-80-3N63100 EKL1-80-1N63300
80A EKL1-80-3N8030 EKL1-80-3N80100 EKL1-80-1N80300
10KA 1P+N 25A EKL1-80H-1N2530 EKL1-80H-1N25100 EKL1-80H-1N25300
40A EKL1-80H-1N4030 EKL1-80H-1N40100 EKL1-80H-1N40300
63A EKL1-80H-1N6330 EKL1-80H-1N63100 EKL1-80H-1N63300
80A EKL1-80H-1N8030 EKL1-80H-1N80100 EKL1-80H-1N80300
3P+N 25A EKL1-80H-3N2530 EKL1-80H-3N25100 EKL1-80H-3N25300
40A EKL1-80H-3N4030 EKL1-80H-3N40100 EKL1-80H-3N40300
63A EKL1-80H-3N6330 EKL1-80H-3N63100 EKL1-80H-3N63300
80A EKL1-80H-3N8030 EKL1-80H-3N80100 EKL1-80H-3N80300
A Type
Breaking capacity Poles Rated Current(A) Sensitivity
      30mA 100mA 300mA
6KA 1P+N 25A EKL1-80-1N2530A EKL1-80-1N25100A EKL1-80-1N25300A
40A EKL1-80-1N4030A EKL1-80-1N40100A EKL1-80-1N40300A
63A EKL1-80-1N6330A EKL1-80-1N63100A EKL1-80-1N63300A
80A EKL1-80-1N8030A EKL1-80-1N80100A EKL1-80-1N80300A
3P+N 25A EKL1-80-3N2530A EKL1-80-3N25100A EKL1-80-3N25300A
40A EKL1-80-3N4030A EKL1-80-3N40100A EKL1-80-3N40300A
63A EKL1-80-3N6330A EKL1-80-3N63100A EKL1-80-3N63300A
80A EKL1-80-3N8030A EKL1-80-3N80100A EKL1-80-3N80300A
10KA 1P+N 25A EKL1-80H-1N2530A EKL1-80H-1N25100A EKL1-80H-1N25300A
40A EKL1-80H-1N4030A EKL1-80H-1N40100A EKL1-80H-1N40300A
63A EKL1-80H-1N6330A EKL1-80H-1N63100A EKL1-80H-1N63300A
80A EKL1-80H-1N8030A EKL1-80H-1N80100A EKL1-80H-1N80300A
3P+N 25A EKL1-80H-3N2530A EKL1-80H-3N25100A EKL1-80H-3N25300A
40A EKL1-80H-3N4030A EKL1-80H-3N40100A EKL1-80H-3N40300A
63A EKL1-80H-3N6330A EKL1-80H-3N63100A EKL1-80H-3N63300A
80A EKL1-80H-3N8030A EKL1-80H-3N80100A EKL1-80H-3N80300A

Download Files

Document Type
Document Name
Size
Product Catalog
EKL1-80_RCCB
474.51KB
Product Certificate
Certificate_of_EKL1-80_(CE+CB)
934.72KB
