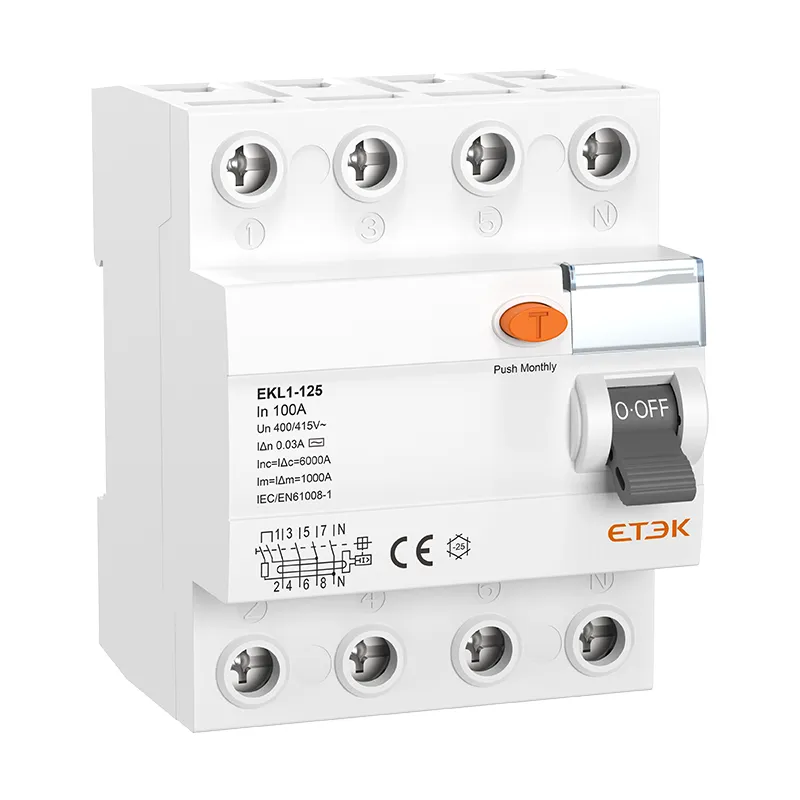

ETEK RCCB EKL1-125H
ETEK RCCB EKL1-125H
ETEK RCCB EKL1-125H
ETEK RCCB EKL1-125H
ETEK RCCB EKL1-125H

High-Performance Residual Current Circuit Breaker (RCCB)

EKL1-125 RCCB (Residual Current Circuit Breaker) is a high-performance leakage protection device designed for applications with higher currents.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 80~125A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Rated short-circuit breaking capacity: 10kA
● Ambient air temperature: -25...+55 ºC
● Connection: From top and bottom
● Certificates: CB, CE

Inquire NOW PDF
Tags: Residual Current Circuit Breaker Residual current device

High-Performance Residual Current Circuit Breaker (RCCB)

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

The EKL1-125 solving the problem of RCCB high current specifications is an important supplement to leakage protection products with working current less than or equal to 63A. This move not only improves the performance of leakage protection equipment, but also expands its application range, enabling it to better meet the safety needs of various electrical equipment and systems. By adding support for large current specifications, the EKL1-125 RCCB product can more effectively cope with high-load current environments, ensuring that reliable leakage protection can still be provided when the current exceeds the conventional specifications. This not only improves the safety of electrical systems, but also provides users with more choices and flexibility, allowing leakage protection equipment to play its due role in various industrial and civil occasions.

Choose the EKL1-125 for uncompromising, efficient residual current protection that meets and exceeds the requirements of modern, high-power electrical systems. Trust ETEK Electric to deliver the reliability, performance, and safety your industrial-grade electrical installations demand.

Technical parameters

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

AC, A, G, S

No. of poles

2P(1P+N), 4P(3P+N), N Pole on right
Rated current In 80, 100, 125A

Rated sensitivity currents I△n

30,100,300mA

Residual current off-time under I△n

≤0.1s

Rated residual making and breaking capacity(I△m)

10In (In>50A)
Rated voltage Ue

1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency 50/60Hz

Rated breaking capacity

 EKL1-125: 6,000A, EKL1-125H: 10,000A

SCPD fuse

 EKL1-125=6kA, EKL1-125H=10kA
Rated impulse withstands voltage (1.5/50) Uimp 4000V
Dielectric test voltage at ind. Freq. for 1min 2kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature

-25℃ to +55℃, Max.95% humidity
Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max. terminal size for cable

 50mm2

Max. tightening torque

 2.5N.m

Installation

Mounting on 35mm DIN rail
Connection

From top and bottom

Dimensions

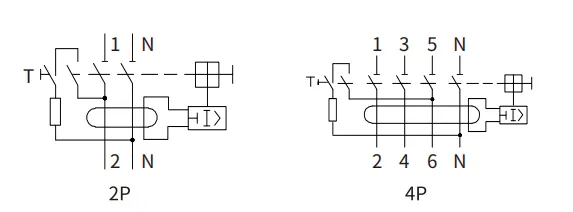

Circuit Diagram

etek rccb ekl1-125h circuit diagram

Installation size

rccb ekl1-125h size

Product selection form

Breaking Capacity=6kA
AC Type Poles Rated Current(A) Sensitivity
  30mA 100mA 300mA
1P+N 80A EKL1-125-1N8030 EKL1-125-1N80100 EKL1-125-1N80300
100A EKL1-125-1N10030 EKL1-125-1N100100 EKL1-125-1N100300
125A EKL1-125-1N12530 EKL1-125-1N125100 EKL1-125-1N125300
3P+N 80A EKL1-125-3N8030 EKL1-125-3N80100 EKL1-125-3N80300
100A EKL1-125-3N10030 EKL1-125-3N100100 EKL1-125-3N100300
125A EKL1-125-3N12530 EKL1-125-3N125100 EKL1-125-3N125300
A Type 1P+N 80A EKL1-125-1N8030A EKL1-125-1N80100A EKL1-125-1N80300A
100A EKL1-125-1N10030A EKL1-125-1N100100A EKL1-125-1N100300A
125A EKL1-125-1N12530A EKL1-125-1N125100A EKL1-125-1N125300A
3P+N 80A EKL1-125-3N8030A EKL1-125-3N80100A EKL1-125-3N80300A
100A EKL1-125-3N10030A EKL1-125-3N100100A EKL1-125-3N100300A
125A EKL1-125-3N12530A EKL1-125-3N125100A EKL1-125-3N125300A
Breaking Capacity=10kA
AC Type Poles Rated Current(A) Sensitivity
30mA 100mA 300mA
1P+N 80A EKL1-125H-1N8030 EKL1-125H-1N80100 EKL1-125H-1N80300
100A EKL1-125H-1N10030 EKL1-125H-1N100100 EKL1-125H-1N100300
125A EKL1-125H-1N12530 EKL1-125H-1N125100 EKL1-125H-1N125300
3P+N 80A EKL1-125H-3N8030 EKL1-125H-3N80100 EKL1-125H-3N80300
100A EKL1-125H-3N10030 EKL1-125H-3N100100 EKL1-125H-3N100300
125A EKL1-125H-3N12530 EKL1-125H-3N125100 EKL1-125H-3N125300
A Type 1P+N 80A EKL1-125H-1N8030A EKL1-125H-1N80100A EKL1-125H-1N80300A
100A EKL1-125H-1N10030A EKL1-125H-1N100100A EKL1-125H-1N100300A
125A EKL1-125H-1N12530A EKL1-125H-1N125100A EKL1-125H-1N125300A
3P+N 80A EKL1-125H-3N8030A EKL1-125H-3N80100A EKL1-125H-3N80300A
100A EKL1-125H-3N10030A EKL1-125H-3N100100A EKL1-125H-3N100300A
125A EKL1-125H-3N12530A EKL1-125H-3N125100A EKL1-125H-3N125300A

Download Files

Document Type
Document Name
Size
Product Catalog
EKL1-125_RCCB
472.87KB

Porduct Overview

The EKL1-125 solving the problem of RCCB high current specifications is an important supplement to leakage protection products with working current less than or equal to 63A. This move not only improves the performance of leakage protection equipment, but also expands its application range, enabling it to better meet the safety needs of various electrical equipment and systems. By adding support for large current specifications, the EKL1-125 RCCB product can more effectively cope with high-load current environments, ensuring that reliable leakage protection can still be provided when the current exceeds the conventional specifications. This not only improves the safety of electrical systems, but also provides users with more choices and flexibility, allowing leakage protection equipment to play its due role in various industrial and civil occasions.

Choose the EKL1-125 for uncompromising, efficient residual current protection that meets and exceeds the requirements of modern, high-power electrical systems. Trust ETEK Electric to deliver the reliability, performance, and safety your industrial-grade electrical installations demand.

Technical parameters

Download Files

Recommend Products

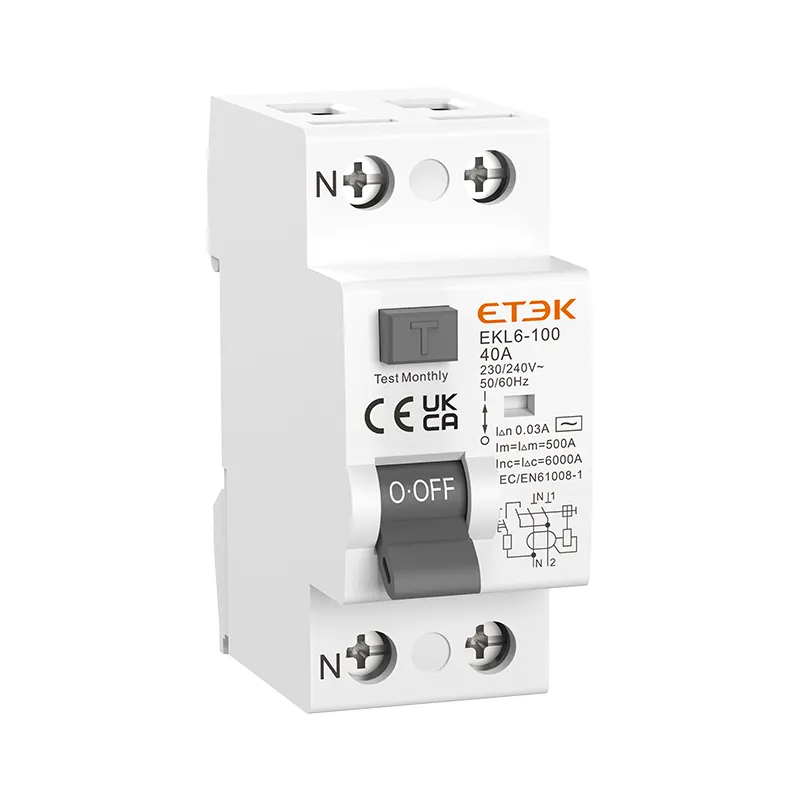

ETEK-EKL6-100

Magnetic Type Residual Current Circuit Breaker (RCCB)

Inquire
ETEK RCCB EKL1-80

Residual Current Circuit Breaker (RCCB)

Inquire

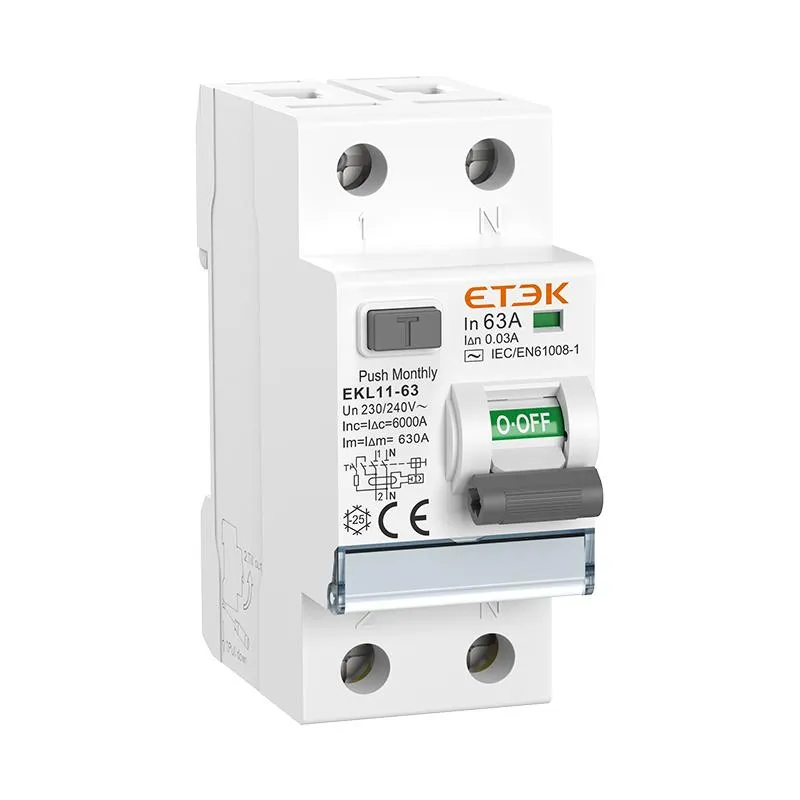

ETEK-RCCB-EKL11-63
