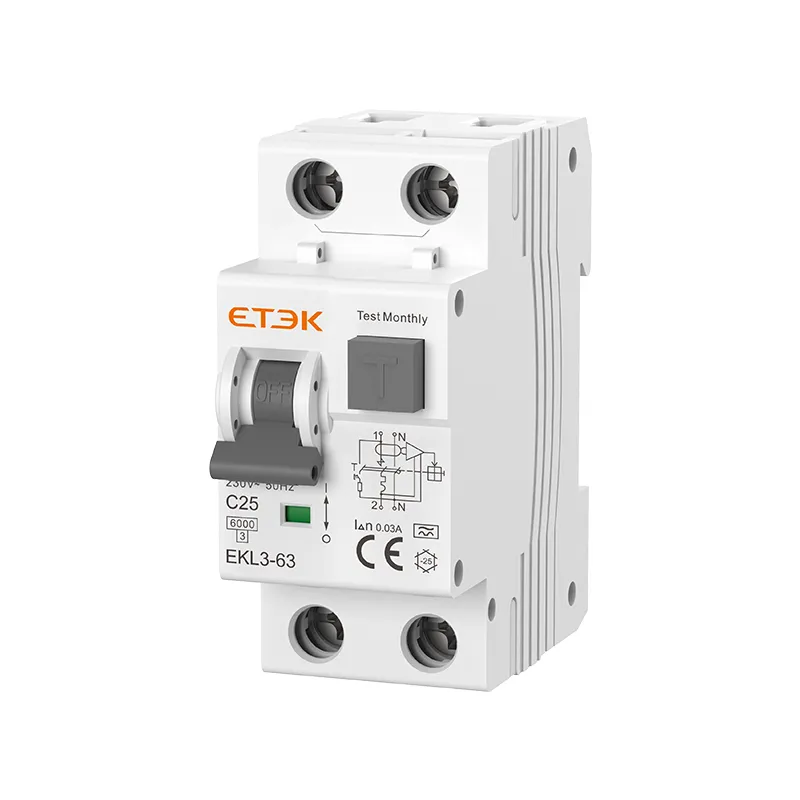

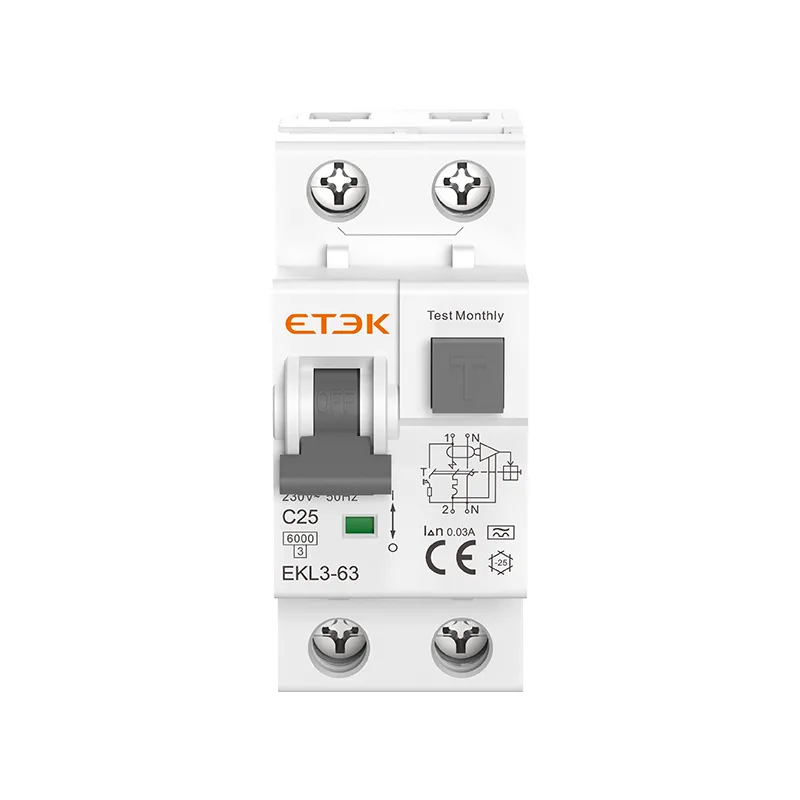

Electronic Type Residual Current Circuit Breaker with Overcurrent Protection (RCBO)

EKL3-63 is a high-performance RCBO designed to meet the demanding requirements of industrial and commercial electrical systems. It provides superior protection against a range of electrical faults, ensuring the safety of personnel and equipment. With its 63A capacity, it's ideal for applications with high power demands.

● Standard: IEC61009-1
● Type: AC, A
● Rated current: 6~63A
● Rated voltage: 230/240~
● Number of poles: Two Poles
● Rated Residual Operating Current (IAn): 10,30,100, 300mA
● Rated short-circuit breaking capacity: 6kA, 10kA
● Tripping curve: B, C
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB

Inquire NOW PDF
Tags: 40A RCBO RCD with Overcurrent Protection Electronic Type RCBO

Electronic Type Residual Current Circuit Breaker with Overcurrent Protection (RCBO)

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKL3-63 "Phase line + neutral + leakage "protection circuit breaker is applied to the single-phase residential circuit of 50Hz or 60Hz, rated voltage 230V, to protect leakage, civil electrical overload and short circuit. The product is provided with many advantages such as small size, high breaking capacity, cutting off zero-line, live line at the same time, and leakage protecting in the case of reverse wiring live line. This product complies with IEC61009 standards, with advanced international technology.

Technical parameters

Technical Data

Standard
IEC/EN61009-1
Protection
Ground fault, Overcurrent and short circuit, Over voltage (selectable)
Type of trip
Ground fault: Electronic
Overload and short circuit: Thermo-magnetic
Type of protection (electric leakage)
 AC, A
No. of poles
1P+N 2module, N line with disconnected
Rated current In 6,10,16,20,25,32,40,50,63A
Rated voltage Ue 230/240V~
Rated frequency 50/60Hz
Rated sensitivity currents I△n
 10,30,100,300mA
Residual current off-time under I△n
 ≤0.1s
Rated residual making and breaking capacity(I△m)
500A(In≤50A),10In (In>50A)
Rated breaking capacity EKL3-63: 6kA, EKL3-63H: 10kA
Energy limiting class 3
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at ind. Freq. for 1min 2kV
Thermal release characteristic
(1.13-1.45) x In
Magnetic release characteristic
B:(3-5) x In, C:(5-10) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Ground fault indicator
 Yes
Protection degree
 IP20
Ambient temperature
-25℃ to +55℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable
 25mm2
Max. tightening torque
 2.5N.m
Installation
Mounting on 35mm DIN rail
Connection
From top and bottom

Dimensions

Circuit Diagram



etek rcbo ekl3-63 circuit diagram



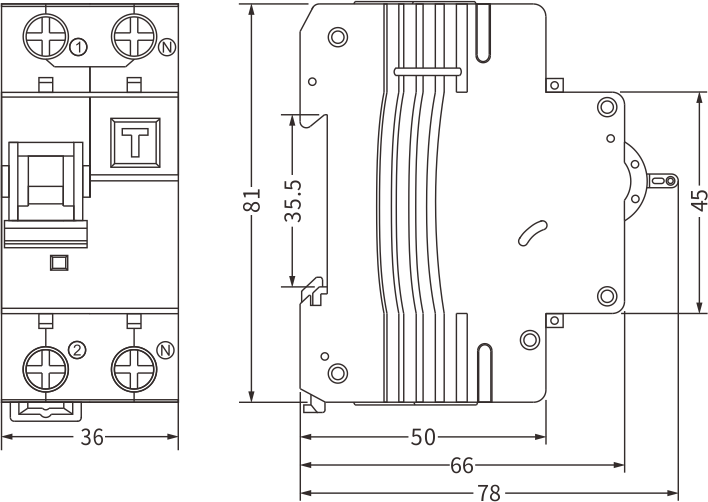

Installation size



etek rcbo ekl3-63 size

Product selection form

Poles Rated Current (A） B Curve
Sensitivity
10mA 30mA 100mA 300mA
Type AC
1P+N 6A EKL3-63-1NB0610 EKL3-63-1NB0630 EKL3-63-1NB06100 EKL3-63-1NB06300
10A EKL3-63-1NB1010 EKL3-63-1NB1030 EKL3-63-1NB10100 EKL3-63-1NB10300
16A EKL3-63-1NB1610 EKL3-63-1NB1630 EKL3-63-1NB16100 EKL3-63-1NB16300
20A EKL3-63-1NB2010 EKL3-63-1NB2030 EKL3-63-1NB20100 EKL3-63-1NB20300
25A EKL3-63-1NB2510 EKL3-63-1NB2530 EKL3-63-1NB25100 EKL3-63-1NB25300
32A EKL3-63-1NB3210 EKL3-63-1NB3230 EKL3-63-1NB32100 EKL3-63-1NB32300
40A EKL3-63-1NB4010 EKL3-63-1NB4030 EKL3-63-1NB40100 EKL3-63-1NB40300
50A EKL3-63-1NB5010 EKL3-63-1NB5030 EKL3-63-1NB50100 EKL3-63-1NB50300
63A EKL3-63-1NB6310 EKL3-63-1NB6330 EKL3-63-1NB63100 EKL3-63-1NB63300
  Type A
6A EKL3-63-1NB0610A EKL3-63-1NB0630A EKL3-63-1NB06100A EKL3-63-1NB06300A
8A EKL3-63-1NB0810A EKL3-63-1NB0830A EKL3-63-1NB08100A EKL3-63-1NB08300A
10A EKL3-63-1NB1010A EKL3-63-1NB1030A EKL3-63-1NB10100A EKL3-63-1NB10300A
13A EKL3-63-1NB1310A EKL3-63-1NB1330A EKL3-63-1NB13100A EKL3-63-1NB13300A
16A EKL3-63-1NB1610A EKL3-63-1NB1630A EKL3-63-1NB16100A EKL3-63-1NB16300A
20A EKL3-63-1NB2010A EKL3-63-1NB2030A EKL3-63-1NB20100A EKL3-63-1NB20300A
25A EKL3-63-1NB2510A EKL3-63-1NB2530A EKL3-63-1NB25100A EKL3-63-1NB25300A
32A EKL3-63-1NB3210A EKL3-63-1NB3230A EKL3-63-1NB32100A EKL3-63-1NB32300A
40A EKL3-63-1NB4010A EKL3-63-1NB4030A EKL3-63-1NB40100A EKL3-63-1NB40300A
50A EKL3-63-1NB5010A EKL3-63-1NB5030A EKL3-63-1NB50100A EKL3-63-1NB50300A
63A EKL3-63-1NB6310A EKL3-63-1NB6330A EKL3-63-1NB63100A EKL3-63-1NB63300A
Rated Current (A） C Curve
Sensitivity
10mA 30mA 100mA 300mA
Type AC
6A EKL3-63-1NC0610 EKL3-63-1NC0630 EKL3-63-1NC06100 EKL3-63-1NC06300
10A EKL3-63-1NC1010 EKL3-63-1NC1030 EKL3-63-1NC10100 EKL3-63-1NC10300
16A EKL3-63-1NC1610 EKL3-63-1NC1630 EKL3-63-1NC16100 EKL3-63-1NC16300
20A EKL3-63-1NC2010 EKL3-63-1NC2030 EKL3-63-1NC20100 EKL3-63-1NC20300
25A EKL3-63-1NC2510 EKL3-63-1NC2530 EKL3-63-1NC25100 EKL3-63-1NC25300
32A EKL3-63-1NC3210 EKL3-63-1NC3230 EKL3-63-1NC32100 EKL3-63-1NC32300
40A EKL3-63-1NC4010 EKL3-63-1NC4030 EKL3-63-1NC40100 EKL3-63-1NC40300
50A EKL3-63-1NC5010 EKL3-63-1NC5030 EKL3-63-1NC50100 EKL3-63-1NC50300
63A EKL3-63-1NC6310 EKL3-63-1NC6330 EKL3-63-1NC63100 EKL3-63-1NC63300
  Type A
6A EKL3-63-1NC0610A EKL3-63-1NC0630A EKL3-63-1NC06100A EKL3-63-1NC06300A
10A EKL3-63-1NC1010A EKL3-63-1NC1030A EKL3-63-1NC10100A EKL3-63-1NC10300A
16A EKL3-63-1NC1610A EKL3-63-1NC1630A EKL3-63-1NC16100A EKL3-63-1NC16300A
20A EKL3-63-1NC2010A EKL3-63-1NC2030A EKL3-63-1NC20100A EKL3-63-1NC20300A
25A EKL3-63-1NC2510A EKL3-63-1NC2530A EKL3-63-1NC25100A EKL3-63-1NC25300A
32A EKL3-63-1NC3210A EKL3-63-1NC3230A EKL3-63-1NC32100A EKL3-63-1NC32300A
40A EKL3-63-1NC4010A EKL3-63-1NC4030A EKL3-63-1NC40100A EKL3-63-1NC40300A
50A EKL3-63-1NC5010A EKL3-63-1NC5030A EKL3-63-1NC50100A EKL3-63-1NC50300A
63A EKL3-63-1NC6310A EKL3-63-1NC6330A EKL3-63-1NC63100A EKL3-63-1NC63300A

Download Files

Document Type
Document Name
Size
Product Catalog
EKL3-63_RCBO
484.66KB
Product Certificate
Certificate_of_EKL3-63_(CE+CB+UKCA+S)
944.8KB

Porduct Overview

EKL3-63 "Phase line + neutral + leakage "protection circuit breaker is applied to the single-phase residential circuit of 50Hz or 60Hz, rated voltage 230V, to protect leakage, civil electrical overload and short circuit. The product is provided with many advantages such as small size, high breaking capacity, cutting off zero-line, live line at the same time, and leakage protecting in the case of reverse wiring live line. This product complies with IEC61009 standards, with advanced international technology.

Technical parameters

Download Files

Recommend Products

ETEK-EKL17-40-RCBO

1P+N Residual Current Circuit Breaker with Overcurrent Protection (RCBO)

Inquire
ETEK-RCBO-EKL2-40

RCBO 6kA 1P+N Residual Current Operated Circuit Breaker

Inquire
ETEK-RCBO-EKL3-40M

RCBO 6kA Magnetic Type Residual Current Operated Circuit Breaker

Inquire

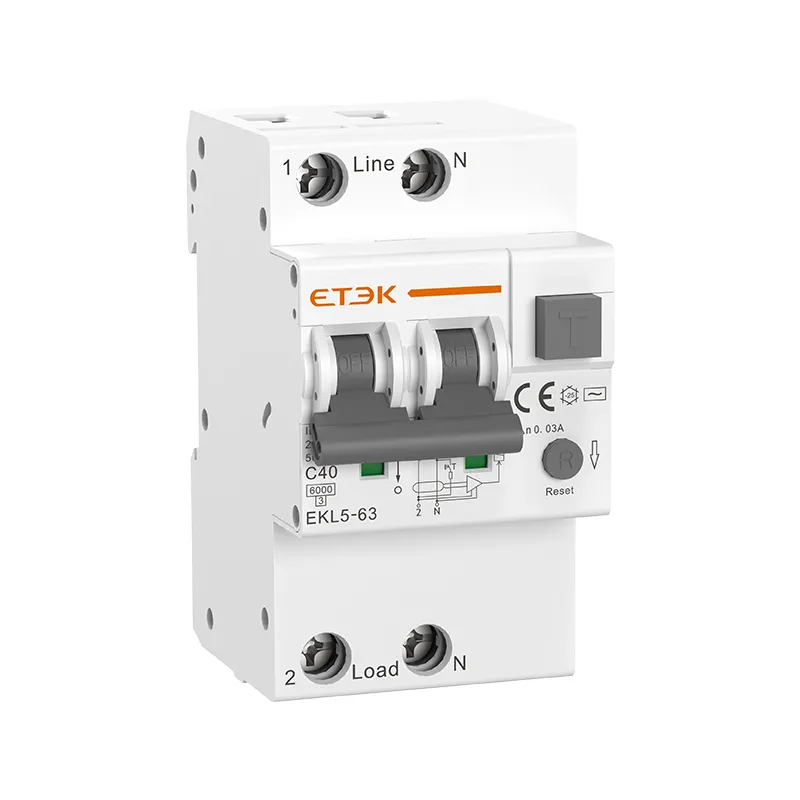

ETEK-RCBO-EKL5-63
