Model: EKL21-63S

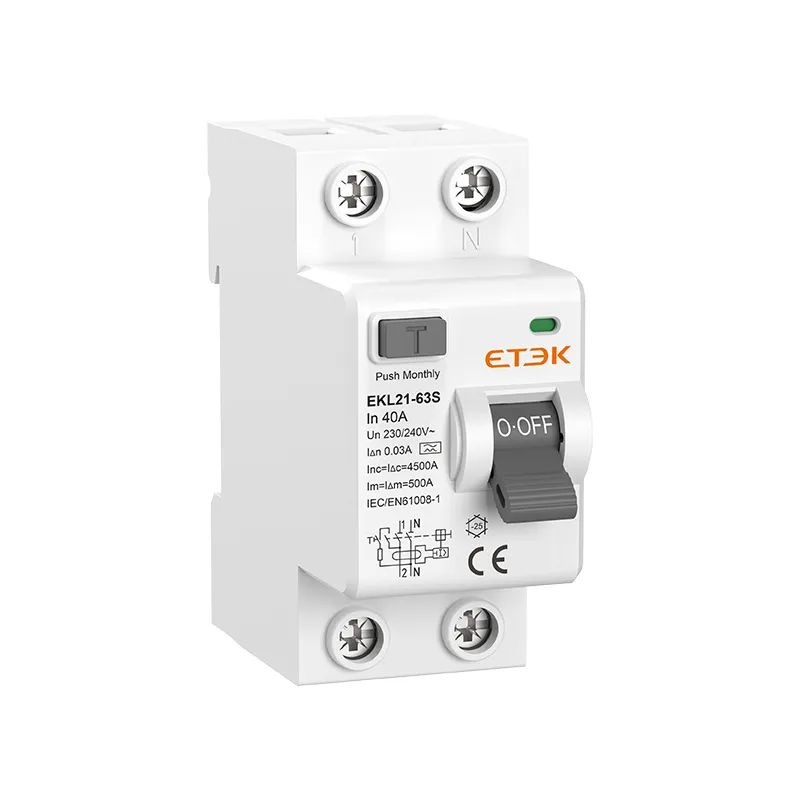

EKL21-63S Residual Current Circuit Breaker (RCCB)
Inquire
● Standard: IEC61009-1, IEC62423
●: Residual Current Type: B
● Rated current: 16, 20, 25, 32, 40A
● Rated voltage: 230/240~
● Number of poles: 2P(1P+N)
● Rated Residual Operating Current (IAn): 30mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+55 ºC
● Storage temperature: -25...+70 ºC
● Incoming method: Bi-directional
● Certificates: CE, UKCA

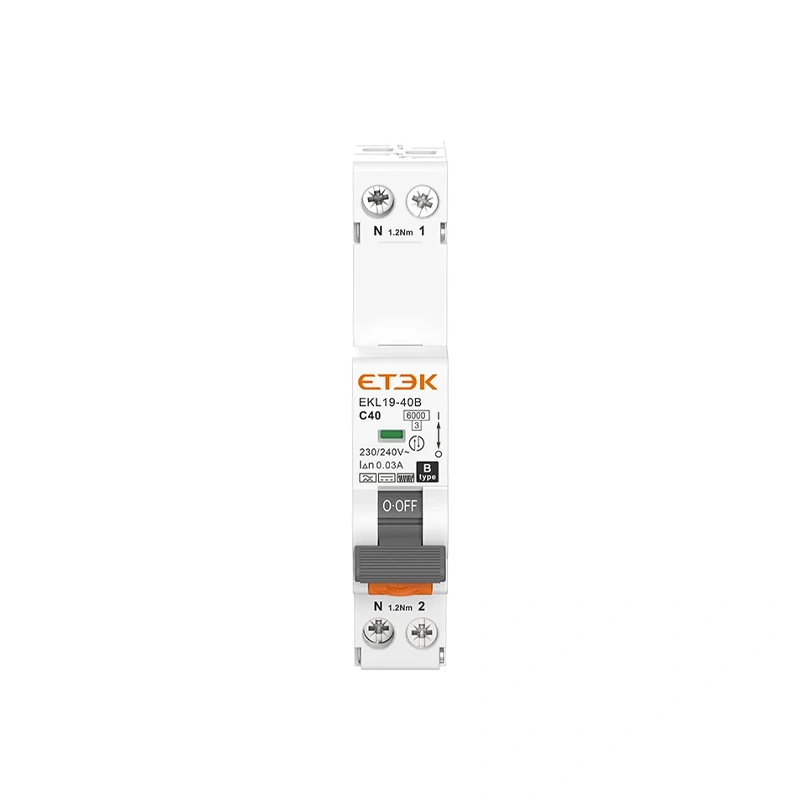

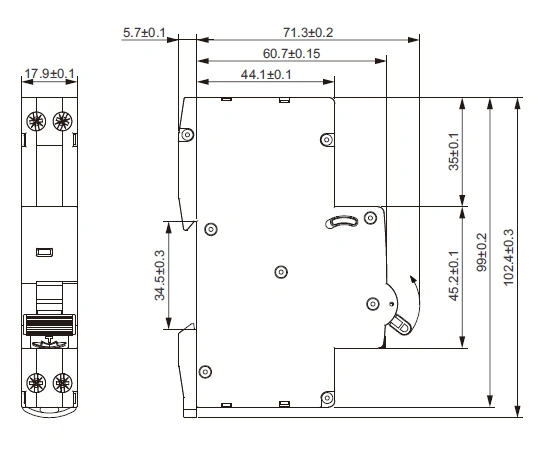

EKL19-40B is a single-module Type B Residual Current Breaker with Overcurrent Protection (RCBO) introduced by ETEK Electric. This advanced circuit protection device efficiently handles overcurrent, short circuits, and earth fault leakages, while being specifically designed to detect complex waveforms and DC residual currents. Its compact single-module design makes it ideal for modern electrical installations where space is limited.
EKL19-40B operates at a rated voltage of 230/240V and supports a maximum current of up to 40A. It features a residual current sensitivity of 30mA and a short-circuit rating of 6kA. Additionally, it offers both B curve and C curve characteristics, making it an ideal solution for safeguarding sensitive electronic equipment such as electric vehicle chargers, solar panels, and heat pumps.
Compact Design: Single-module（18mm）structure saves distribution board space, making it ideal for modern, space-efficient installations or retrofits.
Bidirectional Wiring Capability: Enables conductors to be terminated from either the top or bottom terminals, providing installation flexibility across diverse panel configurations while maintaining uniform electrical characteristics.
Comprehensive Protection: Offers overload, short circuit, and residual current protection to ensure circuit safety.
DC Residual Current Detection: Specifically designed for complex waveforms and DC residual currents, ideal for EV chargers, solar PV systems, and heat pumps.
High Performance: 6kA short circuit rating with B or C curve options to meet diverse application needs.
Standard:
IEC 61009-1: Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) - Part 1: General rules
IEC62423: Type B residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Electric Vehicle (EV) Charging Stations
Solar Photovoltaic (PV) Systems
Heat Pumps
Industrial Welding Equipment
UPS Systems
The EKL19-40B is a reliable and efficient solution for safeguarding sensitive electronic equipment in residential, commercial, and industrial environments.
|
Standard
|
IEC/EN 61009-1, IEC/EN 62423
|
|
Protection
|
Ground fault, Overcurrent and short circuit
|
|
Type of trip
|
Groundfault: Electronic
|
|
Overload and short circuit: Thermo-magnetic
|
|
|
Residual current type
|
B: residual AC, pulsating and smooth DC current, high frequency (≤1kHz)
|
|
No. of poles
|
1P+N (18mm,with switched neutral)
|
|
Insulation voltage (Ui)
|
500V |
|
Rated voltage (Ue)
|
230/240V~
|
|
Rated currents (In)
|
6,8,10,13,16,20,25,32,40A |
|
Rated sensitivity currents (IΔn)
|
30mA
|
|
Residual current off time under (IΔn)
|
≤0.1s
|
|
Rated residual making and breaking capacity (IΔm)
|
500A (In≤50A)
|
|
Rated frequency
|
50/60Hz
|
|
Rated short-circuit capacity (Icn)
|
6kA
|
|
Energy limiting class
|
3
|
|
Rated impulse withstand voltage (Uimp (1.2/50μs)
|
4kV
|
|
Dielectric test voltage
|
960±15°C (Enclosure), 650±10°C (Handle)
|
|
Thermal tripping characteristics
|
1.13In No tripping within an hour
|
|
1.45In Tripping within an hour
|
|
|
Instantaneous tripping characteristics
|
B: 3In-5In; C: 5In-10In
|
|
Electrical life
|
4,000 Cycles
|
|
Mechanical life
|
10,000 Cycles
|
|
Contact position indication
|
green OFF/ red ON
|
|
Protection degree
|
IP20
|
|
Ambient temperature
|
-25°C ~ +55°C
|
|
Storage temperature
|
-30°C ~ +70°C
|
|
Terminal connection type
|
Cable / Pin-type busbar
|
|
Max. terminal size for cable
|
16mm2
|
|
Max. tightening torque
|
2.0 N.m
|
|
Installation
|
Mounting on 35mm DIN rail
|
|
Incoming method
|
Bi-directional
|

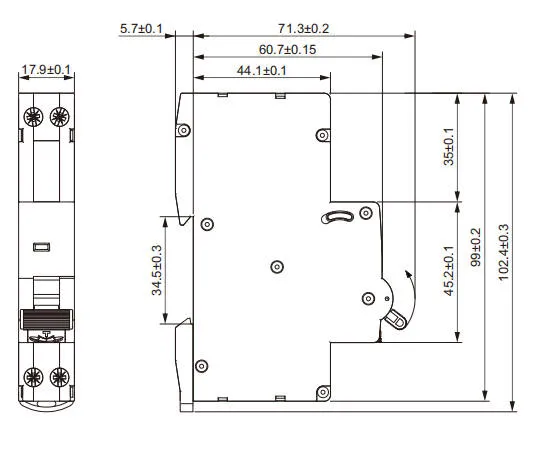

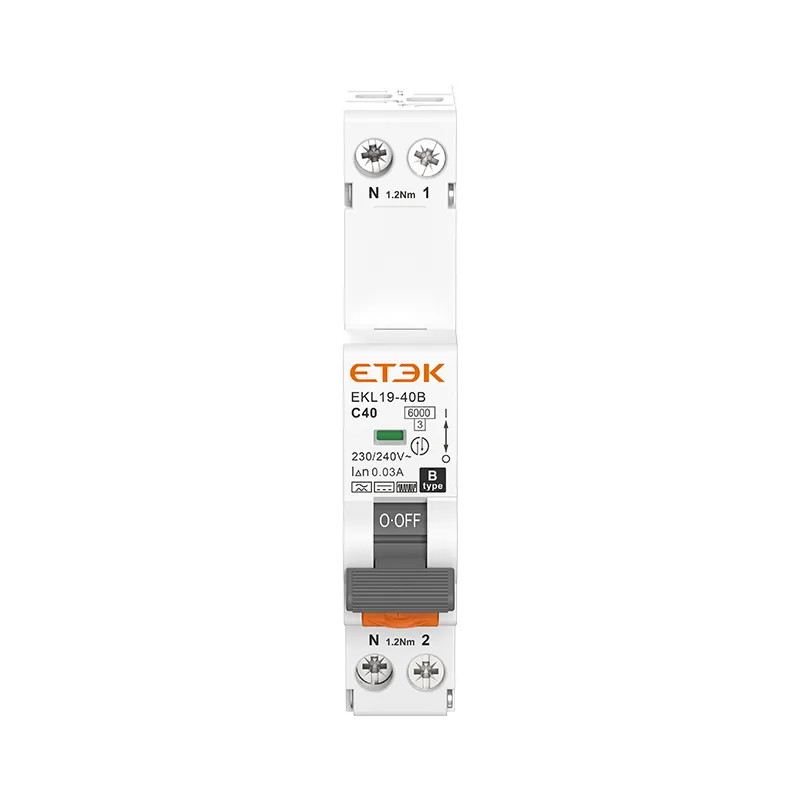

EKL19-40B is a single-module Type B Residual Current Breaker with Overcurrent Protection (RCBO) introduced by ETEK Electric. This advanced circuit protection device efficiently handles overcurrent, short circuits, and earth fault leakages, while being specifically designed to detect complex waveforms and DC residual currents. Its compact single-module design makes it ideal for modern electrical installations where space is limited.
EKL19-40B operates at a rated voltage of 230/240V and supports a maximum current of up to 40A. It features a residual current sensitivity of 30mA and a short-circuit rating of 6kA. Additionally, it offers both B curve and C curve characteristics, making it an ideal solution for safeguarding sensitive electronic equipment such as electric vehicle chargers, solar panels, and heat pumps.
Compact Design: Single-module（18mm）structure saves distribution board space, making it ideal for modern, space-efficient installations or retrofits.
Bidirectional Wiring Capability: Enables conductors to be terminated from either the top or bottom terminals, providing installation flexibility across diverse panel configurations while maintaining uniform electrical characteristics.
Comprehensive Protection: Offers overload, short circuit, and residual current protection to ensure circuit safety.
DC Residual Current Detection: Specifically designed for complex waveforms and DC residual currents, ideal for EV chargers, solar PV systems, and heat pumps.
High Performance: 6kA short circuit rating with B or C curve options to meet diverse application needs.
Standard:
IEC 61009-1: Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) - Part 1: General rules
IEC62423: Type B residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Electric Vehicle (EV) Charging Stations
Solar Photovoltaic (PV) Systems
Heat Pumps
Industrial Welding Equipment
UPS Systems
The EKL19-40B is a reliable and efficient solution for safeguarding sensitive electronic equipment in residential, commercial, and industrial environments.
