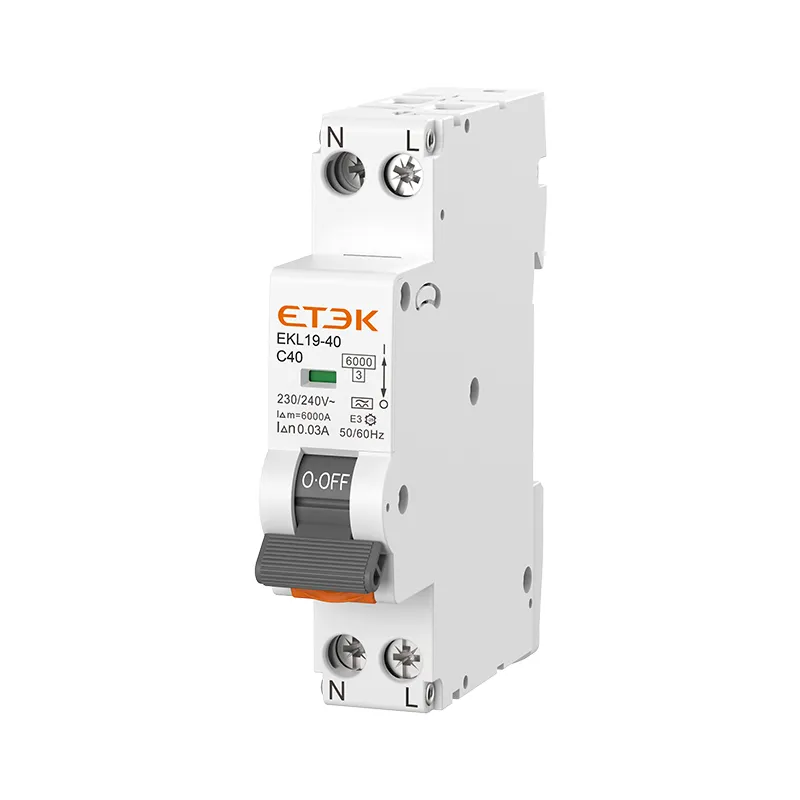

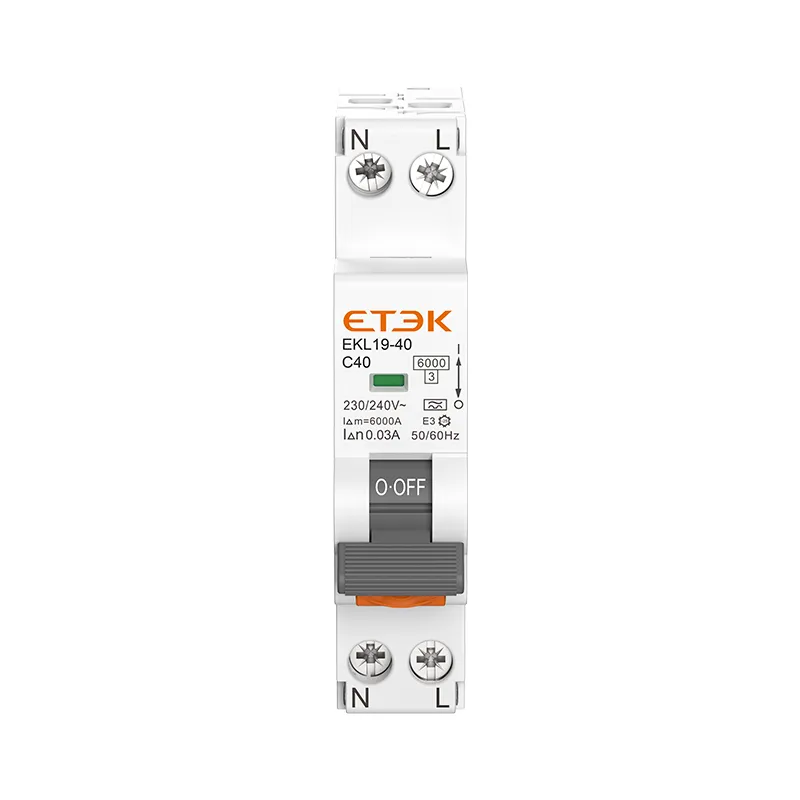

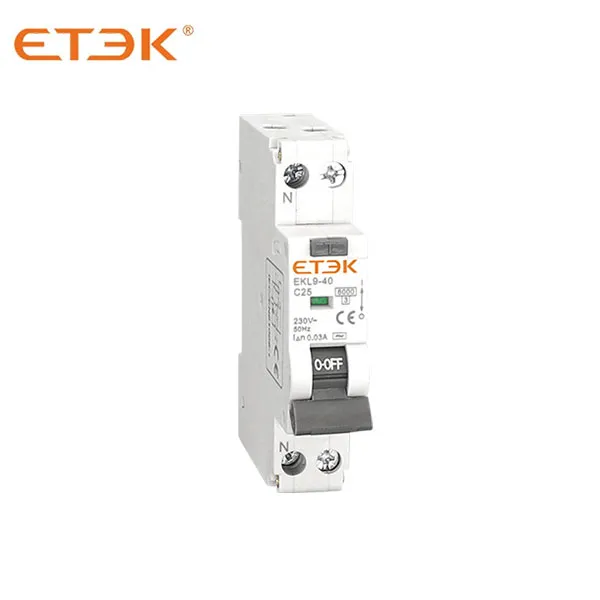

Residual Current Circuit Breaker with Overcurrent Protection (RCBO)

Discover the EKL19-40 RCBO from ETEK China - a compact, reliable solution for residual current and overcurrent protection. Ideal for residential and commercial applications, offering enhanced electrical safety and easy installation.

● Standard: IEC61009-1
● Type: AC, A
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: Two Poles
● Rated Residual Operating Current (IAn): 10, 30, 100, 300mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB

Inquire NOW PDF

Residual Current Circuit Breaker with Overcurrent Protection (RCBO)

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

EKL19-40 products provide protection against earth faults, overloads, short circuits and over-voltage in commercial and domestic installation. The RCBO with both disconnected neutral and phase guarantees its proper actuation against earth leakage faults even when the neutral and phase are wrongly connected the electronic RCBO incorporate a filtering device preventing the risks of unwanted due to transient voltages and transient currents.

  1. This is RCBO can be wired from the bottom or top.

  2. Provides protection against earth fault/leakage current and function of isolation.

  3. High short-circuits current withstand capacity.

  4. Applicable to terminal and pin/fork type busbar connection.

  5. Equipped with finger protected connection terminals.

  6. Fire resistant plastic parts endure abnormal heating and strong impact.

  7. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

  8. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

  9. Rated current can reach up to 40A.

Technical parameters

Technical Data

Standard IEC/EN61009-1
Protection
Ground fault, Overcurrent and short circuit
Type of trip
Ground fault: Electronic
Overload and short circuit: Thermo-magnetic
No. of poles
1P+N,1 Module, N line with disconnected
Type AC, A
Rated current In 6,10,16,20,25,32,40A
Rated sensitivity currents I△n
 10,30,100,300mA
Residual current off-time under I△n ≤0.1s
Reted residual making and breaking capacity (I△m) 500A(In≤50A)
Rated voltage Ue 240V~
Rated frequency 50/60Hz
Rated breaking capacity 6kA
Energy limiting class 3
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Thermal release characteristic
(1.13-1.45) x In
Magnetic release characteristic
B:(3-5) x In, C:(5-10) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -25℃~+40℃, Max.95% humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable
 16mm2
Max. tightening torque 2.5N.m
Installation
Mounting on 35mm DIN rail
Connection
From top and bottom

Dimensions

Circuit Diagram

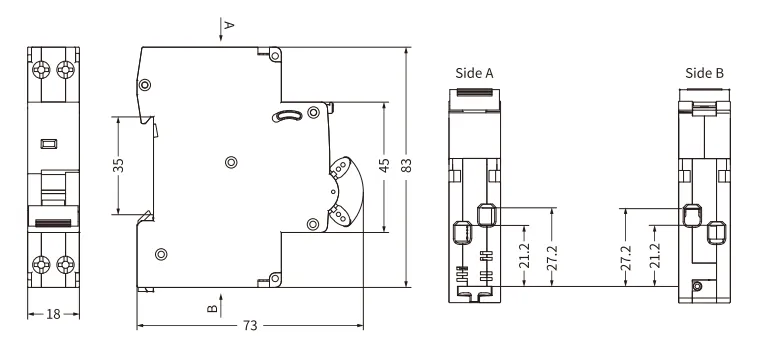

Overall Dimension

Download Files

Document Type
Document Name
Size
Product Catalog
EKL19-40_RCBO
662.73KB
Product Certificate
Certificate_of_EKL19-40_(CE+CB+S)
725.67KB
