Model: EKL29-40M

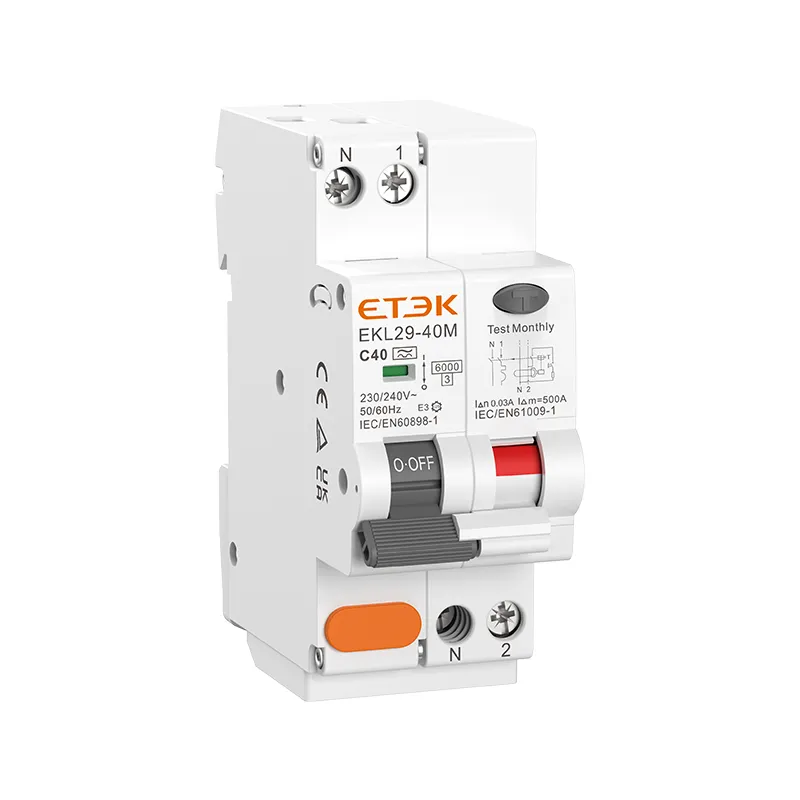

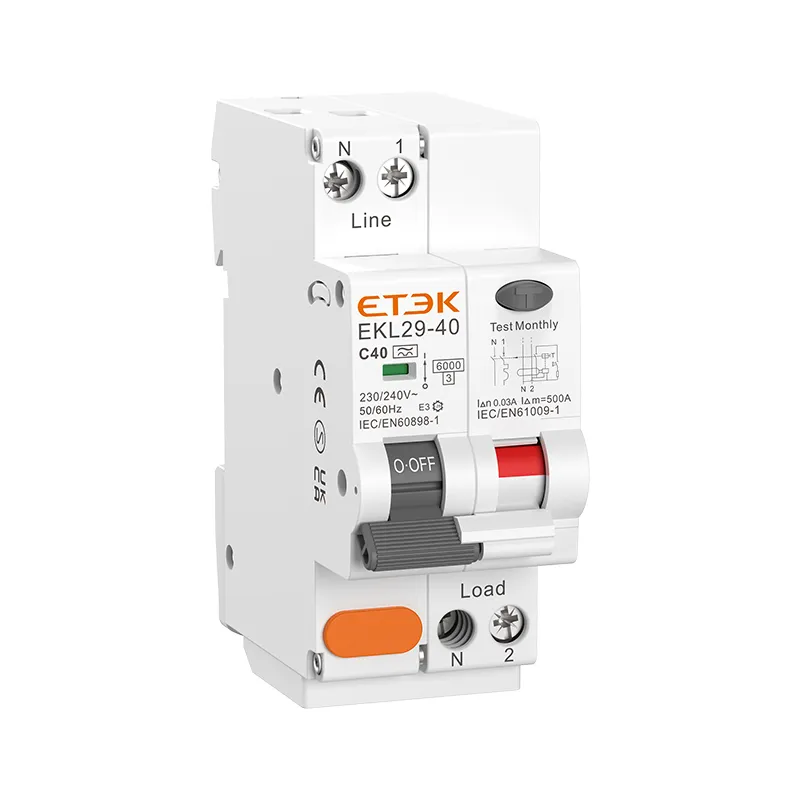

EKL29-40M RCBO Electro-magnetic Type Residual Current Circuit Breaker with Overcurrent Protection
Inquire
● Standard: IEC61009-1
● Type: AC, A
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: Single Poles
● Rated Residual Operating Current (IAn): 10, 30, 100, 300mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+40 ºC
● Connection: From bottom
● Certificates: CE, CB

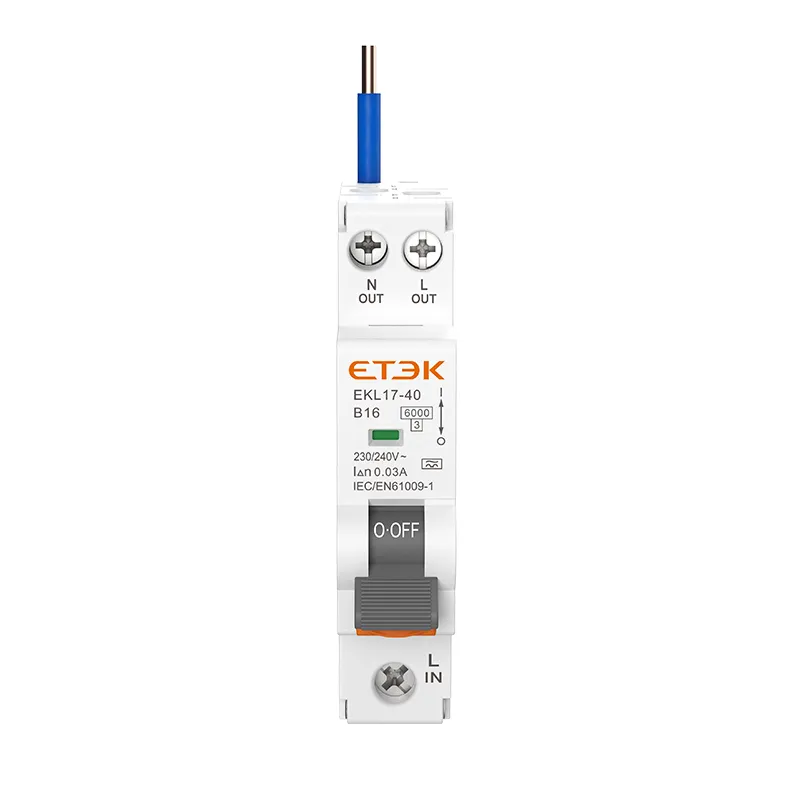

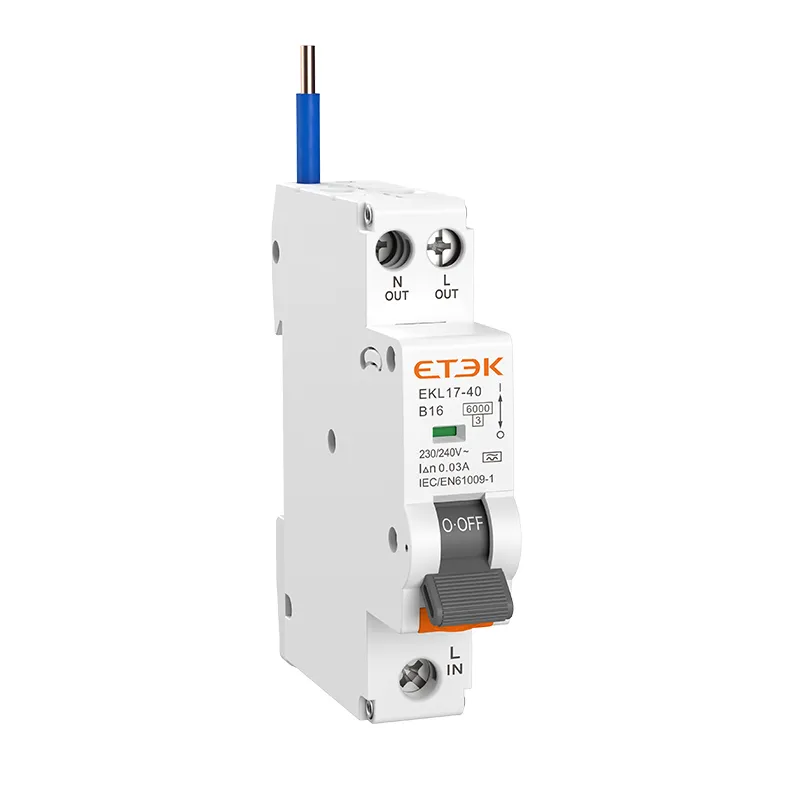

EKL17-40 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts, EKL17-40 RCBO Provides 10,30,100,300mA four different versions. Also, EKL17-40 is equipped with supply neutral wire.
The EKL17-40 1P+N RCBO combines both residual current protection and overcurrent protection in a single module. Some of its features include:
1. Improved protection: The supply neutral wire help provide additional protection against earth faults and overcurrents.
2. Enhanced safety: The RCBO with neutral and earth wires helps enhance the safety of electrical installations by providing protection against both earth leakage faults and overcurrents.
3. Suitable for specific applications: This type of RCBO is particularly suitable for installations where a functional earth wire is required, such as in medical facilities or areas with sensitive electronic equipment.
4. Compliance with regulations: The use of a functional earth wire is often required by regulations in certain industries or countries, and the 1P+N RCBO with neutral wires helps meet these requirements.
5. Easy installation: Like the standard 1P+N RCBO, the version with neutral wires is easy to install and requires minimal wiring, which helps save time and effort during installation.

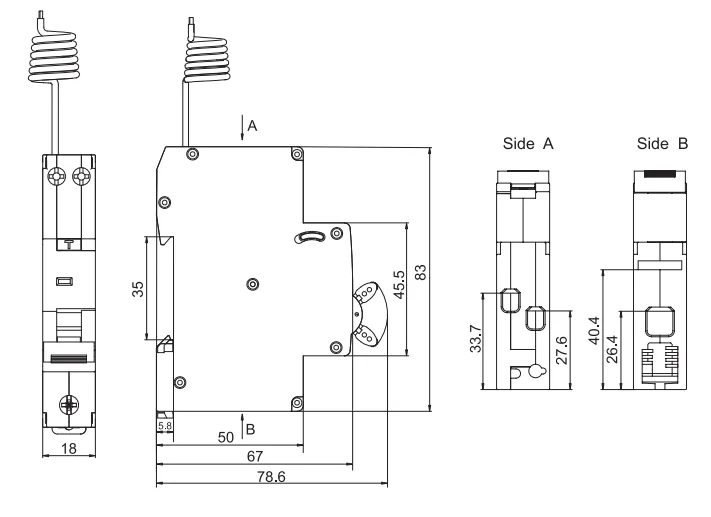

| Standard | IEC/EN61009-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage(selectable) |
| Type of trip | Ground fault : Electronic |
| Overload and short circuit :Thermo-magnetic | |
| Type of protection (electric leakage) | AC,A |
| No.of poles | 1P+N 1module , N line with disconnected |
| Rated currents (In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents I△n | 10,30,100,300mA |
| Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity(I△m) | 500A(In≤50A) |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | L(in):25mm2 , N/L(out) :16mm2 |
| Max.tightening torque | L(in):2.5N.m , N/L(out):2N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From bottom |
EKL17-40 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts, EKL17-40 RCBO Provides 10,30,100,300mA four different versions. Also, EKL17-40 is equipped with supply neutral wire.
The EKL17-40 1P+N RCBO combines both residual current protection and overcurrent protection in a single module. Some of its features include:
1. Improved protection: The supply neutral wire help provide additional protection against earth faults and overcurrents.
2. Enhanced safety: The RCBO with neutral and earth wires helps enhance the safety of electrical installations by providing protection against both earth leakage faults and overcurrents.
3. Suitable for specific applications: This type of RCBO is particularly suitable for installations where a functional earth wire is required, such as in medical facilities or areas with sensitive electronic equipment.
4. Compliance with regulations: The use of a functional earth wire is often required by regulations in certain industries or countries, and the 1P+N RCBO with neutral wires helps meet these requirements.
5. Easy installation: Like the standard 1P+N RCBO, the version with neutral wires is easy to install and requires minimal wiring, which helps save time and effort during installation.
