Porduct Overview

Description

EKPB2 pushbutton switches are used in industry for controlling circuits of AC 50Hz or 60Hz, rated operation voltage 380V or below and DC operational Voltage 220V or below for controlling magnetic, starter, contactor, relay and other electrical circuits. The buttons indicators can also be used in the place with indicated light or signal. They are compatible with the standards: IEC60947-5-1.

Technical parameters

Technical Data

Operation temperature: -5℃~+40℃	Power-frequency withstand voltage: 2500V, 1min
Operation humidity: 45%~85%	ELECTRIC durability: 50×104
Contact resistance: ≤50mΩ	Degree of protection: Ip40
Rated insulation voltage	Ui 660V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V 220V 110V 48V 24V
Rated operation current	AC-15	2.5A	4.5	6A	8A	-
Rated operation current	DC-13	-	0.3A	0.6A	1.3A	2.5

Rated operational Voltage	Directness						Resistance		Transformer
Rated operational Voltage	6V	12V	24V	48V	110V	220V	380V	220V	220V	380V
LED lamp	√	√	√	-	-	-	-	-	√	√
Neon lamp	-	-	-	-	√	√	√	√	-
Incandescence lamp	√	√	√	√	√	√	√	-	√	√

Product selection form

Reference No.
Plastic Type	Metal Type	Specification
EKPB2-BA11	EKPB2-EA11	Pushbutton Spring Return Type White N/O
EKPB2-BA21	EKPB2-EA21	Pushbutton Spring Return Type Black N/O
EKPB2-BA31	EKPB2-EA31	Pushbutton Spring Return Type Green N/O
EKPB2-BA51	EKPB2-EA51	Pushbutton Spring Return Type Yellow N/O
EKPB2-BA61	EKPB2-EA61	Pushbutton Spring Return Type Blue N/O
EKPB2-BA42	EKPB2-EA42	Pushbutton Spring Return Type Red N/O
EKPB2-BA25	EKPB2-EA25	Pushbutton Spring Return Type Black N/O+N/C
EKPB2-BA35	EKPB2-EA35	Pushbutton Spring Return Type Green N/O+N/C
EKPB2-BA45	EKPB2-EA45	Pushbutton Spring Return Type Red N/O+N/C
EKPB2-BP11	EKPB2-EP11	Pushbutton Spring Return IP65 type White N/O
EKPB2-BP21	EKPB2-EP21	Pushbutton Spring Return IP65 type Black N/O
EKPB2-BP31	EKPB2-EP31	Pushbutton Spring Return IP65 type Green N/O
EKPB2-BP51	EKPB2-EP51	Pushbutton Spring Return IP65 type Yellow N/O
EKPB2-BP61	EKPB2-EP61	Pushbutton Spring Return IP65 type Blue N/O
EKPB2-BP42	EKPB2-EP42	Pushbutton Spring Return IP65 type Red N/C
EKPB2-BP25	EKPB2-EP25	Pushbutton Spring Return IP65 type Black N/O+N/C
EKPB2-BP35	EKPB2-EP35	Pushbutton Spring Return IP65 type Green N/O+N/C
EKPB2-BP45	EKPB2-EP45	Pushbutton Spring Return IP65 type Red N/O+N/C
EKPB2-BL11	EKPB2-EL11	Pushbutton Protruding type White N/O
EKPB2-BL21	EKPB2-EL21	Pushbutton Protruding type Black N/O
EKPB2-BL31	EKPB2-EL31	Pushbutton Protruding type Green N/O
EKPB2-BL51	EKPB2-EL51	Pushbutton Protruding type Yellow N/O
EKPB2-BL61	EKPB2-EL61	Pushbutton Protruding type Blue N/O
EKPB2-BL42	EKPB2-EL42	Pushbutton Protruding type Red N/C
EKPB2-BL25	EKPB2-EL25	Pushbutton Protruding type Black N/O+N/C
EKPB2-BL35	EKPB2-EL35	Pushbutton Protruding type Green N/O+N/C
EKPB2-BL45	EKPB2-EL45	Pushbutton Protruding type Red N/O+N/C
EKPB2-BD21	EKPB2-ED21	Pushbutton Rotary type Black N/O
EKPB2-BD25	EKPB2-ED25	Pushbutton Rotary type Black N/O+N/C
EKPB2-BD41	EKPB2-ED41	Pushbutton Rotary type Black N/O
EKPB2-BD45	EKPB2-ED45	Pushbutton Rotary type Black N/O+N/C
EKPB2-BD33	EKPB2-ED33	Pushbutton Rotary type Black 2N/O
EKPB2-BD53	EKPB2-ED53	Pushbutton Rotary type Black 2N/O
EKPB2-BJ21	EKPB2-EJ21	Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ25	EKPB2-EJ25	Pushbutton Rotary Long handle type Black N/O+N/C
EKPB2-BJ41	EKPB2-EJ41	Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ45	EKPB2-EJ45	Pushbutton Rotary Long handle type Black N/O+NC
EKPB2-BJ33	EKPB2-EJ33	Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BJ53	EKPB2-EJ53	Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BG21	EKPB2-EG21	Pushbutton Rotary with Key type Black N/O
EKPB2-BG25	EKPB2-EG25	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG41	EKPB2-EG41	Pushbutton Rotary with Key type Black N/O
EKPB2-BG45	EKPB2-EG45	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG61	EKPB2-EG61	Pushbutton Rotary with Key type Black N/O
EKPB2-BG65	EKPB2-EG65	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG03	EKPB2-EG03	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG33	EKPB2-EG33	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG53	EKPB2-EG53	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG73	EKPB2-EG73	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BL8325	EKPB2-EL8325	Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BL8425	EKPB2-EL8425	Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BW8365	EKPB2-EW8365	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8465	EKPB2-EW8465	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8375	EKPB2-EW8375	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8475	EKPB2-EW8475	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BC21	EKPB2-EC21	Pushbutton Mushroom type Black N/O
EKPB2-BC31	EKPB2-EC31	Pushbutton Mushroom type Green N/O
EKPB2-BC42	EKPB2-EC42	Pushbutton Mushroom type Red N/O
EKPB2-BC51	EKPB2-EC51	Pushbutton Mushroom type Yellow N/O
EKPB2-BC21	EKPB2-ER21	Pushbutton Mushroom type Black N/O
EKPB2-BC31	EKPB2-ER31	Pushbutton Mushroom type Green N/O
EKPB2-BC42	EKPB2-ER42	Pushbutton Mushroom type Red N/C
EKPB2-BC51	EKPB2-ER51	Pushbutton Mushroom type Yellow N/C
EKPB2-BS442	EKPB2-ES442	Pushbutton Mushroom type Red N/C
EKPB2-BS542	EKPB2-ES542	Pushbutton Mushroom type Red N/C
EKPB2-BS642	EKPB2-ES642	Pushbutton Mushroom type Red N/C
EKPB2-BT42		Pushbutton Mushroom type Red N/C
EKPB2-BT845		Pushbutton Mushroom type Red N/O+N/C
EKPB2-BS142	EKPB2-ES142	Pushbutton Mushroom with Key type Red N/C
EKPB2-BS8445	EKPB2-ES8445	Pushbutton Mushroom with Key type Red N/O+N/C
EKPB2-BV61	EKPB2-EV61	Pushbutton Indicator Light Type White Directness
EKPB2-BV63	EKPB2-EV63	Pushbutton Indicator Light Type Green Directness
EKPB2-BV64	EKPB2-EV64	Pushbutton Indicator Light Type Red Directness
EKPB2-BV65	EKPB2-EV65	Pushbutton Indicator Light Type Yellow Directness
EKPB2-BV66	EKPB2-EV66	Pushbutton Indicator Light Type Blue Directness
EKPB2-BV71	EKPB2-EV71	Pushbutton Indicator Light Type White Resistance
EKPB2-BV73	EKPB2-EV73	Pushbutton Indicator Light Type Green Resistance
EKPB2-BV74	EKPB2-EV74	Pushbutton Indicator Light Type Red Resistance
EKPB2-BV75	EKPB2-EV75	Pushbutton Indicator Light Type Yellow Resistance
EKPB2-BV76	EKPB2-EV76	Pushbutton Indicator Light Type Blue Resistance
EKPB2-BW3161	EKPB2-EW3161	Pushbutton With Indicator type White N/O
EKPB2-BW3361	EKPB2-EW3361	Pushbutton With Indicator type Green N/O
EKPB2-BW3462	EKPB2-EW3462	Pushbutton With Indicator type Red N/C
EKPB2-BW3561	EKPB2-EW3561	Pushbutton With Indicator type Yellow N/O
EKPB2-BW3661	EKPB2-EW3661	Pushbutton With Indicator type Blue N/O
EKPB2-BW3365	EKPB2-EW3365	Pushbutton With Indicator type Green N/O+N/C
EKPB2-BW3465	EKPB2-EW3465	Pushbutton With Indicator type Red N/O+N/C
EKPB2-BK2365	EKPB2-EK2365	Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK2465	EKPB2-EK2465	Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BK3365	EKPB2-EK3365	Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK3465	EKPB2-EK3465	Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BZ101	EKPB2-EZ101	Bracket with Contact N/O
EKPB2-BZ103	EKPB2-EZ103	Bracket with Contact N/O+N/C
EKPB2-BZ105	EKPB2-EZ105	Bracket with Contact N/O+N/C
EKPB2-BZ102	EKPB2-EZ102	Bracket with Contact N/C
EKPB2-BZ104	EKPB2-EZ104	Bracket with Contact N/C+N/C
EKPB2-BV6	EKPB2-EV6	Bottom Base seat
EKPB2-BW06	EKPB2-EW06	Bottom Base seat
EKPB2-BZ009	EKPB2-EZ009	Bracket only
EKPB2-BE102	EKPB2-ET42	Contact Block N/C
EKPB2-BE101	EKPB2-ET845	Contact Block N/O

Download Files

Porduct Overview

Description

Technical parameters

Technical Data

Operation temperature: -5℃~+40℃	Power-frequency withstand voltage: 2500V, 1min
Operation humidity: 45%~85%	ELECTRIC durability: 50×104
Contact resistance: ≤50mΩ	Degree of protection: Ip40
Rated insulation voltage	Ui 660V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V 220V 110V 48V 24V
Rated operation current	AC-15	2.5A	4.5	6A	8A	-
Rated operation current	DC-13	-	0.3A	0.6A	1.3A	2.5

Rated operational Voltage	Directness						Resistance		Transformer
Rated operational Voltage	6V	12V	24V	48V	110V	220V	380V	220V	220V	380V
LED lamp	√	√	√	-	-	-	-	-	√	√
Neon lamp	-	-	-	-	√	√	√	√	-
Incandescence lamp	√	√	√	√	√	√	√	-	√	√

Product selection form

Reference No.
Plastic Type	Metal Type	Specification
EKPB2-BA11	EKPB2-EA11	Pushbutton Spring Return Type White N/O
EKPB2-BA21	EKPB2-EA21	Pushbutton Spring Return Type Black N/O
EKPB2-BA31	EKPB2-EA31	Pushbutton Spring Return Type Green N/O
EKPB2-BA51	EKPB2-EA51	Pushbutton Spring Return Type Yellow N/O
EKPB2-BA61	EKPB2-EA61	Pushbutton Spring Return Type Blue N/O
EKPB2-BA42	EKPB2-EA42	Pushbutton Spring Return Type Red N/O
EKPB2-BA25	EKPB2-EA25	Pushbutton Spring Return Type Black N/O+N/C
EKPB2-BA35	EKPB2-EA35	Pushbutton Spring Return Type Green N/O+N/C
EKPB2-BA45	EKPB2-EA45	Pushbutton Spring Return Type Red N/O+N/C
EKPB2-BP11	EKPB2-EP11	Pushbutton Spring Return IP65 type White N/O
EKPB2-BP21	EKPB2-EP21	Pushbutton Spring Return IP65 type Black N/O
EKPB2-BP31	EKPB2-EP31	Pushbutton Spring Return IP65 type Green N/O
EKPB2-BP51	EKPB2-EP51	Pushbutton Spring Return IP65 type Yellow N/O
EKPB2-BP61	EKPB2-EP61	Pushbutton Spring Return IP65 type Blue N/O
EKPB2-BP42	EKPB2-EP42	Pushbutton Spring Return IP65 type Red N/C
EKPB2-BP25	EKPB2-EP25	Pushbutton Spring Return IP65 type Black N/O+N/C
EKPB2-BP35	EKPB2-EP35	Pushbutton Spring Return IP65 type Green N/O+N/C
EKPB2-BP45	EKPB2-EP45	Pushbutton Spring Return IP65 type Red N/O+N/C
EKPB2-BL11	EKPB2-EL11	Pushbutton Protruding type White N/O
EKPB2-BL21	EKPB2-EL21	Pushbutton Protruding type Black N/O
EKPB2-BL31	EKPB2-EL31	Pushbutton Protruding type Green N/O
EKPB2-BL51	EKPB2-EL51	Pushbutton Protruding type Yellow N/O
EKPB2-BL61	EKPB2-EL61	Pushbutton Protruding type Blue N/O
EKPB2-BL42	EKPB2-EL42	Pushbutton Protruding type Red N/C
EKPB2-BL25	EKPB2-EL25	Pushbutton Protruding type Black N/O+N/C
EKPB2-BL35	EKPB2-EL35	Pushbutton Protruding type Green N/O+N/C
EKPB2-BL45	EKPB2-EL45	Pushbutton Protruding type Red N/O+N/C
EKPB2-BD21	EKPB2-ED21	Pushbutton Rotary type Black N/O
EKPB2-BD25	EKPB2-ED25	Pushbutton Rotary type Black N/O+N/C
EKPB2-BD41	EKPB2-ED41	Pushbutton Rotary type Black N/O
EKPB2-BD45	EKPB2-ED45	Pushbutton Rotary type Black N/O+N/C
EKPB2-BD33	EKPB2-ED33	Pushbutton Rotary type Black 2N/O
EKPB2-BD53	EKPB2-ED53	Pushbutton Rotary type Black 2N/O
EKPB2-BJ21	EKPB2-EJ21	Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ25	EKPB2-EJ25	Pushbutton Rotary Long handle type Black N/O+N/C
EKPB2-BJ41	EKPB2-EJ41	Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ45	EKPB2-EJ45	Pushbutton Rotary Long handle type Black N/O+NC
EKPB2-BJ33	EKPB2-EJ33	Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BJ53	EKPB2-EJ53	Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BG21	EKPB2-EG21	Pushbutton Rotary with Key type Black N/O
EKPB2-BG25	EKPB2-EG25	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG41	EKPB2-EG41	Pushbutton Rotary with Key type Black N/O
EKPB2-BG45	EKPB2-EG45	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG61	EKPB2-EG61	Pushbutton Rotary with Key type Black N/O
EKPB2-BG65	EKPB2-EG65	Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG03	EKPB2-EG03	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG33	EKPB2-EG33	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG53	EKPB2-EG53	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG73	EKPB2-EG73	Pushbutton Rotary with Key type Black 2N/O
EKPB2-BL8325	EKPB2-EL8325	Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BL8425	EKPB2-EL8425	Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BW8365	EKPB2-EW8365	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8465	EKPB2-EW8465	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8375	EKPB2-EW8375	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8475	EKPB2-EW8475	Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BC21	EKPB2-EC21	Pushbutton Mushroom type Black N/O
EKPB2-BC31	EKPB2-EC31	Pushbutton Mushroom type Green N/O
EKPB2-BC42	EKPB2-EC42	Pushbutton Mushroom type Red N/O
EKPB2-BC51	EKPB2-EC51	Pushbutton Mushroom type Yellow N/O
EKPB2-BC21	EKPB2-ER21	Pushbutton Mushroom type Black N/O
EKPB2-BC31	EKPB2-ER31	Pushbutton Mushroom type Green N/O
EKPB2-BC42	EKPB2-ER42	Pushbutton Mushroom type Red N/C
EKPB2-BC51	EKPB2-ER51	Pushbutton Mushroom type Yellow N/C
EKPB2-BS442	EKPB2-ES442	Pushbutton Mushroom type Red N/C
EKPB2-BS542	EKPB2-ES542	Pushbutton Mushroom type Red N/C
EKPB2-BS642	EKPB2-ES642	Pushbutton Mushroom type Red N/C
EKPB2-BT42		Pushbutton Mushroom type Red N/C
EKPB2-BT845		Pushbutton Mushroom type Red N/O+N/C
EKPB2-BS142	EKPB2-ES142	Pushbutton Mushroom with Key type Red N/C
EKPB2-BS8445	EKPB2-ES8445	Pushbutton Mushroom with Key type Red N/O+N/C
EKPB2-BV61	EKPB2-EV61	Pushbutton Indicator Light Type White Directness
EKPB2-BV63	EKPB2-EV63	Pushbutton Indicator Light Type Green Directness
EKPB2-BV64	EKPB2-EV64	Pushbutton Indicator Light Type Red Directness
EKPB2-BV65	EKPB2-EV65	Pushbutton Indicator Light Type Yellow Directness
EKPB2-BV66	EKPB2-EV66	Pushbutton Indicator Light Type Blue Directness
EKPB2-BV71	EKPB2-EV71	Pushbutton Indicator Light Type White Resistance
EKPB2-BV73	EKPB2-EV73	Pushbutton Indicator Light Type Green Resistance
EKPB2-BV74	EKPB2-EV74	Pushbutton Indicator Light Type Red Resistance
EKPB2-BV75	EKPB2-EV75	Pushbutton Indicator Light Type Yellow Resistance
EKPB2-BV76	EKPB2-EV76	Pushbutton Indicator Light Type Blue Resistance
EKPB2-BW3161	EKPB2-EW3161	Pushbutton With Indicator type White N/O
EKPB2-BW3361	EKPB2-EW3361	Pushbutton With Indicator type Green N/O
EKPB2-BW3462	EKPB2-EW3462	Pushbutton With Indicator type Red N/C
EKPB2-BW3561	EKPB2-EW3561	Pushbutton With Indicator type Yellow N/O
EKPB2-BW3661	EKPB2-EW3661	Pushbutton With Indicator type Blue N/O
EKPB2-BW3365	EKPB2-EW3365	Pushbutton With Indicator type Green N/O+N/C
EKPB2-BW3465	EKPB2-EW3465	Pushbutton With Indicator type Red N/O+N/C
EKPB2-BK2365	EKPB2-EK2365	Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK2465	EKPB2-EK2465	Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BK3365	EKPB2-EK3365	Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK3465	EKPB2-EK3465	Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BZ101	EKPB2-EZ101	Bracket with Contact N/O
EKPB2-BZ103	EKPB2-EZ103	Bracket with Contact N/O+N/C
EKPB2-BZ105	EKPB2-EZ105	Bracket with Contact N/O+N/C
EKPB2-BZ102	EKPB2-EZ102	Bracket with Contact N/C
EKPB2-BZ104	EKPB2-EZ104	Bracket with Contact N/C+N/C
EKPB2-BV6	EKPB2-EV6	Bottom Base seat
EKPB2-BW06	EKPB2-EW06	Bottom Base seat
EKPB2-BZ009	EKPB2-EZ009	Bracket only
EKPB2-BE102	EKPB2-ET42	Contact Block N/C
EKPB2-BE101	EKPB2-ET845	Contact Block N/O

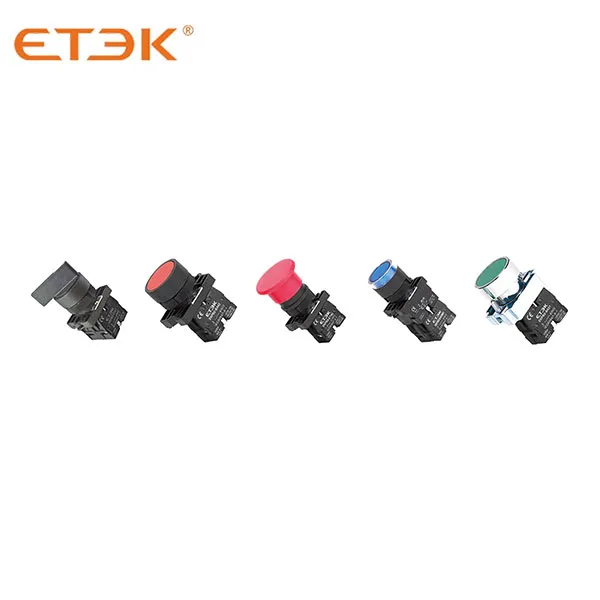

Plastic Type/Metal Type 22mm Push button Switch

Plastic Type/Metal Type 22mm Push button Switch

Porduct Overview

Description

Technical parameters

Technical Data

Product selection form

Download Files

Porduct Overview

Description

Technical parameters

Technical Data

Product selection form

Download Files

Recommend Products

Tripping Class 10 Adjustable Current Thermal Overload Relay

Motor Protection Circuit Breaker (MPCB)

16mm/22mm Panel Mount Signal Power Led Indicator AC/DC 12V/24V/48V/110V/220V Signal Warning Lamp

22mm Panel Installation LED Light Digital Display Voltmeter

Recommend Products

Tripping Class 10 Adjustable Current Thermal Overload Relay

Motor Protection Circuit Breaker (MPCB)

16mm/22mm Panel Mount Signal Power Led Indicator AC/DC 12V/24V/48V/110V/220V Signal Warning Lamp

22mm Panel Installation LED Light Digital Display Voltmeter

Plastic Type/Metal Type 22mm Push button Switch

Plastic Type/Metal Type 22mm Push button Switch

Porduct Overview

Description

Technical parameters

Technical Data

Product selection form

Download Files

Porduct Overview

Description

Technical parameters

Technical Data

Product selection form

Download Files

Recommend Products

Recommend Products

Get in Touch
