Porduct Overview

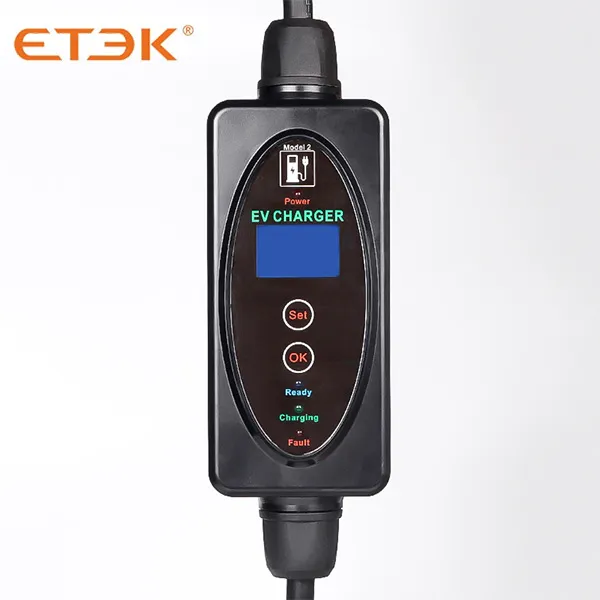

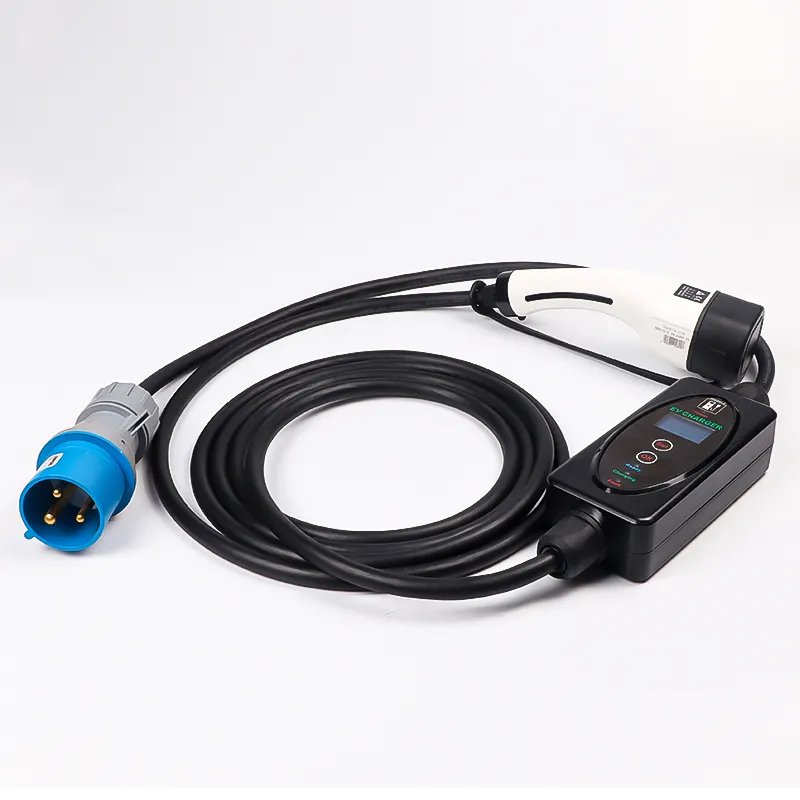

Portable EV chargers are also known as Mode 2 EV charging cables. It is usually carried with the car to facilitate the owner to charge in any charging condition. EKEC2 series portable electric vehicle chargers (3.7kW-7.3kW) are light in weight and stable in performance. Different types of charging plugs can be customized to charge your car. At the same time, the charger itself is resistant to falling and pressure. The waterproof performance is up to IP65, and it can work normally when immersed in water for a short time. It has multiple safety protection mechanisms such as overcurrent, overvoltage and overtemperature protection to ensure safe use.

Technical parameters

Technical Data

Model		Portable Charger (Model 2)
Model		EKEC2
Voltage & Power	Power Supply	1P+N+PE
	Rated Voltage	AC230V±10% 50Hz
	Output Current	6-16A、6-32A （adjustable)
	Output Voltage	AC230V±10% 50Hz
	Rated Power	Max:3.7KW、7.3KW
Connector	Charger Connector	Plug cable
	Connector Standard	T2: IEC/EN 62196-2, T1: SAE J1772, GB/T: GB/T20234.2-2015 Optional
	Charging Cable Length	4M (Length can customized)
	Power Plug	GB, UK, Schuko, CEE, NEMA 6-20, NZ, AU Optional
	Connector Material	Flame retardant, RoHS, Wear resistance, Rolling pressure resistance, High and low temperature resistance, Stamping resistance, High oil resistance, Ultraviolet rays' resistance
	Connector IP Degree	IP65
Protection	Over Temperature, Over/Under Voltage Protection, Over Current Protection, Residual Current Protection (AC30mA, DC6mA) RGB LED Light, LCD Screen, Current Selection.
Working Environment	Working Temperature	-25℃~50℃
	Working Humidity	3%~95%
	Working Altitude	<2000m
Other	Product IP Degree	IP65
	Certificate	CE
	Standard	IEC/EN 61851, GB/T 18487.1-2015

Mode 2 Single-phase AC Portable EV charger

ETEC2 series portable electric vehicle chargers (3.7kW-7.3kW) are light in weight and stable in performance. Different types of charging plugs can be customized to charge your car.
