ETEK EKP20/EKP20B/EKP7 German, UK, French style Modular Socket

Name: ETEK EKP20/EKP20B/EKP7 German, UK, French style Modular Socket
Brand: ETEK
SKU: 00065
Rating: 4.1 (83 reviews)

EKP20, EKP20B and EKP7 Modular Socket can be used together with our modular products for connection of mobile devices, tools or electric and electronic non- Modular equipment directly inside civil and industrial switchboards.

Inquire NOW PDF

ETEK EKP20/EKP20B/EKP7 German, UK, French style Modular Socket

Inquire NOW PDF

Porduct Overview

Technical parameters

Download Files

Porduct Overview

Description

ETEK EKP20, EKP20B and EKP7 Modular Socket can be used together with our modular products for connection of mobile devices, tools or electric and electronic non- Modular equipment directly inside civil and industrial switchboards.

Technical parameters

Technical Data

Main voltage	230/400V, 50Hz/60Hz
Electric life	5,000 times
Rated insulation voltage Ui	500V
Rated impulse withstand voltage Uimp	5,000V
Dielectric test voltage at ind. Freq. For 1 min.	2.8kV
Mounting category	II, III
Pollution degree	2
Protection class	IP20
Standard mounting	35mm DIN rail
Ambient temperature	-5℃ to +40℃
Storage temperature	-25℃ to +70℃

Dimensions

Product selection form

EKP20-10	Modular Socket Germany type 10A W=44.5mm

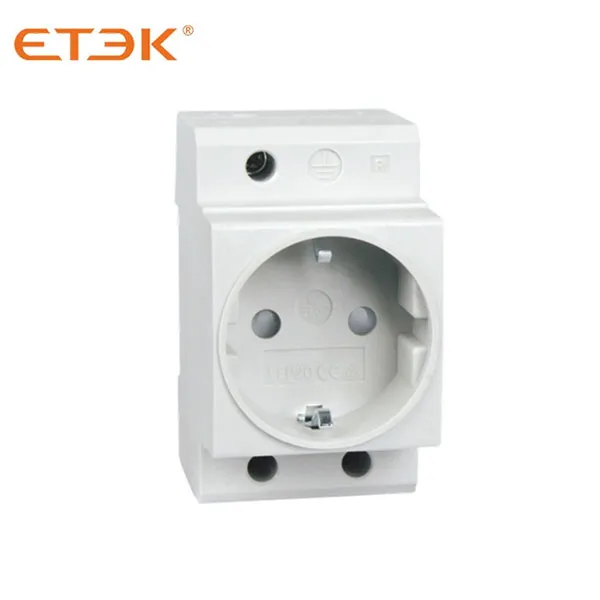

EKP20-16	Modular Socket Germany type 16A W=44.5mm
EKP20-25	Modular Socket Germany type 25A W=44.5mm

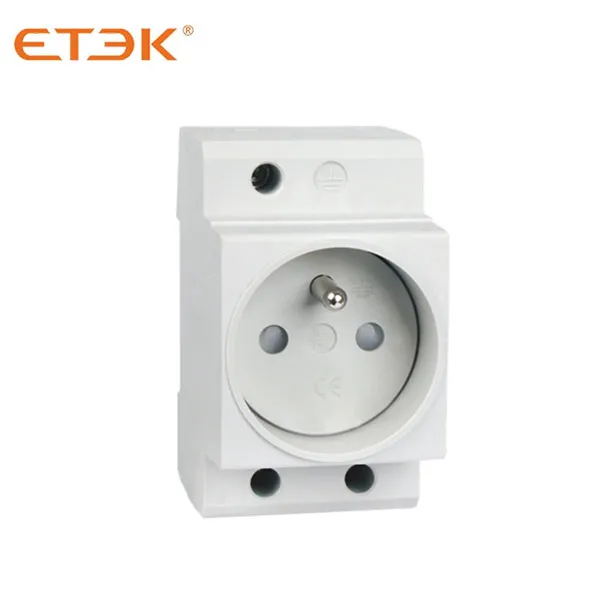

EKP7-10	Modular Socket France type 10A W=44.5mm
EKP7-16	Modular Socket France type 16A W=44.5mm
EKP7-25	Modular Socket France type 25A W=44.5mm
EKP30-16	Modular Socket China type 16A
EKP20-13B	Modular Socket UK type 13A W=44.5mm
EKP20-10AU	Modular Socket Austrian type 10A W=44.5mm
EKP20-16AU	Modular Socket Austrian type 16A W=44.5mm
