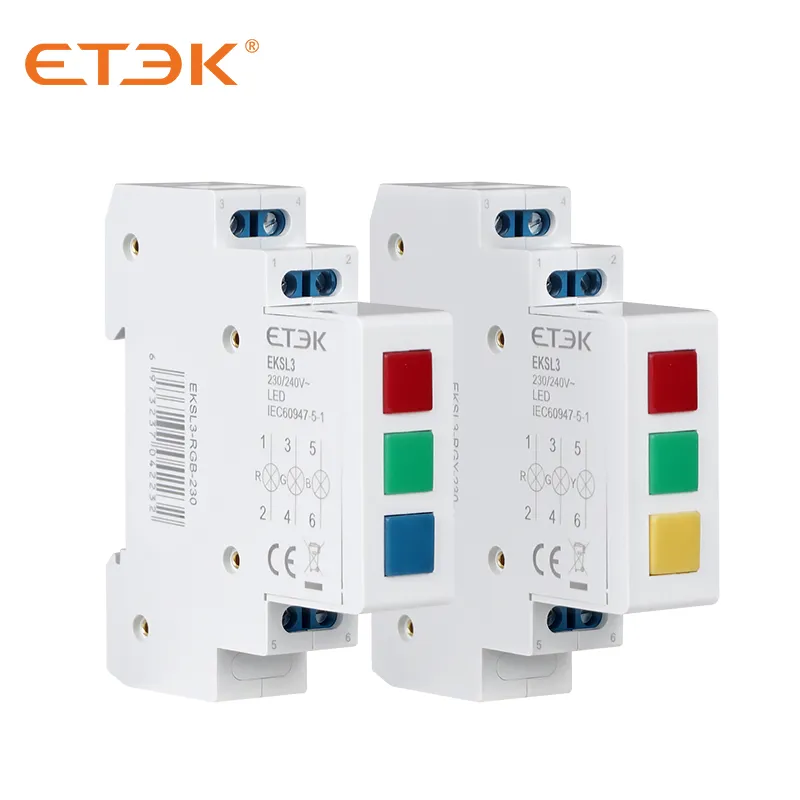

EKSL3-LED-Modular-Signal-Lamp-2EKSL3-LED-Modular-Signal-Lamp-2
EKSL1-Modular-Signal-Lamp-230VAC
EKSL1-Modular-Signal-Lamp-230VAC
EKSL3-LED-Modular-Signal-Lamp-2EKSL3-LED-Modular-Signal-Lamp-2

230VAC Modular Led Indicator

The Modular Signal Lamp is applicable to circuits with rated voltage 230V~and frequency 50/60Hz for visual indication and signaling. Low service duration, minimum power consumption, Compact design in modular size, Easy installation

Inquire NOW PDF

230VAC Modular Led Indicator

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

The Modular Signal Lamp is applicable to circuits with rated voltage 230V~and frequency 50/60Hz for visual indication and signaling.

Construction and Feature

Low service duration, minimum power consumption, Compact design in modular size, Easy installation

Technical parameters

Technical Data

Technical Data
Rated voltage 230V AC, 100V AC, 48V AC/DC, 24V AC/DC
Rated frequency 50/60Hz
Colour EKSL1 Red, green, yellow
EKSL3 Red/Green/Yellow, Red/Green/Blue
Connection terminal Pillar terminal with clamp
Connection capacity Rigid conductor 1.5mm
Installation On symmetrical DIN rail 35mm
Panel mounting
Max power 0.6W
Illumination LED
Service duration 30,000 hours

Dimensions

Circuit Diagram









Installation Size



EKSL1
EKSL3

Product selection form

Type Reference No. Specification
Single Color EKSL1-R-24 Modular Signal Lamp Red 24VAC/DC
EKSL1-G-24 Modular Signal Lamp Green 24VAC/DC
EKSL1-Y-24 Modular Signal Lamp Yellow 24VAC/DC
EKSL1-B-24 Modular Signal Lamp Blue 24VAC/DC
EKSL1-W-24 Modular Signal Lamp White 24VAC/DC
EKSL1-R-48 Modular Signal Lamp Red 48VAC/DC
EKSL1-G-48 Modular Signal Lamp Green 48VAC/DC
EKSL1-Y-48 Modular Signal Lamp Yellow 48VAC/DC
EKSL1-B-48 Modular Signal Lamp Blue 48VAC/DC
EKSL1-W-48 Modular Signal Lamp White 48VAC/DC
EKSL1-R-110 Modular Signal Lamp Red 110VAC
EKSL1-G-110 Modular Signal Lamp Green 110VAC
EKSL1-Y-110 Modular Signal Lamp Yellow 110VAC
EKSL1-B-110 Modular Signal Lamp Blue 110VAC
EKSL1-W-110 Modular Signal Lamp White 110VAC
EKSL1-R-230 Modular Signal Lamp Red 230VAC
EKSL1-G-230 Modular Signal Lamp Green 230VAC
EKSL1-Y-230 Modular Signal Lamp Yellow 230VAC
EKSL1-B-230 Modular Signal Lamp Blue 230VAC
EKSL1-W-230 Modular Signal Lamp White 230VAC

Tri-color

 EKSL3-RGY-24 Modular Signal Lamp Red/Green/Yellow 24VAC/DC
EKSL3-RGY-48 Modular Signal Lamp Red/Green/Yellow 48VAC/DC
EKSL3-RGY-110 Modular Signal Lamp Red/Green/Yellow 110VAC
EKSL3-RGY-230 Modular Signal Lamp Red/Green/Yellow 230VAC
EKSL3-RGB-24 Modular Signal Lamp Red/Green/Blue 24VAC/DC
EKSL3-RGB-48 Modular Signal Lamp Red/Green/Blue 48VAC/DC
EKSL3-RGB-110 Modular Signal Lamp Red/Green/Blue 110VAC
EKSL3-RGB-230 Modular Signal Lamp Red/Green/Blue 230VAC
EKSL3-RYB-24 Modular Signal Lamp Red/Yellow/Blue 24VAC/DC
EKSL3-RYB-48 Modular Signal Lamp Red/Yellow/Blue 48VAC/DC
EKSL3-RYB-110 Modular Signal Lamp Red/Yellow/Blue 110VAC
EKSL3-RYB-230 Modular Signal Lamp Red/Yellow/Blue 230VAC
