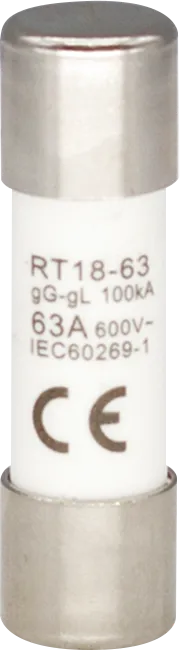

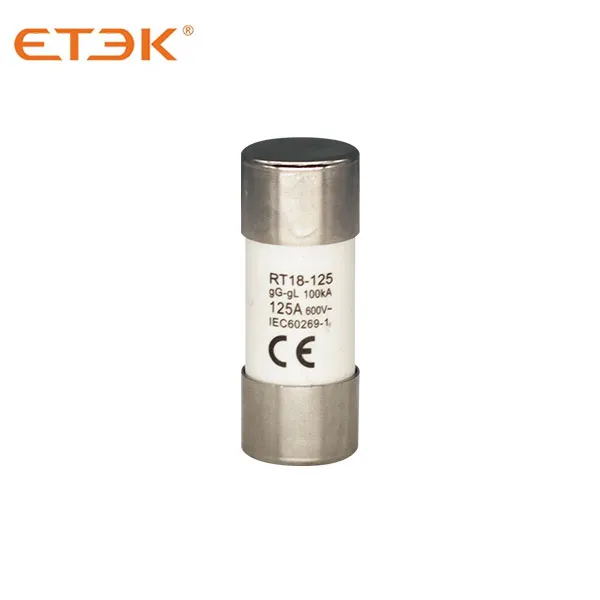

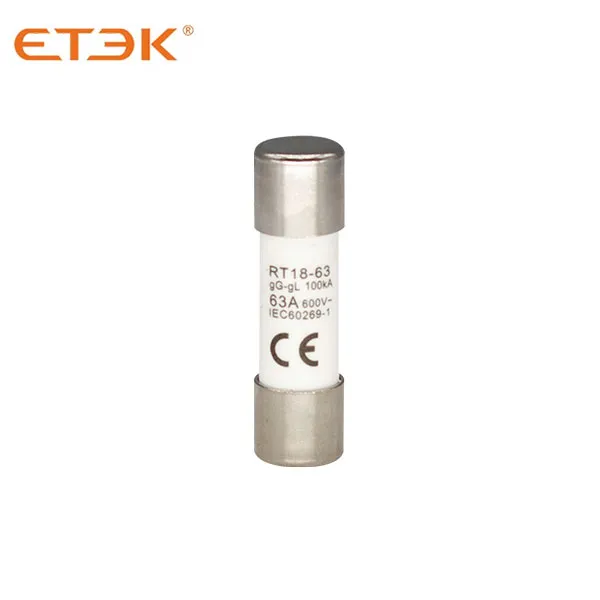

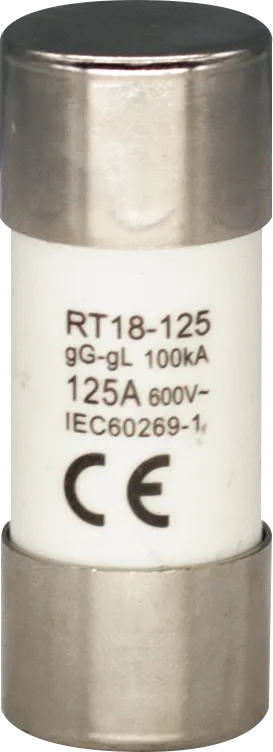

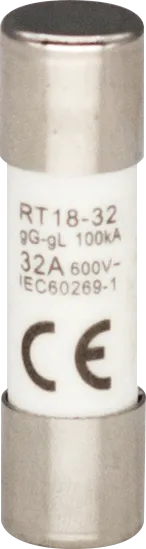

1. What is a fuse?

A fuse is a replaceable circuit protection device that provides protection to both the equipment and the equipment operator in the event of a circuit overload. It is commonly connected with a circuit in series, and when fault current increases to a certain value, the fuse blows out to cut off the circuit so as to fulfill an aim of protecting other equipment in the circuit. The fuse is the most commonly used component in an overcurrent protection circuit. The traditional fuse mainly consists of two parts of a tube body, of which both ends have metal connecting terminals, and metal melts in the tube body. The majority of fuses are cylinder-shaped, namely cartridge construction.

2. Fuse's function

The fuse can bear overload in a certain range when current fluctuation occurs because of power supply or external interference;

When bigger overload current appears in the circuit, the fuse should cut off the circuit in the set time so as to protect other electric parts in the circuit;

When very big current appears because of short circuit, the fuse can safely cut off the circuit so as to avoid damage by overload current.

Technical Data

Product selection form

Current Rating		Size & Mode No.
		10x38mm	14x51mm	22x58mm
1A		EKFL1001
2A		EKFL1002
4A		EKFL1004
6A		EKFL1006	EKFL1406
8A		EKFL1008	EKFL1408
10A		EKFL1010	EKFL1410
12A		EKFL1012	EKFL1412
16A		EKFL1016	EKFL1416
20A		EKFL1020	EKFL1420
25A		EKFL1025	EKFL1425	EKFL2225
32A		EKFL1032	EKFL1432	EKFL2232
40A			EKFL1440	EKFL2240
50A			EKFL1450	EKFL2250
63A			EKFL1463	EKFL2263
80A				EKFL2280
100A				EKFL22100
125A				EKFL22125
Breaking capacity	gG type AC 500V	120kA	120kA	120kA
	aM type AC 500V	100kA	100kA	100kA
	oR type AC 600V	100kA	100kA	100kA
Voltage Rating		AC 690V	AC 690	AC 690
Weight(g)		8.4	20.5	58
