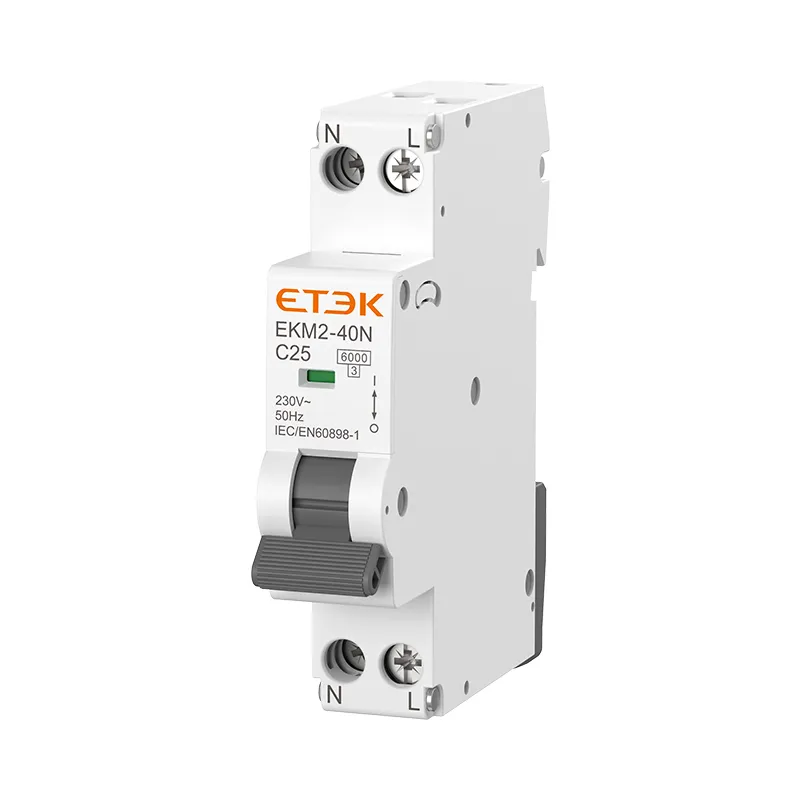

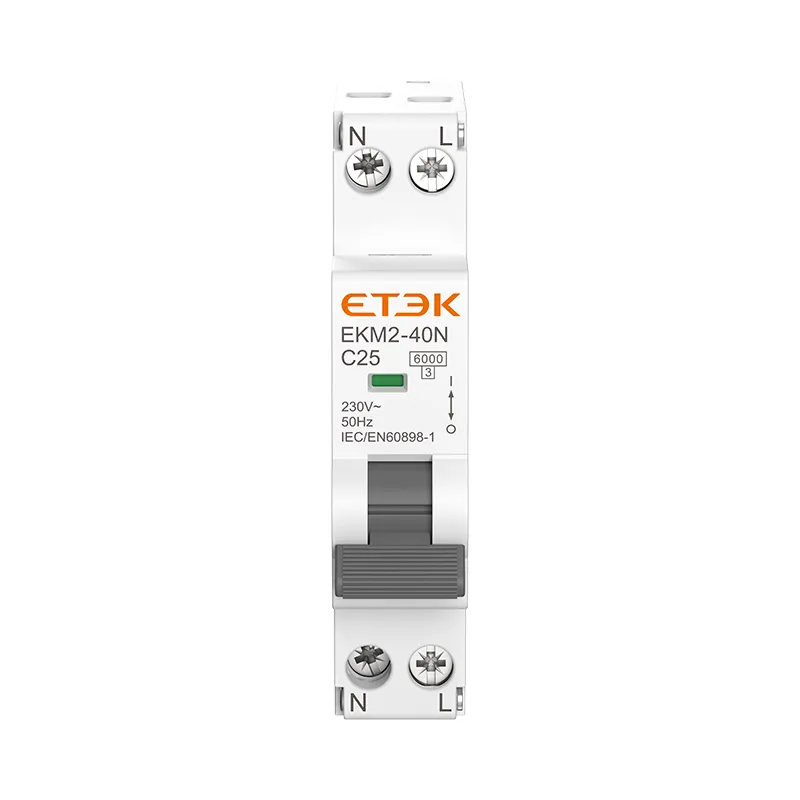

Single Pole and Neutral (1P+N) MCB Miniature Circuit Breaker

● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: 1P+N 1module
● Rated short-circuit breaking capacity: 6kA,10kA
● Tripping curve: B, C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom

Inquire NOW PDF
Tags: 6kA DPN MCB 40A MCB

Single Pole and Neutral (1P+N) MCB Miniature Circuit Breaker

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKM2-40N DPN Circuit Breaker is compact in structure and has two poles in the width of 18mm; The insulated casing of the circuit breaker is provided with a contact arc extinguishing system, a four-link quick acting mechanism and a thermal-electromagnetic tripping mechanism, and is suitable for a 35mm rail card type Installation, especially suitable for homes, shopping malls and other places.

Technical parameters

Technical Data

Standard IEC/EN60898-1
Protection
Overcurrent and short circuit
Type of trip
Thermo-magnetic
Rated Current In 6,10,16,20,25,32A
Poles 1P+N, N Pole on left
Rated voltage Ue 230/240V~
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated breaking capacity 6,000A, 10,000A
Energy limiting class 3
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at ind. Freq. for 1 min 2kV
Thermal release characteristic
(1.13-1.45) x In
Magnetic release characteristic
B:(3-5) x In, C:(5-10) x In, D:(10-20) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature
-5℃ to +40℃, Max.95%humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable
 10mm2
Max. tightening torque
 1.5N.m
Installation
Mounting on 35mm DIN rail
Connection
From top and bottom



Dimensions

Circuit Diagram





Installation size

Product selection form

Rated Current (A) B Curve C Curve D Curve
Breaking capacity 6KA
6A EKM2-40N-1B06 EKM2-40N-1C06 EKM2-40N-1D06
8A EKM2-40N-1B08 EKM2-40N-1C08 EKM2-40N-1D08
10A EKM2-40N-1B10 EKM2-40N-1C10 EKM2-40N-1D10
13A EKM2-40N-1B13 EKM2-40N-1C13 EKM2-40N-1D13
16A EKM2-40N-1B16 EKM2-40N-1C16 EKM2-40N-1D16
20A EKM2-40N-1B20 EKM2-40N-1C20 EKM2-40N-1D20
25A EKM2-40N-1B25 EKM2-40N-1C25 EKM2-40N-1D25
32A EKM2-40N-1B32 EKM2-40N-1C32 EKM2-40N-1D32
Breaking capacity 10KA
6A EKM2-40NH-1B06 EKM2-40NH-1C06 EKM2-40NH-1D06
8A EKM2-40NH-1B08 EKM2-40NH-1C08 EKM2-40NH-1D08
10A EKM2-40NH-1B10 EKM2-40NH-1C10 EKM2-40NH-1D10
13A EKM2-40NH-1B13 EKM2-40NH-1C13 EKM2-40NH-1D13
16A EKM2-40NH-1B16 EKM2-40NH-1C16 EKM2-40NH-1D16
20A EKM2-40NH-1B20 EKM2-40NH-1C20 EKM2-40NH-1D20
25A EKM2-40NH-1B25 EKM2-40NH-1C25 EKM2-40NH-1D25
32A EKM2-40NH-1B32 EKM2-40NH-1C32 EKM2-40NH-1D32



Download Files

Porduct Overview

EKM2-40N DPN Circuit Breaker is compact in structure and has two poles in the width of 18mm; The insulated casing of the circuit breaker is provided with a contact arc extinguishing system, a four-link quick acting mechanism and a thermal-electromagnetic tripping mechanism, and is suitable for a 35mm rail card type Installation, especially suitable for homes, shopping malls and other places.

Technical parameters

Download Files
