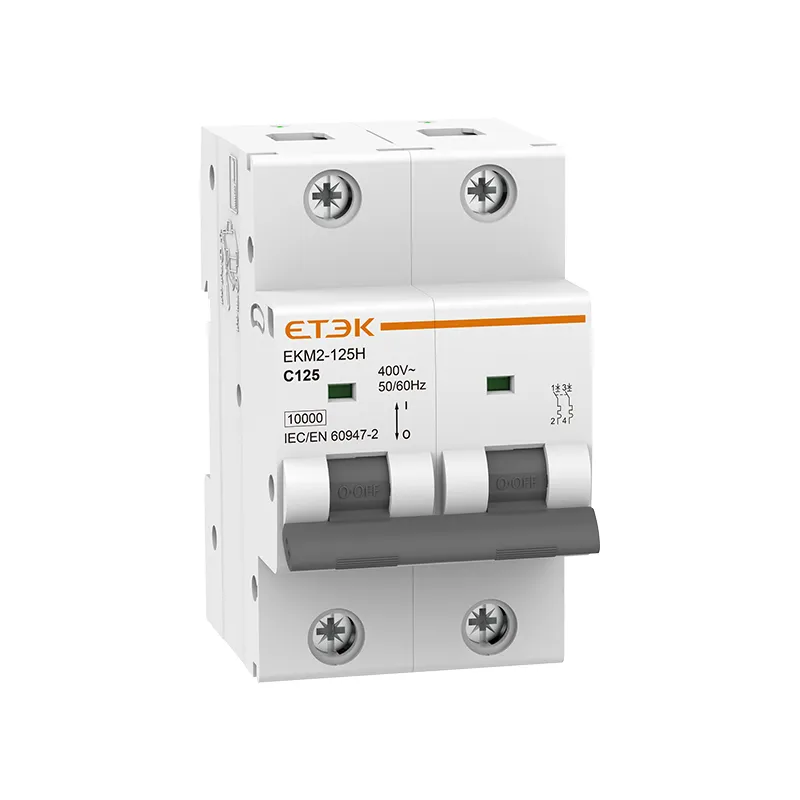

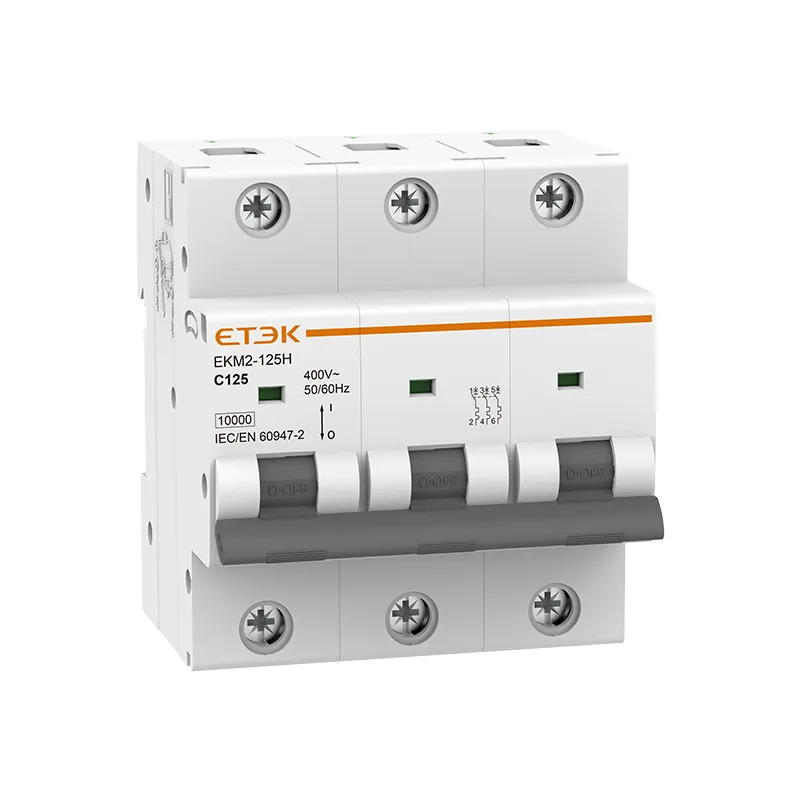

MCB 10kA High Current Miniature Circuit Breaker

EKM2-125H 10kA MCB, a high-performance miniature circuit breaker designed for superior protection and reliability. Ideal for residential, commercial, and industrial applications.

● Standard: IEC60898-1, IEC60947-2
● Type of trip: Thermo-magnetic
● Rated current: 63~125A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 6kA,10kA
● Tripping curve: C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE, UKCA

Inquire NOW PDF
Tags: 10kA breaking capacity 125A MCB

MCB 10kA High Current Miniature Circuit Breaker

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

EKM2-125H Circuit Breaker Suitable for high-voltage load places, high-current load protection and control, distribution line overload or short-circuit protection, manual control and segmentation, and residual current action protection accessories, no derating. It is also used in industry and large-scale construction.

Technical parameters

Technical Data

Standard IEC/EN60898-1 IEC/EN60947-2
Protection Overcurrent and short circuit
Type of trip Thermo-magnetic
Rated Current In 63A,80,100,125A
Poles 1P, 1P+N, 2P, 3P,3P+N, 4P
Rated voltage Ue 240/415V~
Rated frequency 50/60Hz
Rated breaking capacity 6,000A 10,000A
Rated impulse withstand voltage (1.2/50) Uimp 4,000V
Dielectric test voltage at ind. Freq. for 1 min 2kV
Thermal release characteristic (1.13-1.45) x In
(8-12) x In
Magnetic release characteristic C:(5-10) x In, D:(10-20) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature (with daily average≤35℃) -5℃~+40℃, Max. 95%humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable 50mm2
Max. tightening torque 3.5N.m
Installation Mounting on 35mm Din rail
Connection From top and bottom

Dimensions

Circuit Diagram

ETEK MCB Circuit Diagram



Installation size

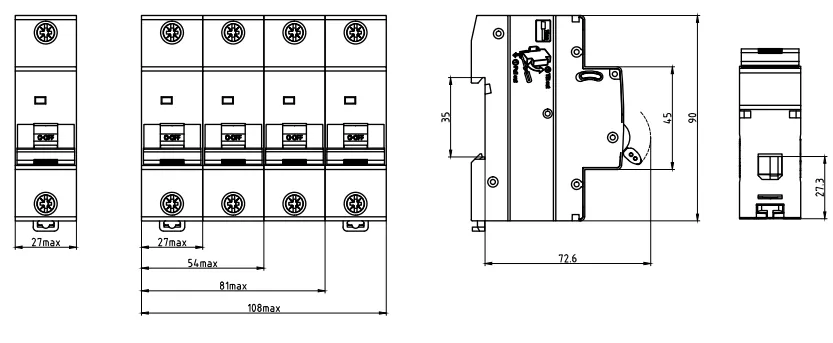

ETEK MCB EKM2-125H-Size



Product selection form

EKM1-125H 10KA Circuit Breaker
Poles Rated Current(A) Reference No.
1P 63A EKM2-125H-163
80A EKM2-125H-180
100A EKM2-125H-1100
125A EKM2-125H-1125
2P 63A EKM2-125H-263
80A EKM2-125H-280
100A EKM2-125H-2100
125A EKM2-125H-2125
3P 63A EKM2-125H-363
80A EKM2-125H-380
100A EKM2-125H-3100
125A EKM2-125H-3125
4P 63A EKM2-125H-463
80A EKM2-125H-480
100A EKM2-125H-4100
125A EKM2-125H-4125
