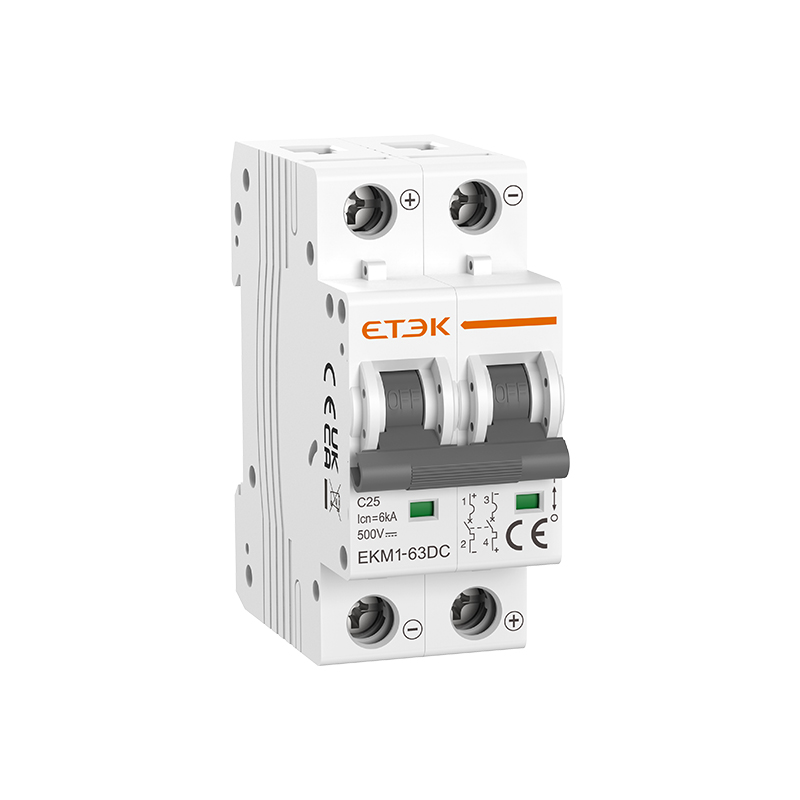

6KA DC MCB

EKM1-63DC the rated working voltage of DC circuit breakers specially used in photovoltaic can be as high as DC 1000V. The special arc extinguishing and current limiting system can quickly disconnect the fault current of the DC power distribution system. The photovoltaic module, an important component in solar power system, can avoid damage from high DC reverse current and AC feedback current caused by the inverter failure, ensuring a reliable operation of solar PV system.

● Standard: IEC60947-2
● Type of trip: Thermo-magnetic
● Rated current: 6~63A
● Rated voltage: 1P(250VDC), 2P(500VDC), 4P(1000VDC)
● Number of poles: 1P,2P,4P
● Rated short-circuit breaking capacity: 6kA
●Magnetic release characteristic: (8-12) x In
● Ambient air temperature: -5...+40 ºC
● Connection: According to the wiring diagram
● Certificates: CE, CB

Inquire NOW PDF
Tags: 63A MCB 1000V DC MCB

6KA DC MCB

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKM1-63DC Series MCB the rated working voltage of DC circuit breakers specially used in photovoltaic can be as high as DC 1000V. The special arc extinguishing and current limiting system can quickly disconnect the fault current of the DC power distribution system. The photovoltaic module, an important component in solar power system, can avoid damages from high DC reverse current and AC feedback current caused by the inverter failure, ensuring a reliable operation of solar PV system.

Technical parameters

Technical Data

Standard IEC/EN60947-2
Protection Overcurrent and short circuit
Type of trip Thermo-magnetic
No. of poles 1P,2P,4P
Rated currents (In) 6,10,16,20,25,32,40,50,63A
Rated voltage (Ue) 1P(250VDC), 2P(500VDC), 4P(1000VDC)
Rated insulation voltage (Ui) 500V
Rated breaking capacity 6,000A
Rated impulse withstand voltage (1.2/50) Uimp 4kV
Dielectric test voltage at Ind. Freq. for 1 min 3kV
Thermal release characteristic (1.05-1.30) x In
Magnetic release characteristic (8-12) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature -5℃ to +40℃, Max. 95% humidity
Terminal connection type Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable 25mm2
Max. tightening torque 2.5N.m
Installation Mounting on 35mm DIN rail
Connection According to the wiring diagram

Dimensions

Circuit Diagram



ekm1 63dc 6ka 10ka dc mcb 5



Installation size



ekm1 63dc 6ka 10ka dc mcb 6

Product selection form

Poles Rated Current(A) B Curve C Curve IEC60947-2
  Breaking capacity 6KA
1P(250VDC) 6A EKM1-63DC-1B06 EKM1-63DC-1C06 EKM1-63DC-106
10A EKM1-63DC-1B10 EKM1-63DC-1C10 EKM1-63DC-110
16A EKM1-63DC-1B16 EKM1-63DC-1C16 EKM1-63DC-116
20A EKM1-63DC-1B20 EKM1-63DC-1C20 EKM1-63DC-120
25A EKM1-63DC-1B25 EKM1-63DC-1C25 EKM1-63DC-125
32A EKM1-63DC-1B32 EKM1-63DC-1C32 EKM1-63DC-132
40A EKM1-63DC-1B40 EKM1-63DC-1C40 EKM1-63DC-140
50A EKM1-63DC-1B50 EKM1-63DC-1C50 EKM1-63DC-150
63A EKM1-63DC-1B63 EKM1-63DC-1C63 EKM1-63DC-163
2P (500VDC) 6A EKM1-63DC-2B06 EKM1-63DC-2C06 EKM1-63DC-206
10A EKM1-63DC-2B10 EKM1-63DC-2C10 EKM1-63DC-210
16A EKM1-63DC-2B16 EKM1-63DC-2C16 EKM1-63DC-216
20A EKM1-63DC-2B20 EKM1-63DC-2C20 EKM1-63DC-220
25A EKM1-63DC-2B25 EKM1-63DC-2C25 EKM1-63DC-225
32A EKM1-63DC-2B32 EKM1-63DC-2C32 EKM1-63DC-232
40A EKM1-63DC-2B40 EKM1-63DC-2C40 EKM1-63DC-240
50A EKM1-63DC-2B50 EKM1-63DC-2C50 EKM1-63DC-250
63A EKM1-63DC-2B63 EKM1-63DC-2C63 EKM1-63DC-263
4P (1000VDC) 6A EKM1-63DC-4B06 EKM1-63DC-4C06 EKM1-63DC-406
10A EKM1-63DC-4B10 EKM1-63DC-4C10 EKM1-63DC-410
16A EKM1-63DC-4B16 EKM1-63DC-4C16 EKM1-63DC-416
20A EKM1-63DC-4B20 EKM1-63DC-4C20 EKM1-63DC-420
25A EKM1-63DC-4B25 EKM1-63DC-4C25 EKM1-63DC-425
32A EKM1-63DC-4B32 EKM1-63DC-4C32 EKM1-63DC-432
40A EKM1-63DC-4B40 EKM1-63DC-4C40 EKM1-63DC-440
50A EKM1-63DC-4B50 EKM1-63DC-4C50 EKM1-63DC-450
63A EKM1-63DC-4B63 EKM1-63DC-4C63 EKM1-63DC-463
