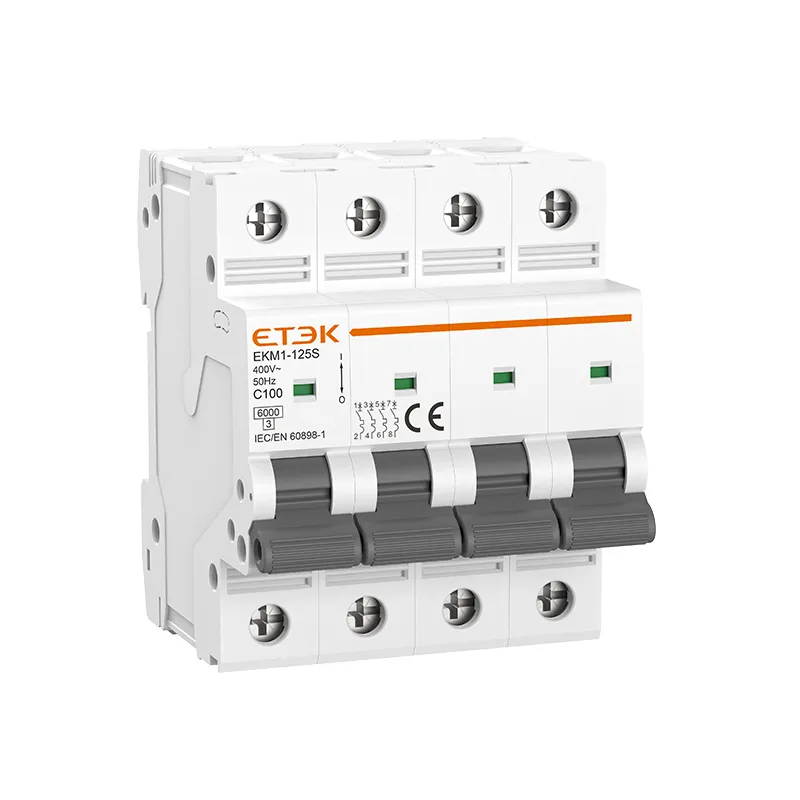

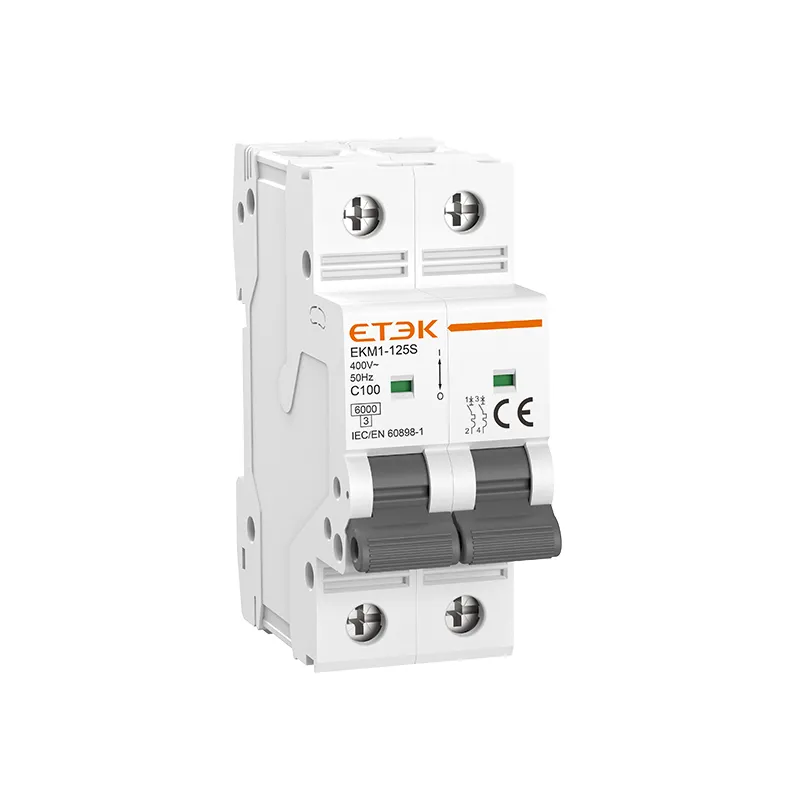

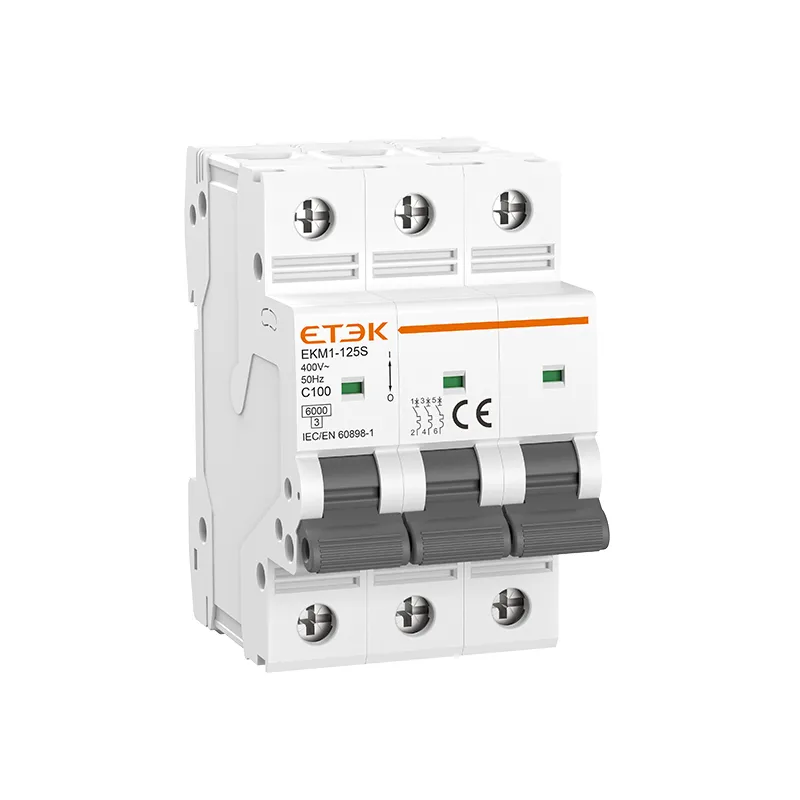

MCB 6kA Miniature Circuit Breaker

EKM1-125S Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity(6kA) and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 125A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.

Inquire NOW PDF
Tags: 63A MCB 6kA Breaking capacity

MCB 6kA Miniature Circuit Breaker

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKM1-125S Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity(6kA) and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 125A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.

Technical parameters

Technical Data

Standard IEC/EN60898-1
Protection Overcurrent and short circuit
Type of trip Thermo-magnetic
Rated Current In 63A,80,100,125A
Poles 1P, 1P+N, 2P, 3P,3P+N, 4P
Rated voltage Ue 240/415V~
Rated frequency 50/60Hz
Rated breaking capacity 6,000A
Rated impulse withstand voltage (1.5/50) Uimp 4,000V
Dielectric test voltage at ind. Freq. for 1 min 2kV
Thermal release characteristic (1.13-1.45) x In
Magnetic release characteristic C:(5-10) x In, D:(10-20) x In
Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature (with daily average≤35℃) -5℃~+40℃, Max. 95%humidity
Terminal connection type Cable/Pin-type busbar
Max. terminal size for cable 50mm2
Max. tightening torque 3.5N.m
Installation Mounting on 35mm Din rail
Connection From top and bottom

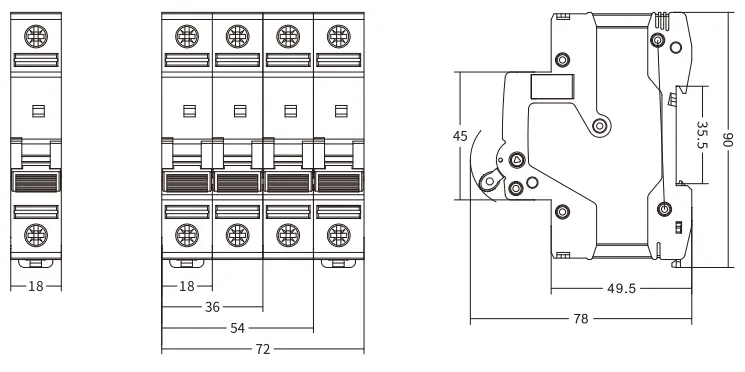

Dimensions

Circuit Diagram



Installation size

Product selection form

Poles Rated Current (A) C Curve D Curve
1P 63 EKM1-125S-1C63 EKM1-125S-1D63
80 EKM1-125S-1C80 EKM1-125S-1D80
100 EKM1-125S-1C100 EKM1-125S-1D100
125 EKM1-125S-1C125 EKM1-125S-1D125
2P 63 EKM1-125S-2C63 EKM1-125S-2D63
80 EKM1-125S-2C80 EKM1-125S-2D80
100 EKM1-125S-2C100 EKM1-125S-2D100
125 EKM1-125S-2C125 EKM1-125S-2D125
3P 63 EKM1-125S-3C63 EKM1-125S-3D63
80 EKM1-125S-3C80 EKM1-125S-3D80
100 EKM1-125S-3C100 EKM1-125S-3D100
125 EKM1-125S-3C125 EKM1-125S-3D125
4P 63 EKM1-125S-4C63 EKM1-125S-4D63
80 EKM1-125S-4C80 EKM1-125S-4D80
100 EKM1-125S-4C100 EKM1-125S-4D100
125 EKM1-125S-4C125 EKM1-125S-4D125
