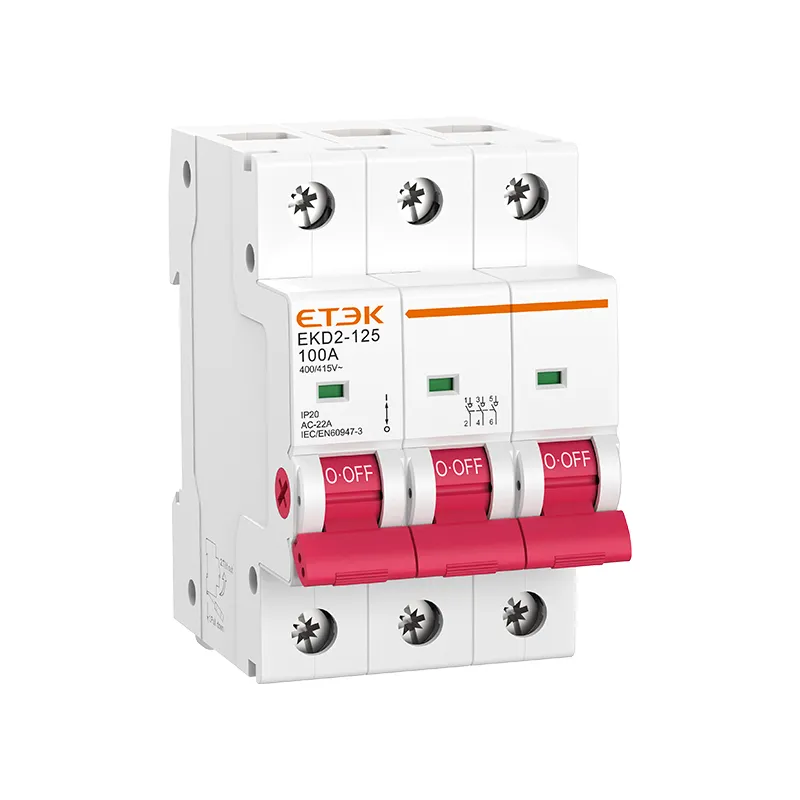

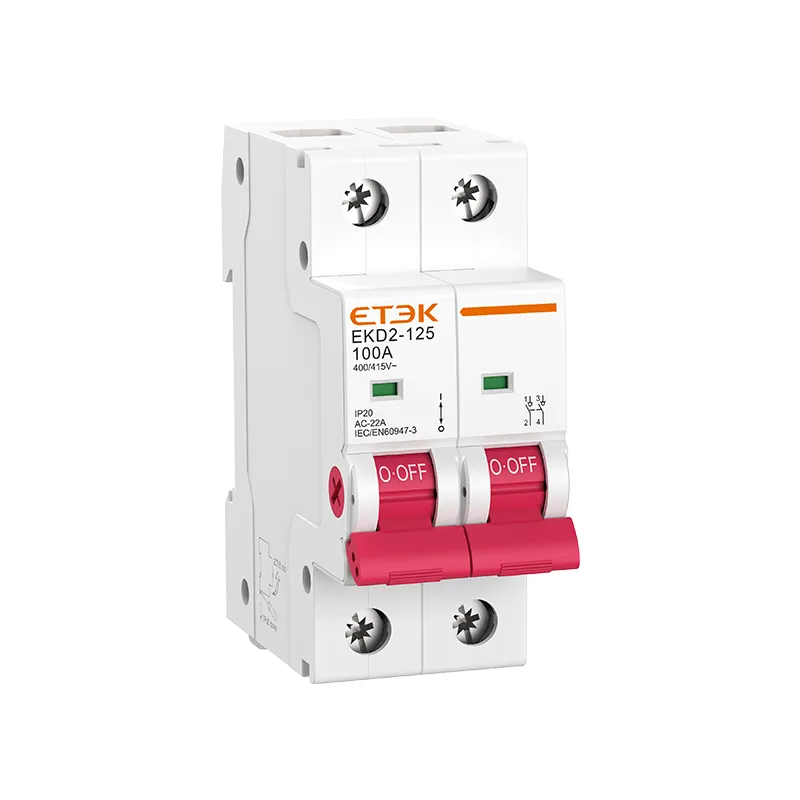

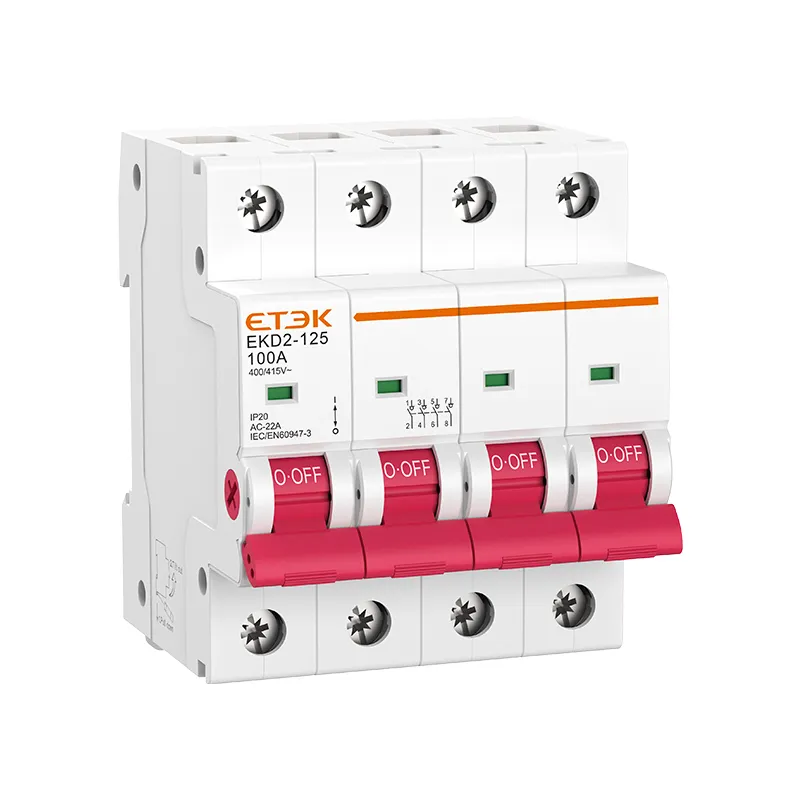

The EKD2-125 Isolator Switch is an essential component in electrical systems, designed to effectively isolate the power supply.

● Standard: IEC60947-3
● Rated current: 25~125A
● Rated voltage: 230/240V~ for 1P, 400/415V~ for 2, 3, 4P
● Number of poles: 1P,2P,3P,4P
● Utilization category: AC-22A
● Degree of protection: IP20(Normal installed)
● Connection: From top and bottom
● Certificates: CB, CE, UKCA, S

Inquire NOW PDF

Tags: Mini isolator switch 125A Main Switch

Main Switch Isolator Switch

Inquire NOW PDF

Porduct Overview

Technical parameters

Download Files

Porduct Overview

EKD2-125 Isolation Switch is suitable for AC 50Hz or 60Hz, rated current 125A, rated working voltage 230V and 400V or below in the power distribution; It is mainly used as the main switch of terminal electrical appliances and also control various types of electric motors, small power appliances and lighting places; Its mechanical life is 10,000 times, of which the electrical life is 4,000 times.

Technical parameters

Technical Data

Standard	IEC/EN60947-3
Rated Current In	25,32,40,50,63,80,100,125A
Poles	1P,2P,3P,4P
Rated voltage Ue	240/415V
Rated frequency	50/60Hz
Utilization category	AC-22A
Short-time withstand current Icw	12Ie, t=1s
Rated short circuit making capacity Icm	20le, t=0.1s
Rated making and breaking capacity	3Ie,1.05Ue, cosφ=0.65
Rated impulse withstands voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at ind.Freq. for 1min	2kV
Rated insulation voltage Ui	690V
Electrical life	2,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature (with daily average≤35℃)	-5℃~+40℃, Max.95%humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	50mm²
Max. Tightening torque	3.5Nm
Installation	Mounting on 35mmDIN rail
Connection	From top and bottom

Dimensions

Installation size
