EKM1-OF Auxiliary contacts,EKM1-FB Alarm Auxiliary Contact for EKM1 MCB
EKM1-OF Auxiliary contacts,EKM1-FB Alarm Auxiliary Contact for EKM1 MCB
EKM1-OF Auxiliary contacts,EKM1-FB Alarm Auxiliary Contact for EKM1 MCB

Auxiliary contacts, EKM1-FB Alarm Auxiliary Contact for EKM1 MCB

Mechanical Features "Electrical life 6,000 Cycles, Mechanical life 10,000 Cycles, Protection degree IP20, Ambient temperature (with daily average≤35℃) -5℃~+40℃, Storage temperature -25℃~+70℃

Inquire NOW PDF

Auxiliary contacts, EKM1-FB Alarm Auxiliary Contact for EKM1 MCB

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

Auxiliary contact: linked with ON, OFF mechanism of main circuit of circuit breaker, mainly used for indication of circuit breaker ON, OFF status. To connect it into control circuit of breaker, through ON and OFF of circuit breaker, the auxiliary contact can take control or interlock to related electrical device.

The Alarm Auxiliary accessory indicates when a Miniature Circuit Breaker or Supplementary Protector is tripped. A trip can be a result of an overload, short-circuit, operation of Shunt-trip accessory, or Undervoltage / Overvoltage module.

Technical parameters

Technical Data

Electrical Features
Rated value AC415/400V 50/60Hz 3A
AC240/400V 50/60Hz 3A
DC130V 1A
DC48V    2A
DC24V    6A
Configurations EKM1-OF 1N/O+1N/C
EKM1-FB 2N/O+2N/C
Rated impulse withstands voltage (1.2/50)Uimp 4,000V
Rated short circuit making capacity 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min 2kV
Insulation voltage Ui 500V
Pollution degree 2
Mechanical Features
Electrical life 6,000 Cycles
Mechanical life 10,000 Cycles
Protection degree IP20
Ambient temperature (with daily average≤35℃) -5℃~+40℃
Storage temperature -25℃~+70℃
Installation
Terminal connection type Cable
Terminal size top/bottom for cable 2.5mm2   18-13AWG
Tightening torque 0.8 Nm 7In-Ibs

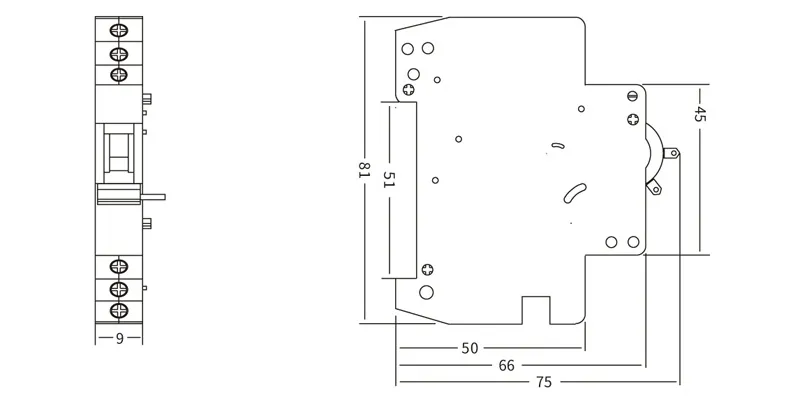

Dimensions

Download Files

Porduct Overview

Description

Auxiliary contact: linked with ON, OFF mechanism of main circuit of circuit breaker, mainly used for indication of circuit breaker ON, OFF status. To connect it into control circuit of breaker, through ON and OFF of circuit breaker, the auxiliary contact can take control or interlock to related electrical device.

The Alarm Auxiliary accessory indicates when a Miniature Circuit Breaker or Supplementary Protector is tripped. A trip can be a result of an overload, short-circuit, operation of Shunt-trip accessory, or Undervoltage / Overvoltage module.

Technical parameters

Download Files
