Technical parameters
Technical Data
Summary

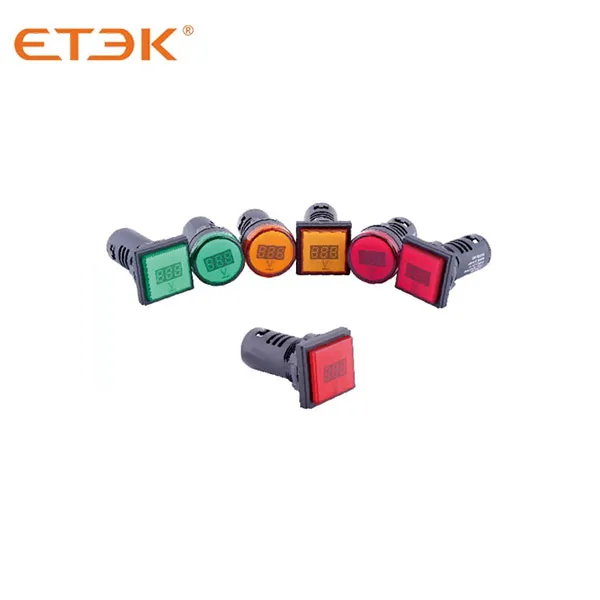

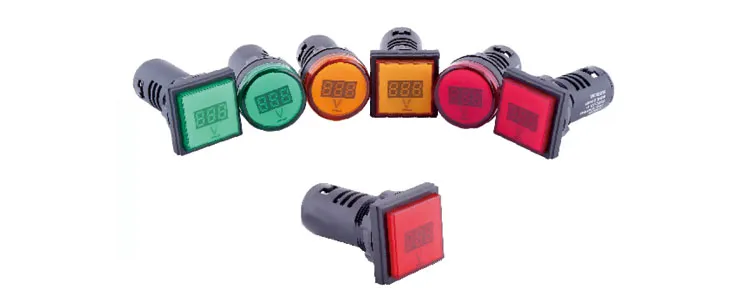

EKLV22 series products two-wire three-way AC, DC digital display voltage meter.
● Products use 2.5 inches long life LED digital tube display with compact square enclosure, convenient installation.
● Products measurement range AC 80V-500V, DC 5-120V, frequency 50/60Hz.
● Products use two wire system, AC connected in zero line and fire line directly,
● DC have polarity reverse connection protection function.
Working Condition
● Ambient temperature: -10 ~ +55℃
● Working pressure: 80-106KPa
● Air relative humidity: 10-80% (no condensation)
● Sunniness: no sunniness
Technical parameter
● Working voltage: AC 80-500V, DC 8-150V
● Working frequency: 50/60Hz
● Working current: ≤20MA
● Measuring accuracy: 1.0
● Measuring rate: <200MS/time
● Mounting-hole size: φ22mm

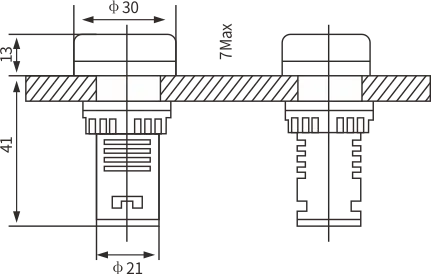

Dimensions
 Type Reference List |
|
Style
|
Name
|
Type
|
Color
|
Voltage
|
Outine Dimensions
|
 |
φ22 LED Voltage Meter
|
EKLV22-RAV
|
White |
AC80-500V
|
 |
| Green |
| Red |
| Yellow |
| Blue |
 |
φ22 LED Voltage Meter
|
EKLV22-SAV
|
White |
AC80-500V
|
 |
| Green |
| Red |
| Yellow |
| Blue |
 |
φ22 LED Voltage Meter |
EKLV22-RDV
|
White |
DC5-120V
|
 |
| Green |
| Red |
| Yellow |
| Blue |
 |
φ22 LED Voltage Meter |
EKLV22-SDV
|
White |
DC5-120V
|
 |
| Green |
| Red |
| Yellow |
| Blue |
Product selection form
| Reference No. |
Specification |
| EKLVA22-RAVA-500/50G |
LED Voltage Amper Meter 22mm Round type 80-500VAC 0-50A Green |
| EKLVA22-RAVA-500/50R |
LED Voltage Amper Meter 22mm Round type 80-500VAC 0-50A Red |
| EKLVA22-RAVA-500/50Y |
LED Voltage Amper Meter 22mm Round type 80-500VAC 0-50A Yellow |
| EKLVA22-RAVA-500/50B |
LED Voltage Amper Meter 22mm Round type 80-500VAC 0-50A Blue |
| EKLVA22-RAVA-500/50W |
LED Voltage Amper Meter 22mm Round type 80-500VAC 0-50A White |
| EKLVA22-SAVA-500/50G |
LED Voltage Amper Meter 22mm Square type 80-500VAC 0-50A Green |
| EKLVA22-SAVA-500/50R |
LED Voltage Amper Meter 22mm Square type 80-500VAC 0-50A Red |
| EKLVA22-SAVA-500/50Y |
LED Voltage Amper Meter 22mm Square type 80-500VAC 0-50A Yellow |
| EKLVA22-SAVA-500/50B |
LED Voltage Amper Meter 22mm Square type 80-500VAC 0-50A Blue |
| EKLVA22-SAVA-500/50W |
LED Voltage Amper Meter 22mm Square type 80-500VAC 0-50A White |
