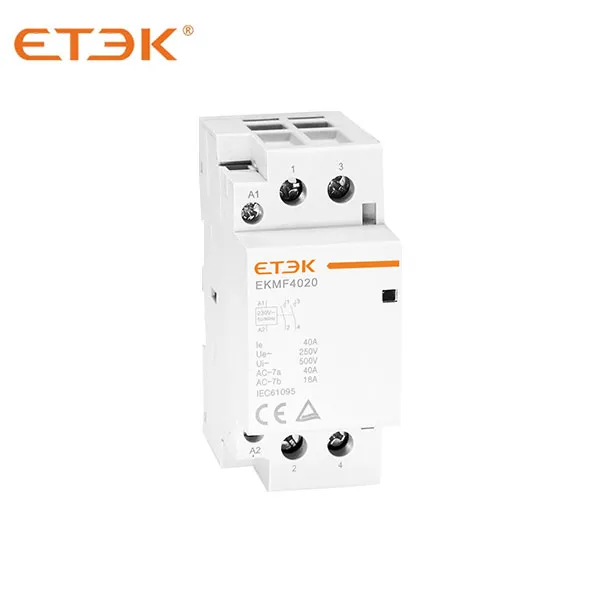

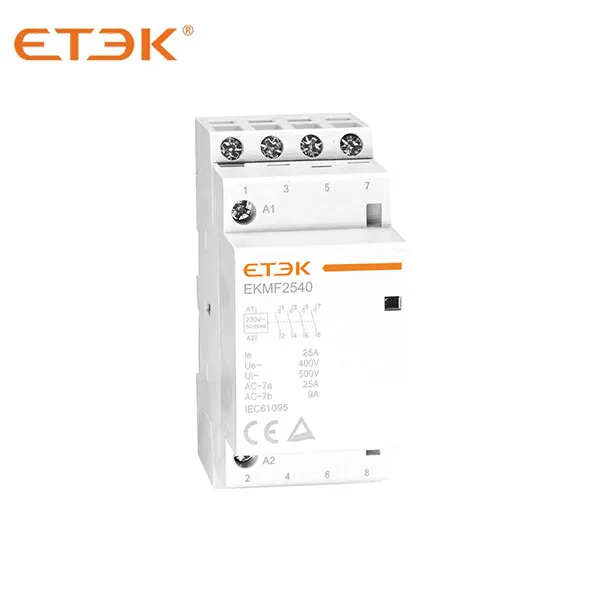

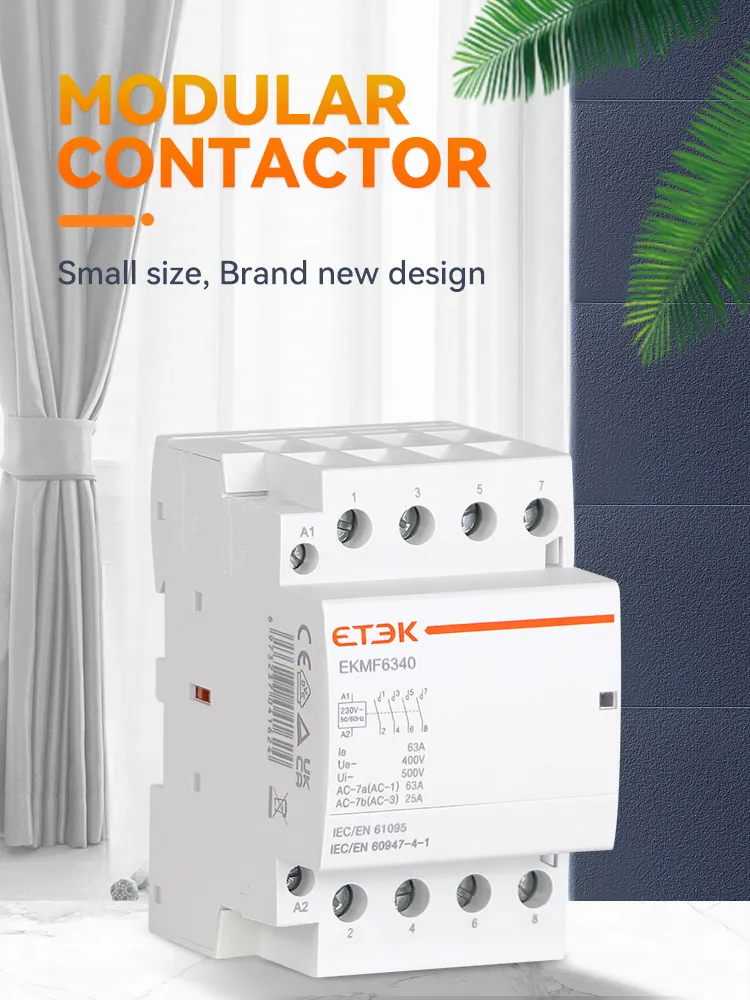

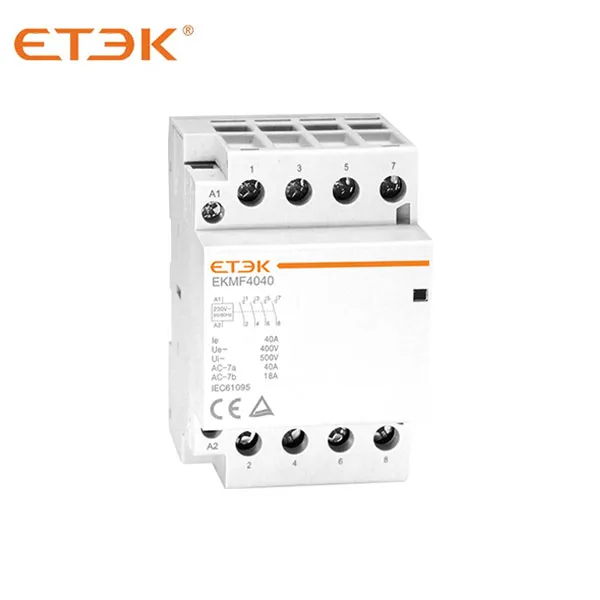

EKMF Automatic control Type AC Modular Contactor for EV charger

ETEK EKMF modular contactor designs offer manual and automatic versions with a wide range of ratings from 16A to 100A. Widely used in buildings for switching and controlling lighting, heating, ventilation, motor and pumps, the modular contactors take noise reduction to a new level.

Inquire NOW PDF

EKMF Automatic control Type AC Modular Contactor for EV charger

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

The modular contactor is a type of switching device that is used to control small capacity loads without making any hum during its operation. It can be mounted on to din rail. It is compact in size and can be used in small electrical enclosures and cabinets.

ETEK EKMF modular contactor designs offer manual and automatic versions with a wide range of ratings from 16A to 100A. Widely used in buildings for switching and controlling lighting, heating, ventilation, motor and pumps, the modular contactors take noise reduction to a new level.

Technical parameters

Technical Data

Electrical Features
Voltage rating (Ue) 1P, 2P  250V AC
3P, 4P 400V AC
Frequency 50/60Hz
Endurance(O-C)
Electrical life 100000
Maximum number of switching operation a day 100
Additional characteristics
Insulation voltage (Ui) 500V AC
Pollution degree 2
Rated impulse withstands voltage (Uimp) 2.5kV (4kV@ 12/24/48VAC)
Degree of protection (IEC 60529) IP20
IP40
Operating temperature -5℃~+60℃ (1)
Storage temperature -40℃~+70℃
Tropicalization (IEC 60068-1) Treatment 2(relative humidity 95% at 55℃)
ELSV compliance (Extra Low Safety Voltage) for 12/24/48VAC versions
The product control conforms to the SELV (safety extra low voltage) requirements
Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃and 60℃, it is necessary to use a spacer, between each contactor.



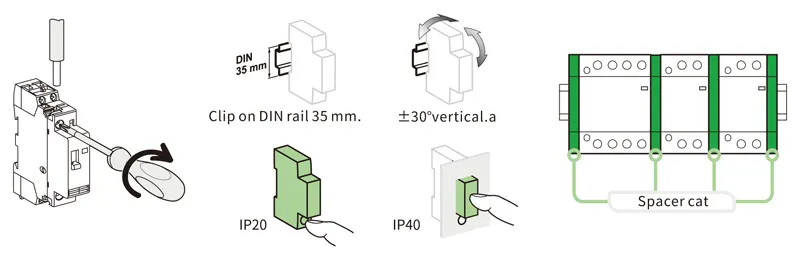

Connection
Type Rating Length Tripping Circuit Tightening torque Copper cables
Rigid Flexible or ferrule
  　 　 　 　 　 　
EKMF PZ1:4MM 16~100A 9mm Control 0.8N.m 1.5~2.5mm2
2×1.5mm2		 1.5~2.5mm2
2×2.5mm2
16~25A Power 1.5~6mm2 1~4mm2
PZ2:6MM 40A-63A 14mm 3.5N.m 6~25mm2 6~16mm2
100A 6×3.5mm2 6~35mm2





Consumption
  Rating (In) Control voltage (VAC) (50/60 Hz) Consumption Max. power
AC-7a AC-7b Holding Inrush
1P 16A 6A 230 2.8VA 11.5VA 1.2W
20A 7A 230 2.8VA 11.5VA 1.2W
25A 9A 230 2.8VA 11.5VA 1.2W
2P 16A 6A 230 2.8VA 11.5VA 1.2W
20A 7A 230 2.8VA 11.5VA 1.2W
25A 9A 240 3.0VA 11.5VA 1.3W
230 2.8VA 11.5VA 1.2W
32A 12A 230 4.1VA 31VA 1.6W
40A 18A 230 4.1VA 31VA 1.6W
63A 25A 230 4.1VA 31VA 1.6W
100A - 230 4.1VA 31VA 2.1W
3P 16A 6A 230 4.1VA 31VA 1.6W
20A 7A 230 4.1VA 31VA 1.6W
25A 9A 230 4.1VA 31VA 1.6W
32A 12A 230 7VA 48VA 2.1W
40A 18A 230 7VA 48VA 2.1W
63A 25A 230 7VA 48VA 2.1W
4P 16A 6A 230 4.1VA 31VA 1.6W
20A 7A 230 4.1VA 31VA 1.6W
25A 9A 240 4.8VA 33VA 1.6W
230 4.1VA 31VA 1.6W
32A 12A 230 7VA 48VA 2.1W
40A 18A 230 7VA 48VA 2.1W
63A 25A 230 7VA 48VA 2.1W
100A - 230 13VA 106VA 4.2W

Dimensions

Overall and Installation Dimension(mm)
EKMF-16/20/25A
EKMF-32/40/63A

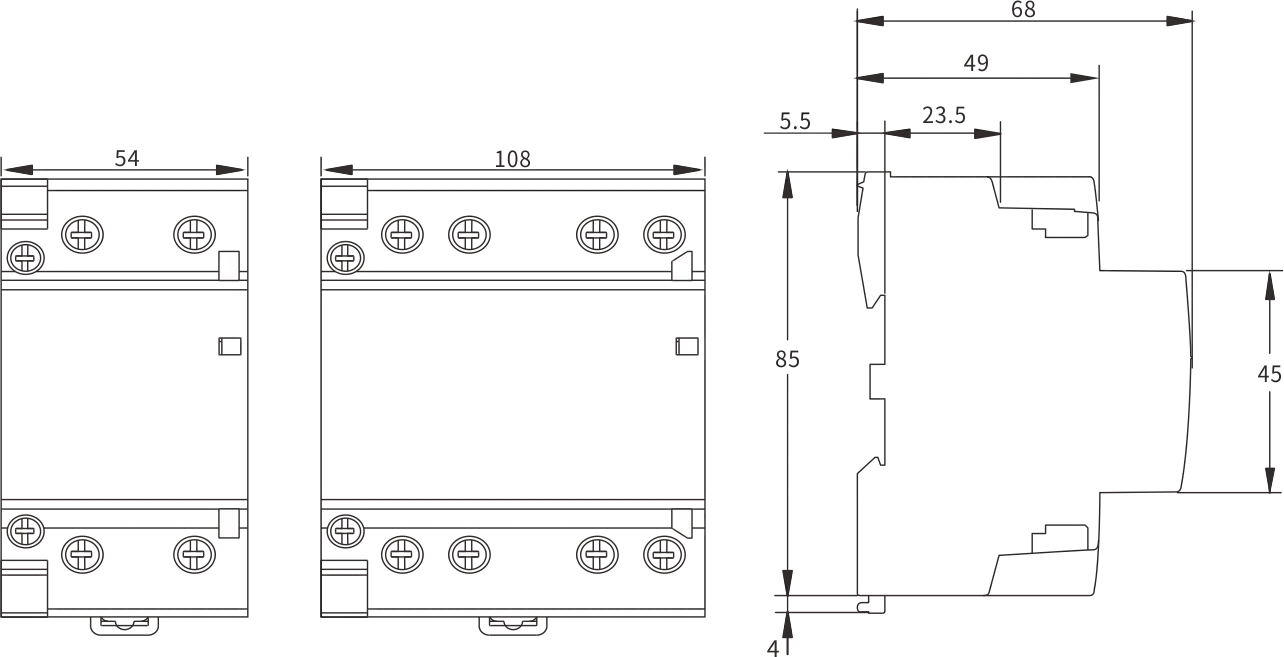

EKMF-80/100/125A
EACTs

Product selection form

EKMF Automatic Type Reference List
No.of Poles
Mode
Rating (In)
Rated voltage Ue (VAC)(50Hz)
Circuit Diagram
AC-7a
AC-7b
1P
EKMF-1610
16A
 6A
24
110
230
EKMF-2010
 20A 7A
EKMF-2510
 25A 9A
EKMF-1601
 16A 6A
EKMF-2001
 20A 7A
EKMF-2501 25A 9A
EKMF-3210
 32A 12A
EKMF-4010
 40A 18A
EKMF-6310
 63A 25A
EKMF-3201
 32A 12A
EKMF-4001
 40A 18A
EKMF-6301
 63A 25A
2P
EKMF-1620
 16A 6A
24
110
230
EKMF-2020
 20A 7A
EKMF-2520
 25A 9A
EKMF-1611
 16A 6A
EKMF-2011
 20A 7A
EKMF-2511
 25A 9A
EKMF-1602
 16A 6A
EKMF-2002
 20A 7A
EKMF-2502
 25A 9A
EKMF-3220
32A
 12A
EKMF-4020
 40A 18A
EKMF-6320
 63A 25A
EKMF-3211
 32A 12A
EKMF-4011
 40A 18A
EKMF-6311
 63A 25A
EKMF-3202
 32A 12A
EKMF-4002
 40A 18A
EKMF-6302
 63A 25A
EKMF-8020
 80A 32A
EKMF-10020
 100A 40A
EKMF-12520
 125A 50A
EKMF-8011
 80A  32A
EKMF-10011
 100A 40A
EKMF-12511
 125A 50A
EKMF-8002
 80A 32A
EKMF-10002
 100A 40A
EKMF-12502
 125A 50A
3P
EKMF-1630
 16A 6A
24
110
230
380
EKMF-2030
 20A 7A
EKMF-2530
 25A 9A
EKMF-1603
 16A 6A
EKMF-2003
 20A 7A
EKMF-2503
 25A 9A
EKMF-3230
 32A 12A
EKMF-4030
 40A 18A
EKMF-6330
 63A 25A
EKMF-3203
 32A 12A
EKMF-4003
 40A 18A
EKMF-6303
 63A 25A



































4P
EKMF-1640
 16A 6A
24
110
230
380
EKMF-2040
 20A 7A
EKMF-2540
 25A 9A
EKMF-1604
 16A 6A
EKMF-2004
 20A 7A
EKMF-2504
 25A 9A
EKMF-1622
 16A 6A
EKMF-2022
 20A 7A
EKMF-2522
 25A 9A
EKMF-1631
 16A 6A
EKMF-2031
 20A 7A
EKMF-2531
 25A 9A
EKMF-3240
 32A 12A
EKMF-4040
 40A 18A
EKMF-6340
 63A 25A
EKMF-3204
 32A 12A
EKMF-4004
 40A 18A
EKMF-6304
 63A 25A
EKMF-3222
 32A 12A
EKMF-4022
 40A 18A
EKMF-6322
 63A 25A
EKMF-3231
 32A 12A
EKMF-4031
 40A 18A
EKMF-6331
 63A 25A
EKMF-8040
 80A 32A
EKMF-10040
 100A 40A
EKMF-12540
 125A 50A
EKMF-8004
 80A 32A
EKMF-10004
 100A 40A
EKMF-12504
 125A 50A
EKMF-8022
 80A 32A
EKMF-10022
 100A 40A
EKMF-12522
 125A 50A
EKMF-8031
 80A 32A
EKMF-10031
 100A 40A
EKMF-12531
 125A 50A



Download Files

Porduct Overview

Description

The modular contactor is a type of switching device that is used to control small capacity loads without making any hum during its operation. It can be mounted on to din rail. It is compact in size and can be used in small electrical enclosures and cabinets.

ETEK EKMF modular contactor designs offer manual and automatic versions with a wide range of ratings from 16A to 100A. Widely used in buildings for switching and controlling lighting, heating, ventilation, motor and pumps, the modular contactors take noise reduction to a new level.

Technical parameters

Download Files

Recommend Products

ETEK-RCM-Residual-Current -Sensor

Type A & 6mA DC RCMU (Residual Current Monitor Unit)

Inquire
EKL6-100H-RCCB

EKL6-100H RCCB 10kA magnetic type Residual Current Circuit Breaker

Inquire

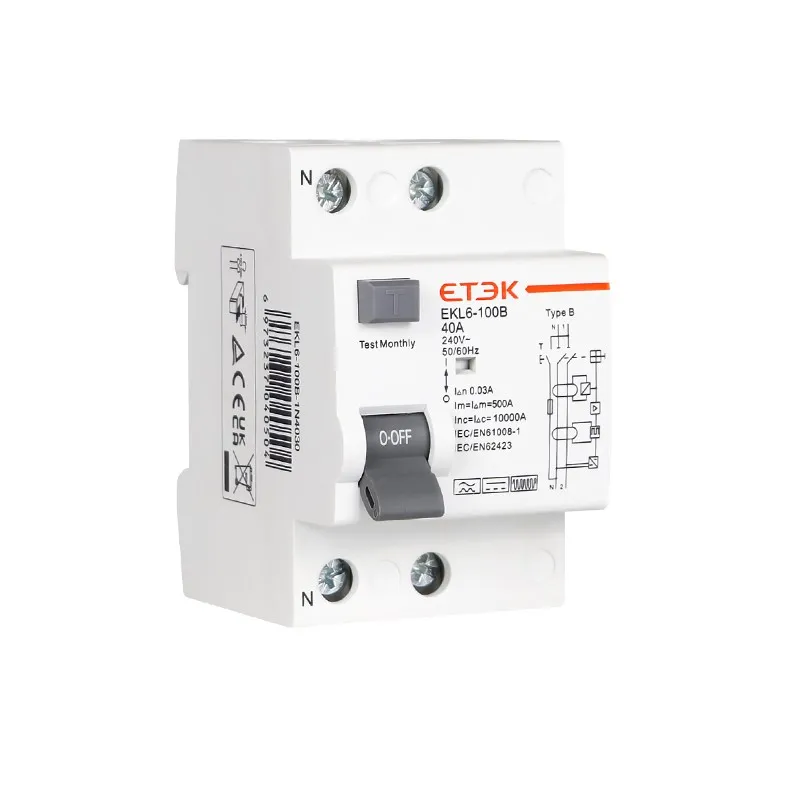

EKL6-100B 2P Type B RCCB RCD

EKL6-100B Din Rail 10kA Type B RCD RCCB for Electric Vehicle Charging

Inquire

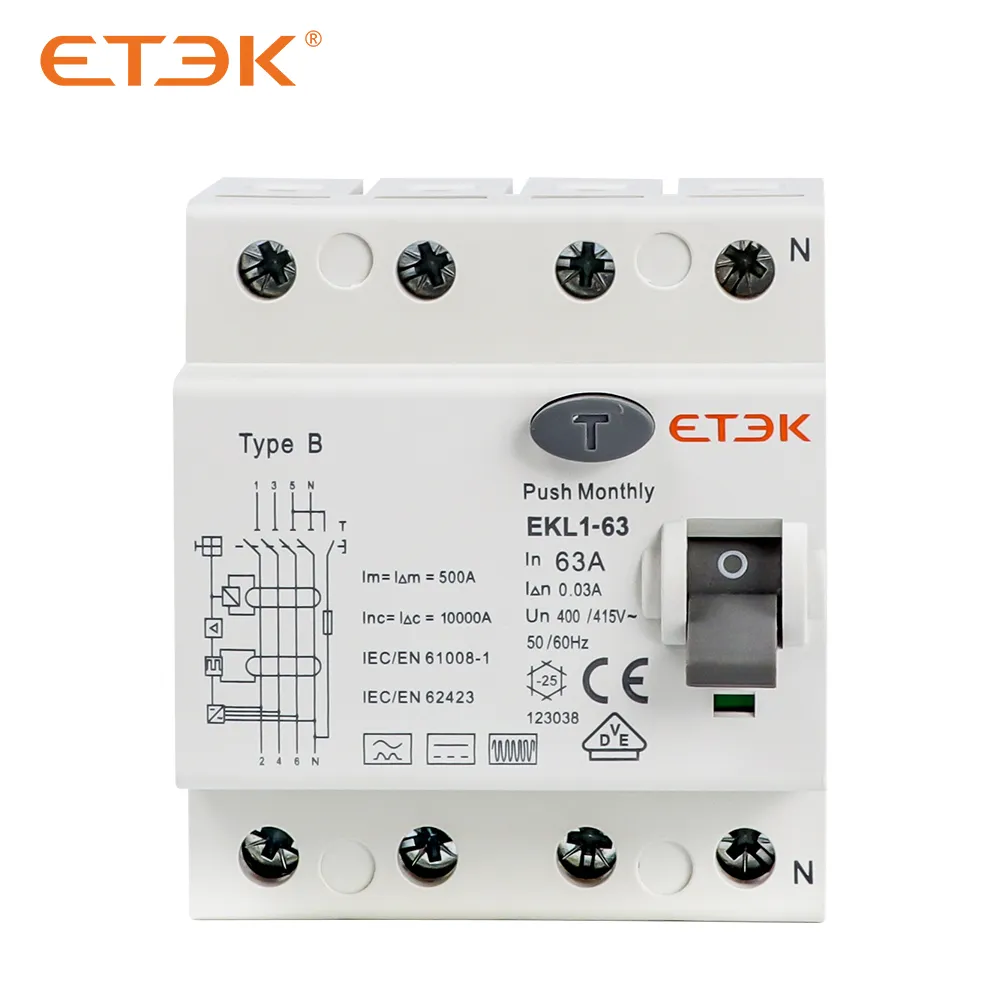

EKl1-63B Type B RCCB RCD
