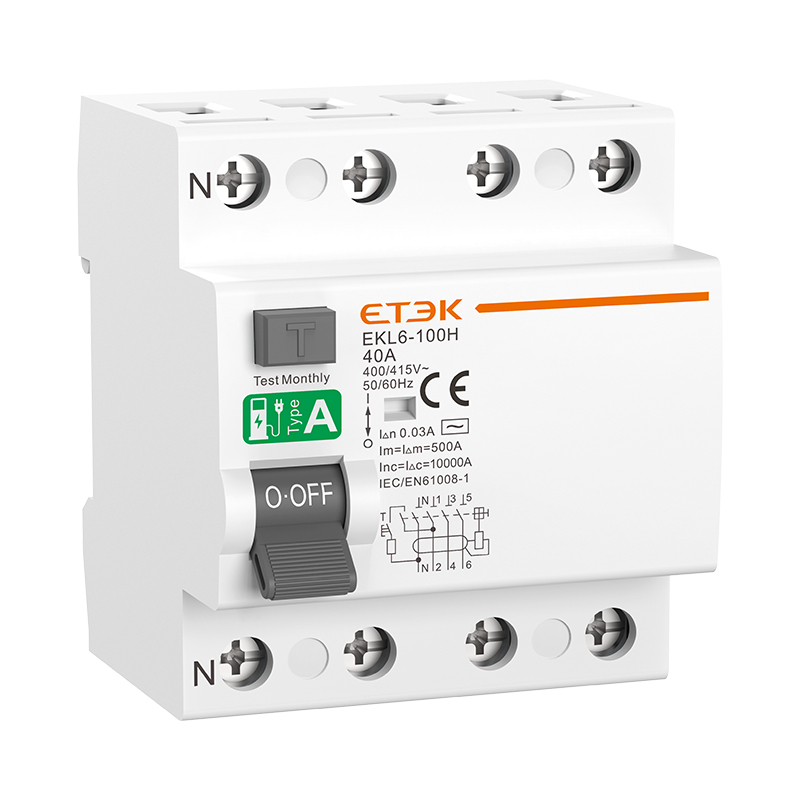

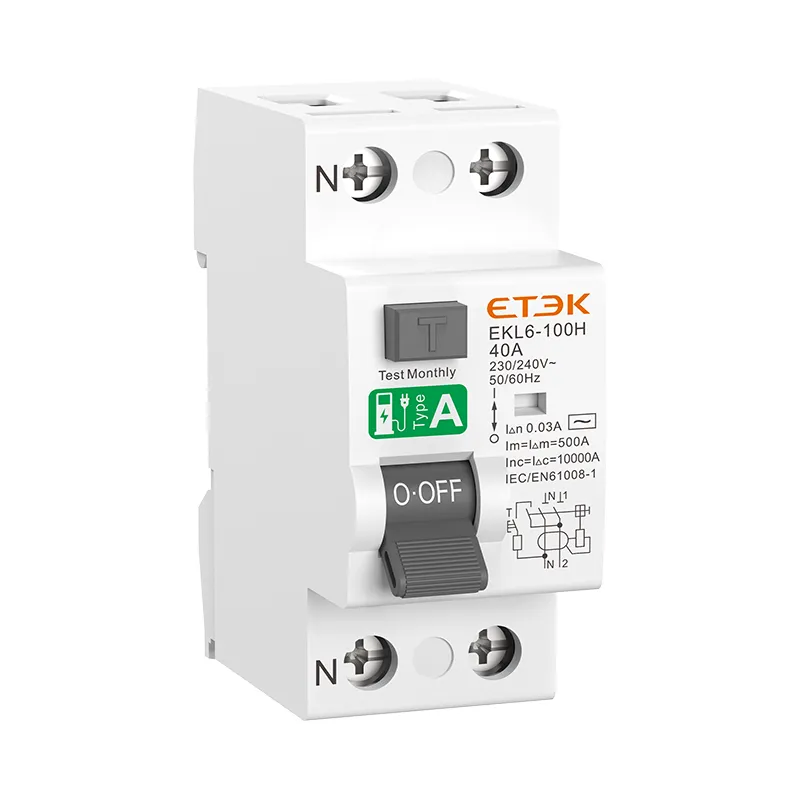

EKL6-100H RCCB 10kA magnetic type Residual Current Circuit Breaker

● Standard: IEC61008-1
● Type: A
● Rated current: 16~100A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on left
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Rated breaking capacity: 10kA
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB, TUV, UKCA

Inquire NOW PDF

EKL6-100H RCCB 10kA magnetic type Residual Current Circuit Breaker

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

EKL6-100H A Type Residual Current Circuit Breaker suitable for earth leakage protection of 16-100A AC distribution system, large terminal port 35mm², both sides can use Pin-type or Fork-type busbar; High safety performance, over 30 mA current, and power failure in 3 milliseconds; Independently developed and produced all parts and components independently.

Technical parameters

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

A

No. of poles

2P(1P+N), 4P(3P+N), N Pole on left
Rated current In 16,25,32,40,63,80,100A

Rated sensitivity currents I△n

10,30,100,300mA (10mA only for In=16-25A)

Residual current off-time under I△n

≤0.1s

Rated residual making and breaking capacity(I△m)

500A(In≤50A),10In (In>50A)
Rated voltage Ue

1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency 50/60Hz
Rated breaking capacity 10,000A
SCPD fuse 10000
Rated impulse withstands voltage (1.5/50) Uimp 4000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Ground fault indicator
Yes
Protection degree IP20
Ambient temperature

-25℃ to 40℃, Max.95% humidity
Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max. terminal size for cable

 35mm2

Max. tightening torque

 2.5N.m

Installation

Mounting on 35mm DIN rail
Connection

From top and bottom

Dimensions

Circuit Diagram

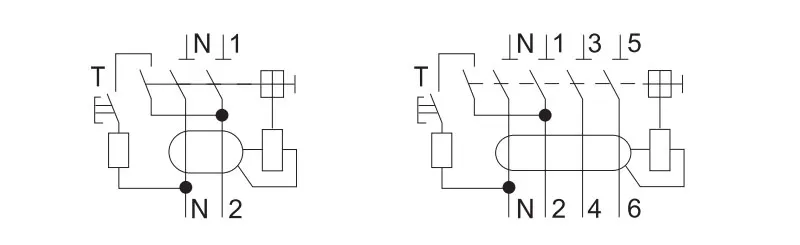

ETEK RCCB EKL6-100(H) Circuit Diagram

Installation size

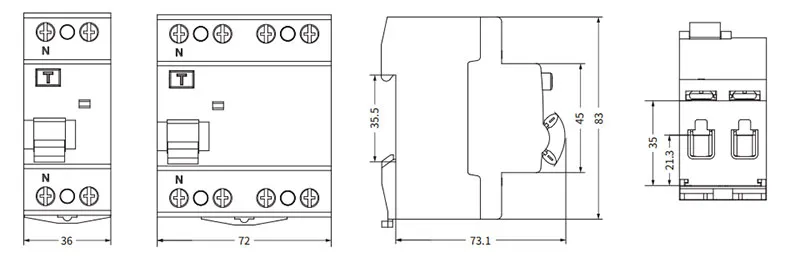

ETEK RCCB EKL6-100 Size

Product selection form

A Type
Breaking capacity Poles Rated Current(A) Sensitivity
30mA 100mA 300mA
10KA 1P+N 16A EKL6-100H-1N1630A EKL6-100H-1N16100A EKL6-100H-1N16300A
25A EKL6-100H-1N2530A EKL6-100H-1N25100A EKL6-100H-1N25300A
32A EKL6-100H-1N3230A EKL6-100H-1N32100A EKL6-100H-1N32300A
40A EKL6-100H-1N4030A EKL6-100H-1N40100A EKL6-100H-1N40300A
63A EKL6-100H-1N6330A EKL6-100H-1N63100A EKL6-100H-1N63300A
80A EKL6-100H-1N8030A EKL6-100H-1N80100A EKL6-100H-1N80300A
100A EKL6-100H-1N10030A EKL6-100H-1N100100A EKL6-100H-1N100300A
3P+N 16A EKL6-100H-3N1630A EKL6-100H-3N16100A EKL6-100H-3N16300A
25A EKL6-100H-3N2530A EKL6-100H-3N25100A EKL6-100H-3N25300A
32A EKL6-100H-3N3230A EKL6-100H-3N32100A EKL6-100H-3N32300A
40A EKL6-100H-3N4030A EKL6-100H-3N40100A EKL6-100H-3N40300A
63A EKL6-100H-3N6330A EKL6-100H-3N63100A EKL6-100H-3N63300A
80A EKL6-100H-3N8030A EKL6-100H-3N80100A EKL6-100H-3N80300A
100A EKL6-100H-3N10030A EKL6-100H-3N100100A EKL6-100H-3N100300A

Download Files

Porduct Overview

Description

EKL6-100H A Type Residual Current Circuit Breaker suitable for earth leakage protection of 16-100A AC distribution system, large terminal port 35mm², both sides can use Pin-type or Fork-type busbar; High safety performance, over 30 mA current, and power failure in 3 milliseconds; Independently developed and produced all parts and components independently.

Technical parameters

Download Files

Recommend Products

Type EV RCD EKL6-63EV

EKL6-63EV Type EV (A+DC6mA) RCCB Residual Current Breaker specifically designed for EV charging systems

Inquire
ETEK-RCM-Residual-Current -Sensor

Type A & 6mA DC RCMU (Residual Current Monitor Unit)

Inquire

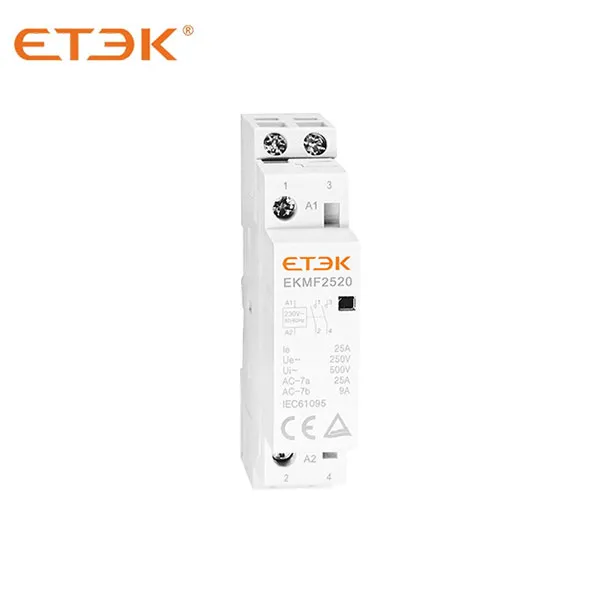

EKMF Automatic Type Modular Contactor
