AC EV Charger

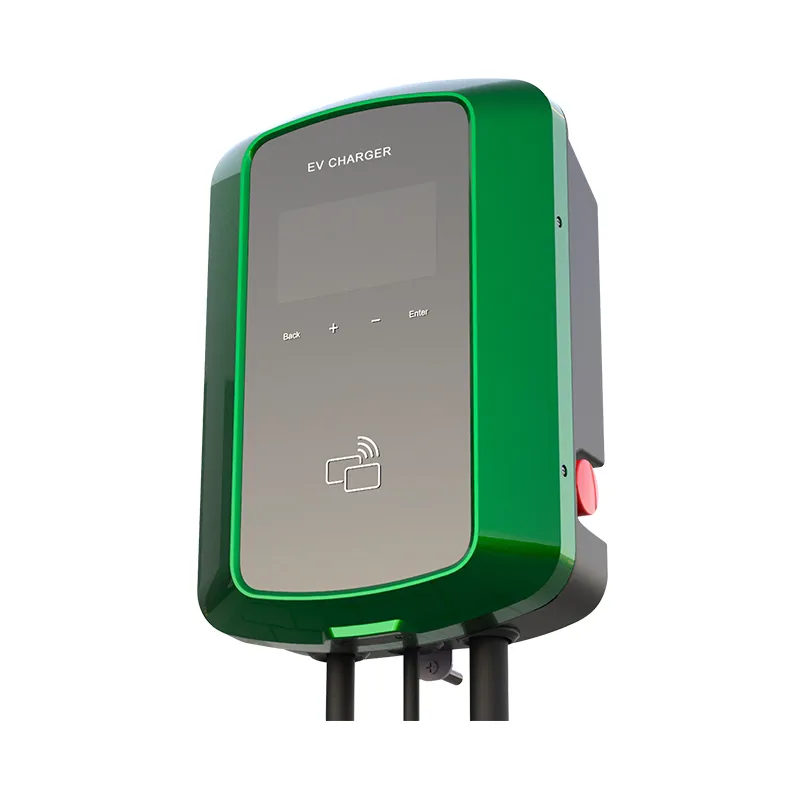

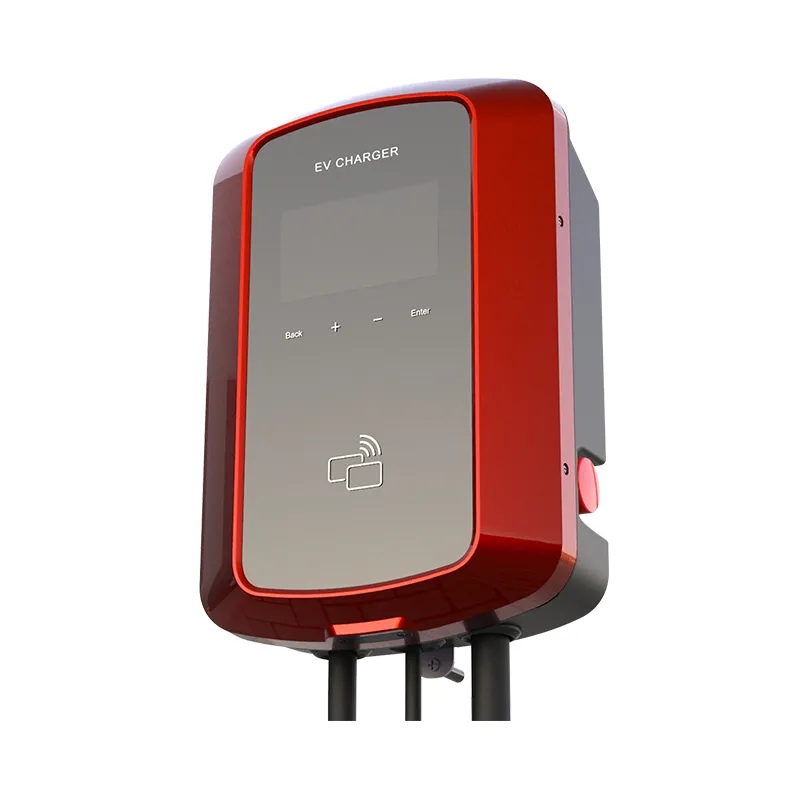

EKEC6 Series EV Charger adopts the latest appearance design and can be customized with different shell colors, it is a very convenient electric vehicle charger.

Inquire NOW PDF

Porduct Overview

EKEC6 Series EV Charger adopts the latest appearance design and can be customized with different shell colors, it is a very convenient electric vehicle charger.

With swipe card start and remote stop start, with rechargeable IC card
With overload protection, over voltage protection, under voltage protection, short, circuit protection, over temperature protection, emergency stop and other functions.
Equipped with a display screen to display SOC information in real time.
Convenient charging, plug and play.
There are also various installation options, with the option of wall-mounted or column-mounted installation depending on different EV charging scenarios. Simple installation and compact size make it easy for distributors to transport and store.

Technical parameters

Technical Data

EV Charging Modes	Mode 3 Charging
Rated Voltage	AC 240V±10%，AC 420V±10%
Rated Current	Max 16A, 32A
AC Power Output Rating	11kW, 22kW
Rated Frequency	50Hz
Over Voltage Category (OVC)	OVC III
Insulation Resistance	R>1MΩ
AC Withstand Voltage	1430V
Impulse Dielectric Withstand Voltage (1,2μs/50μs) (Uimp)	4kV
Protection Against Electric Shock	Class I
Electrical Life (Contactor）	100,000
Electrical Life (Interface)	100,000
Standby Power Consumption	<8W
Type of EV Connection	Case C (Cable Version)
Universal Interface	T1: SAE J1772, T2: IEC/EN 62196-2, GB/T:20234.2-2015
Pollution Degree	PD 3
IP Protection Class	IP54
Altitude During Operation (m)	<2000m
Altitude of Test Laboratory	<50m
Work Humidity	3%~95%
Operation Temperature	-25℃~55℃
Cooling	Natural Air Cooling
Mounting Method	Wall-Mounted / Ground-mounting Pole
Normal Environmental Conditions	Indoor or Outdoor
Product Dimension(mm)	33022597
Installation Dimension(mm)	272*210
The AC charging station needs an external MCB+type A type RCCB/Type A RCBO to be installed in the upstream distribution box.

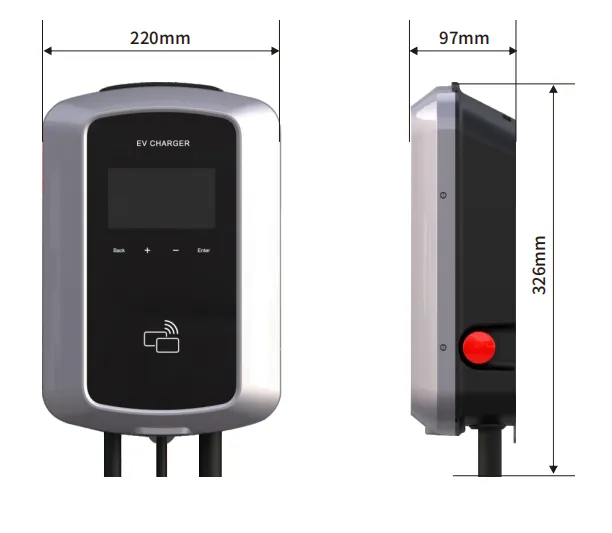

Dimensions

Overall Installation Drawing
