Porduct Overview

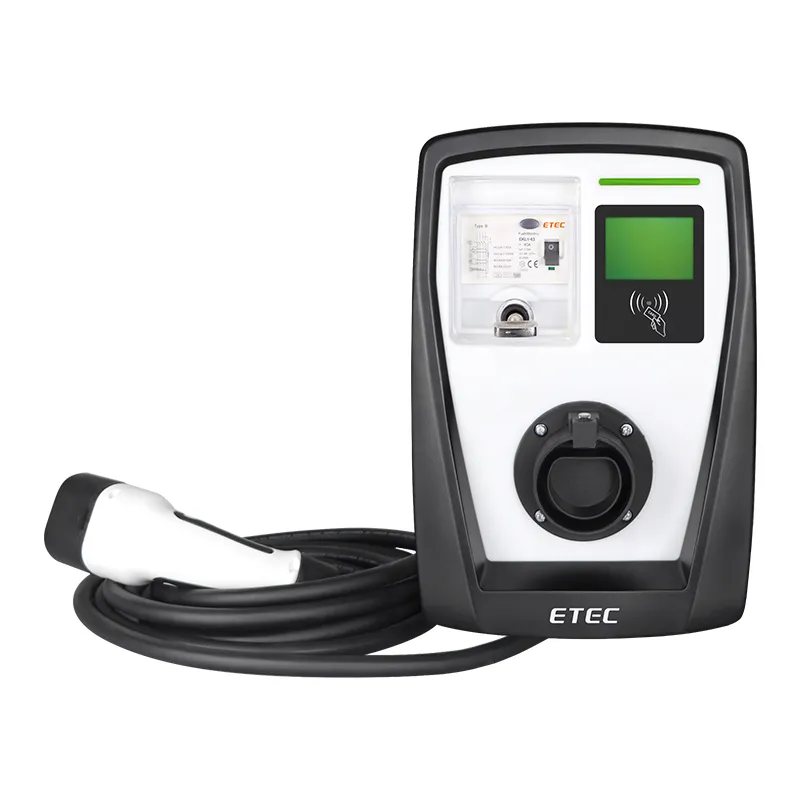

EKEC1 is a mode 3 charging device that provides full support for all electric vehicles. Its unique feature is that the controller module is equipped with a variable current selector, giving customers the flexibility to choose from five different charging levels. The product series includes two major categories: cable version and socket version to meet the changing needs in different scenarios.

In terms of design, EKEC1 follows rigorous industrial design principles and can be quickly installed in homes and commercial places. At the same time, the protection level of the whole machine reaches the IP54 standard, ensuring that it has excellent dust and water resistance, providing users with a stable and reliable charging experience.

Features:

Adjustable charging current values 10A, 16A, 20A, 25A and 32A.
Rated power up to 22kW (three-phase 32A).
Support OCPP-1.6-J charging protocol (requires EKEPC3 controller).
Multiple protections can be achieved through different combinations of internal components, safe and reliable.
Internal components are modular devices, easy to maintain.
Two versions: cable version and socket version.
IK08 or higher impact-resistant design

Applications:

Slow charging stations, office buildings, large shopping malls, residential areas, outdoor parking lots, hotels, and other public places.

Technical parameters

Technical Data

EKEC1	-	X	-	X	-	X	-	X	-	XXX
↓		↓		↓		↓		↓		↓
①		②		③		④		⑤		⑥
Description
①	Product design model
②	S2: Socket version
	C1: T1 Cable
	C2: T2 Cable
	SS: Socket with protective door
③	03: 1P+N, 240V, 16A, 3.6kW
	07: 1P+N, 240V, 32A, 7.3kW
	11: 3P+N, 420V, 16A, 11kW
	22: 3P+N, 420V, 32A, 22kW
④	O: Built in EKEPC3 controller
	M: Built in EKEPC2 controller
⑤	A: Type A RCCB + DC 6mA RCMU
	B: Type B RCCB
	C: Type EV RCCB
	D: Built-in DC 6mA RCMU (this configuration requires an additional Type A RCCB to be installed in the charging pile power distribution box)
⑥	1: RFID function (if the built-in EKEPC3 controller is used, this function is required)
	2: DLB function external CT (only supports single-phase circuit)
	3: DLB function external energy meter
	4: LCD display
	5: Built in MID meter
	6: Built in SPD (only applicable for single-phase circuit)
	7: With emergency stop button
	8: With PEN protection
lf you need a charging post to meet the following configuration: European Standard Cable version 22KW. Using Type A RCCB + DC6mA+ OCPP-J-1.6 protocol + LCD display + meter, then its model is: EKEC1-C2-22-0-A-145

Technical Data

Model	Cable type		Socket type
	EKEC1-C1/C2-03-X-X-XXX	EKEC1-C1/C2-11-X-X-XXX	EKEC1-S2/SS-03-X-X-XXX	EKEC1-S2/SS-11-X-X-XXX
	EKEC1-C1/C2-07-X-X-XXX	EKEC1-C1/C2-22-X-X-XXX	EKEC1-S2/SS-07-X-X-XXX	EKEC1-S2/SS-22-X-X-XXX
Operation Voltage	AC220V±10%,(L+N+PE)	AC420V±10%,(3P+N+PE)	AC220V±10%,(L+N+PE)	AC420V±10%,(3P+N+PE)
Max output current	16A	32A	16A	32A
Max. output power	7.3kW	22kW	7.3KW	22KW
Charging current	10-16-20-25- 32A (5 levels adjustable)
AC power frequency	50Hz±1Hz
Standby power	＜8W
Cable length	5m (Supports customization of other lengths)		_
Connector Type	SAE J1772, IEC 62196-2, GB/T
Communication	Support Modbus-RTU protocol and OCPP-1.6-J protocol
RCD Type	Type A / Type B / Type A+6mA DC
Overvoltage Category (OVC)	OVC III
Insulation resistance	＞10MΩ
AC withstand voltage	2.8kV
Electrical protection classes	Class I
Protection grade	IP54
Pollution degree	3
Operating temperature	-20℃～+ 50℃
Storage temperature	-40℃~+70℃
Relative humidity	5% ～ 95%
Altitude	≤ 2000m
Cooling method	Natural cooling
Mounting Method	Wall-Mounted / Ground-mounting Pole
Wiring method	Bottom-in and Bottom-out
Dimension(L/W/D)	357mm x 245mm x 123mm

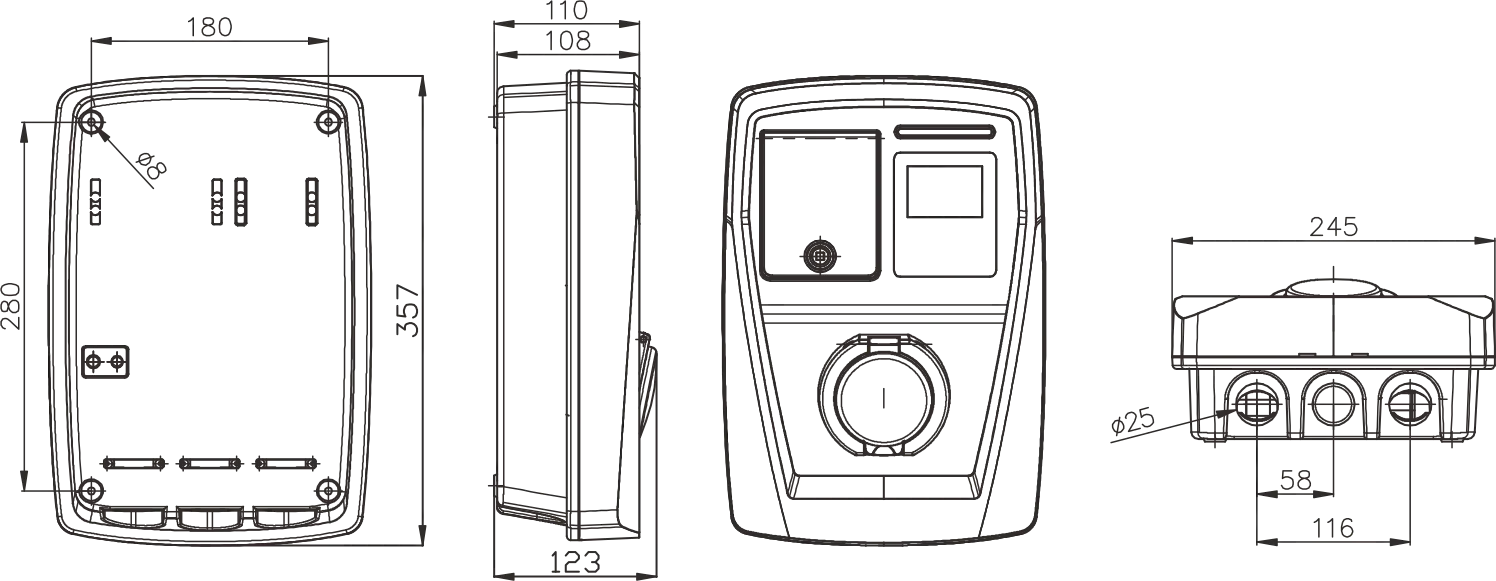

Dimensions
