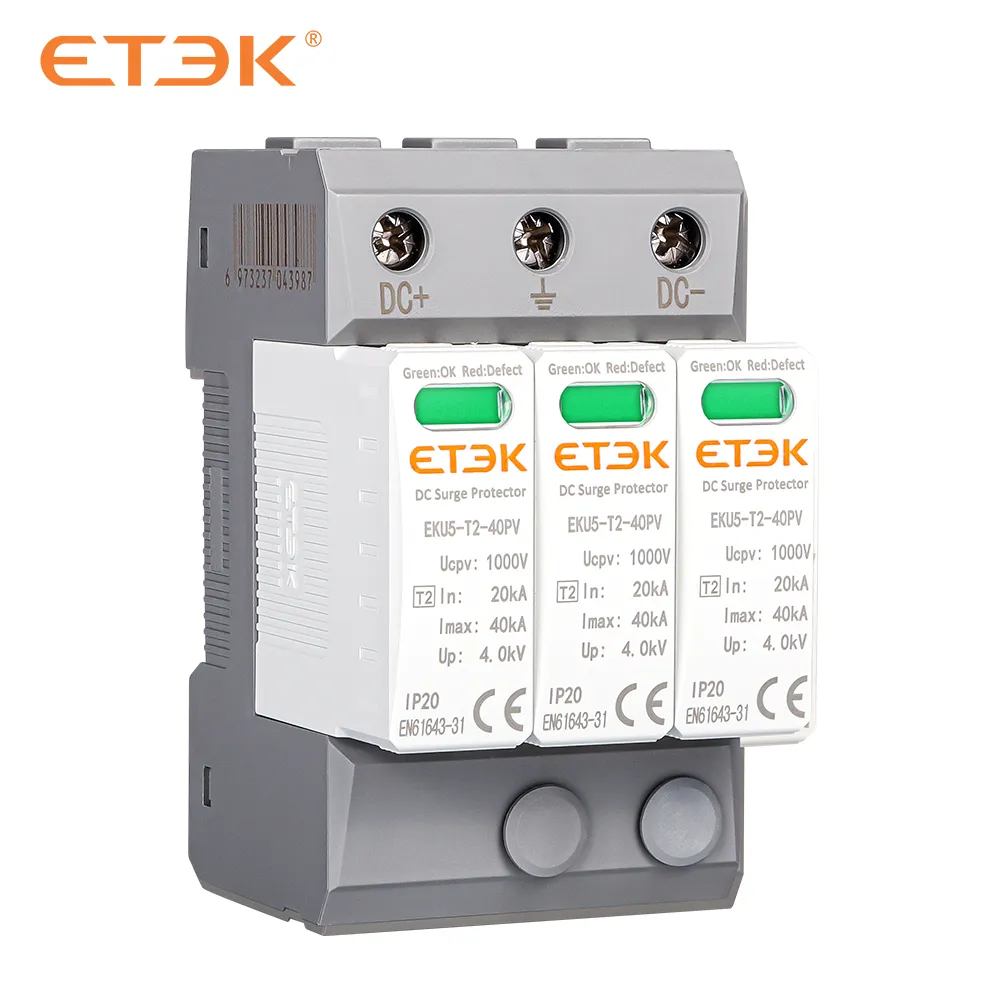

EKU5-T2-3M1000 DC SPD

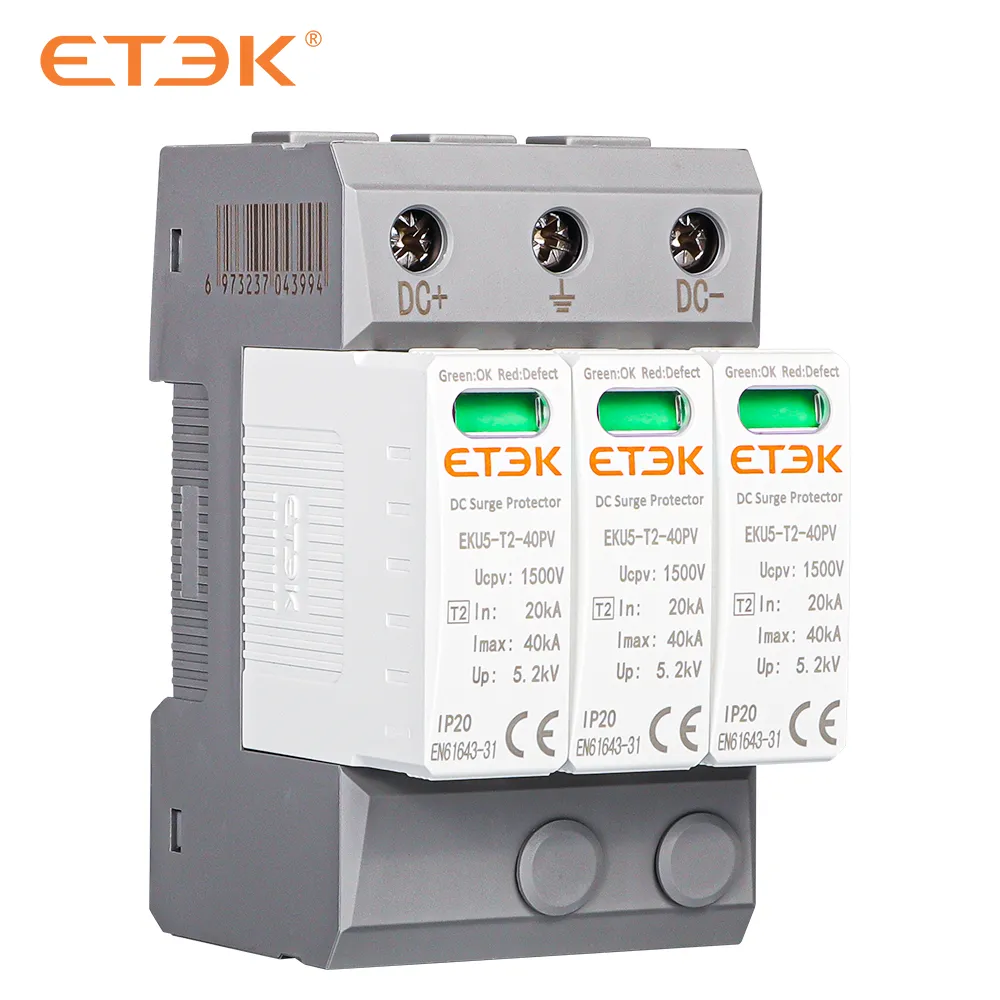

EKU5-T2-3M1500 DC SPD
EKU5-12-2M600 DC SPD
EKU5-12-2M600 DC SPD
EKU5-T2-3M1000 DC SPD
EKU5-T2-3M1500 DC SPD

EKU5 Class T2 40kA DC SPD for Solar Photovoltaic PV System

EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

Inquire NOW PDF

EKU5 Class T2 40kA DC SPD for Solar Photovoltaic PV System

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

EK U5 T2 40 PV 2M S
Company Code SPD series No.5 Classification T2 I.max:40kA

Solar PV System

 No. of Module: 2:2Module,3:3Module With Remote Signaling

EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

Technical parameters

Technical Data

Standard IEC/EN61643-31

     T2

Max. continuous operating  a.c.voltage

Ucpv



600VDC

 1000VDC 1500VDC

Nominal discharge current (8/20μs)

In

   20kA

Maximum discharge current(8/20µs)

Imax

   40kA

Voltage protection level DC+/DV-to PE

 UP

2Mods

≤2.6kV

≤4.0kV

 -

3Mods

 -

≤4.0kV

≤5.2kV

Response time

tA



≤25ns

Operating temperature range

Tu



-40℃~80℃

Operating State/Fault Indication



Green/Red

Cross-section area (Min.)



4mm2

Cross-section area (Max.)



35mm2

For mounting on



35mm Din rail

Enclosed material



Thermal Plastic UL94-V0

Degree of Protection



IP20

No.of Moudles



2P(2Mods),3P(3Mods)

Dimensions

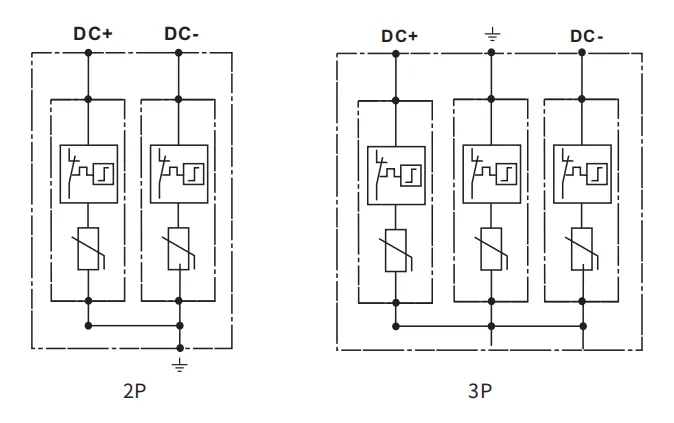

Basic circuit diagram

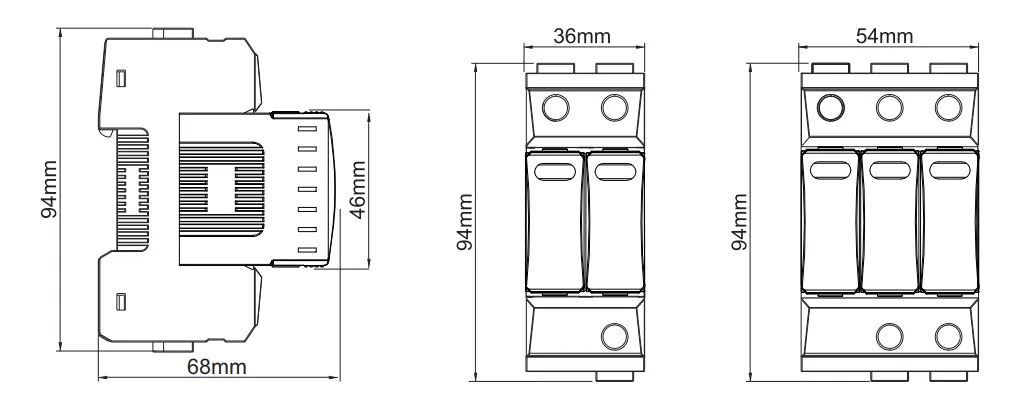

 Installation Size

Product selection form

SPD Type Reference List

No. of Poles

Max. Continuous Operating DC Voltage

600VDC

1000VDC

1500VDC

2Module

EKU5-T2-40PV-2M600

EKU5-T2-40PV-2M1000

-

3Module

-

EKU5-T2-40PV-3M1000

EKU5-T2-40PV-3M1500

With Remote Signaling

2Module

EKU5-T2-40PV-2M600S

EKU5-T2-40PV-2M1000S

 -

3Module

 -

EKU5-T2-40PV-3M1000S

EKU5-T2-40PV-3M1500S

Download Files

Porduct Overview

Description

EK U5 T2 40 PV 2M S
Company Code SPD series No.5 Classification T2 I.max:40kA

Solar PV System

 No. of Module: 2:2Module,3:3Module With Remote Signaling

EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

Technical parameters

Download Files
