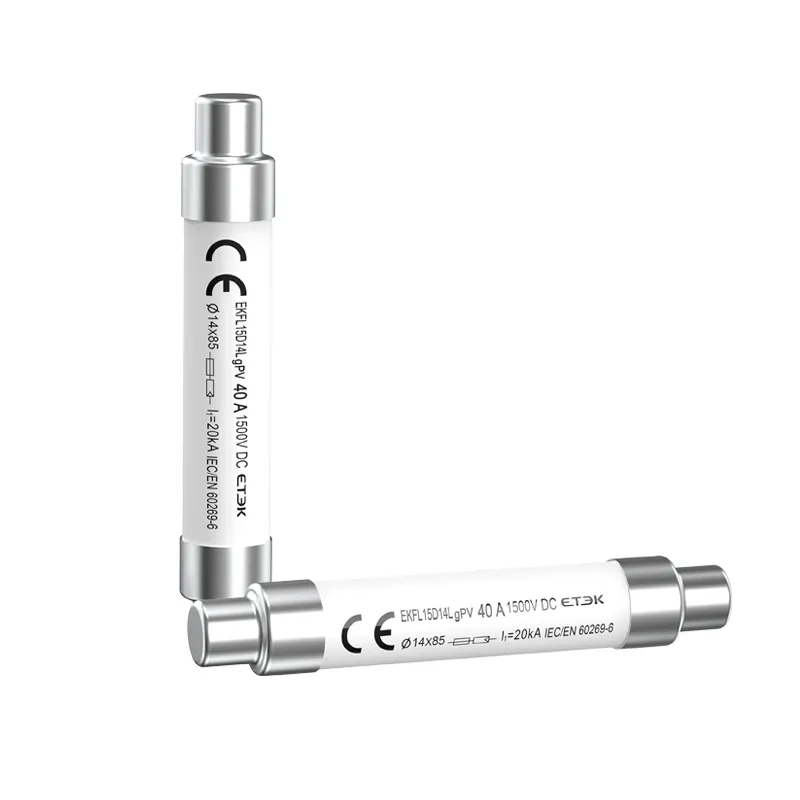

1500VDC gPV 10x85mm 14x85mm Cylindrical Fuse Link

EKFL15D photovoltaic applications gPV 10x85mm, 14x85mm cylindrical fuse links from ETEK Electric to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1500VDC, current up to 50A.

● Standard: IEC60269-6
● Rated current: 8~50A
● Rated voltage: 1500VDC
● Size: 10x85mm, 14x85mm
● Rated breaking capacity: 50kA
● Utilization category: gPV
● Operating temperature: -40ºC...+80 ºC
● Certificates: CE, CB, TUV

Inquire NOW PDF
Tags: gPV Fuse Link

1500VDC gPV 10x85mm 14x85mm Cylindrical Fuse Link

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKFL15D photovoltaic applications gPV cylindrical fuse links from ETEK Electric to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1500VDC, current up to 50A.

These fuse links provide protection against overloads and short-circuits according to the requirements of IEC60269-6.

They are made with a ceramic tube that has high resistance to internal pressure and thermal shock, allowing for a high breaking capacity in a compact physical space.

The contacts are made of silver-plated copper, and the melting elements are made of pure silver to prevent aging and maintain unalterable electrical characteristics.

Technical parameters

Technical Data

Model EKFL15D10L EKFL15D14L
Size 10x85mm 14x85mm
Standard IEC60269-6
Rated voltage 1500VDC
Rated cureent 8A~32A 25~50A
Rated breaking capacity 50kA
Utilization category gPV
Minimum interrupt rating 1.35In
Non fusing current 1.05In
Rated power dissipation ≤9.3W ≤18.8W
Operating temperature -40°C ... 80°C
Storage temperature -40°C ... 90°C

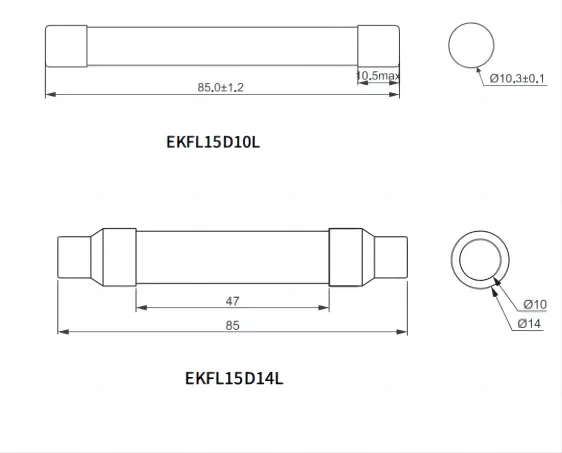

Dimensions
