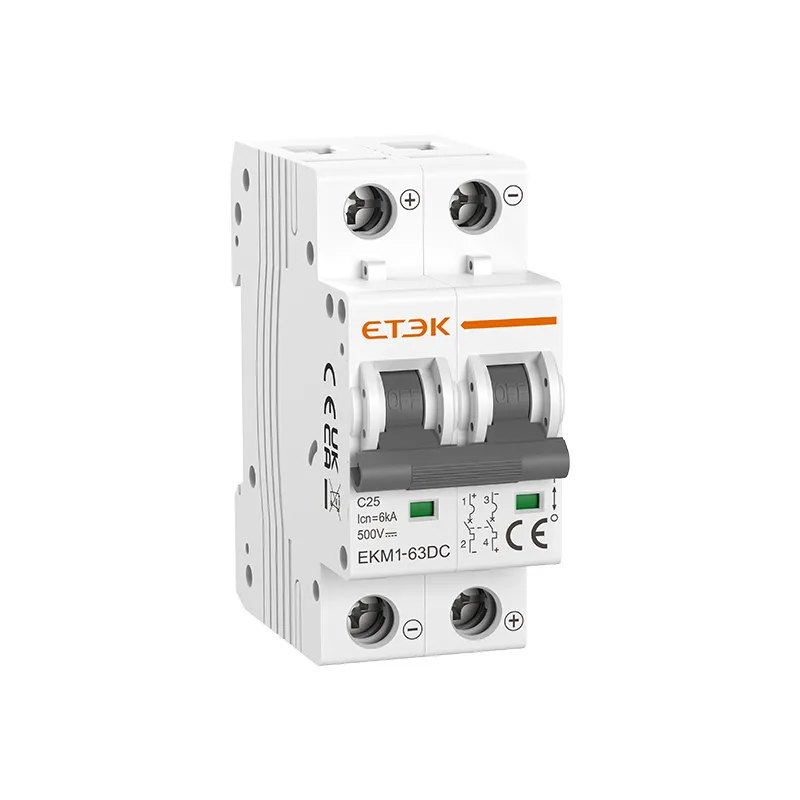

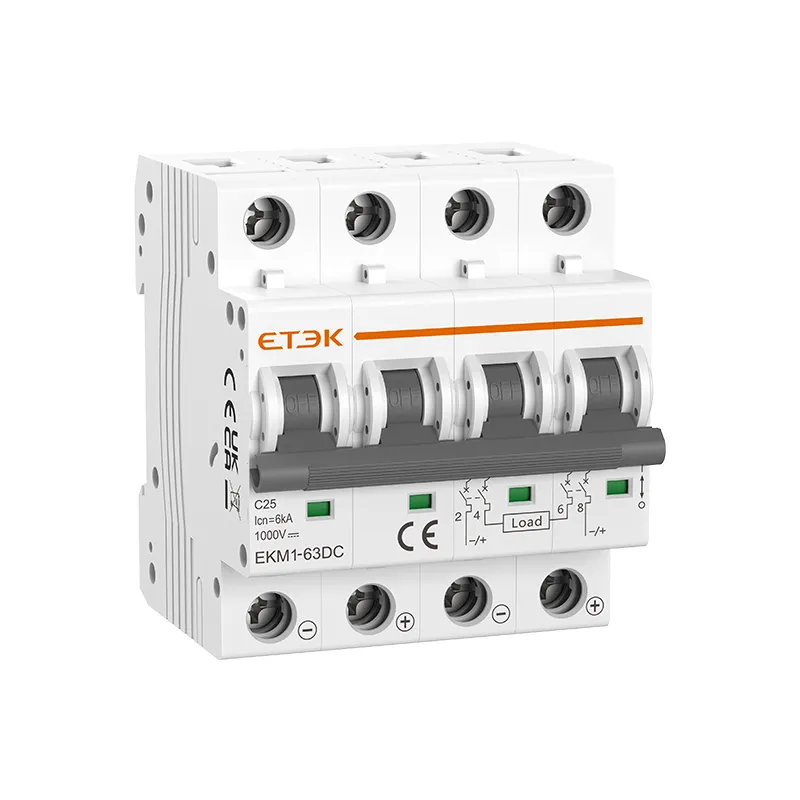

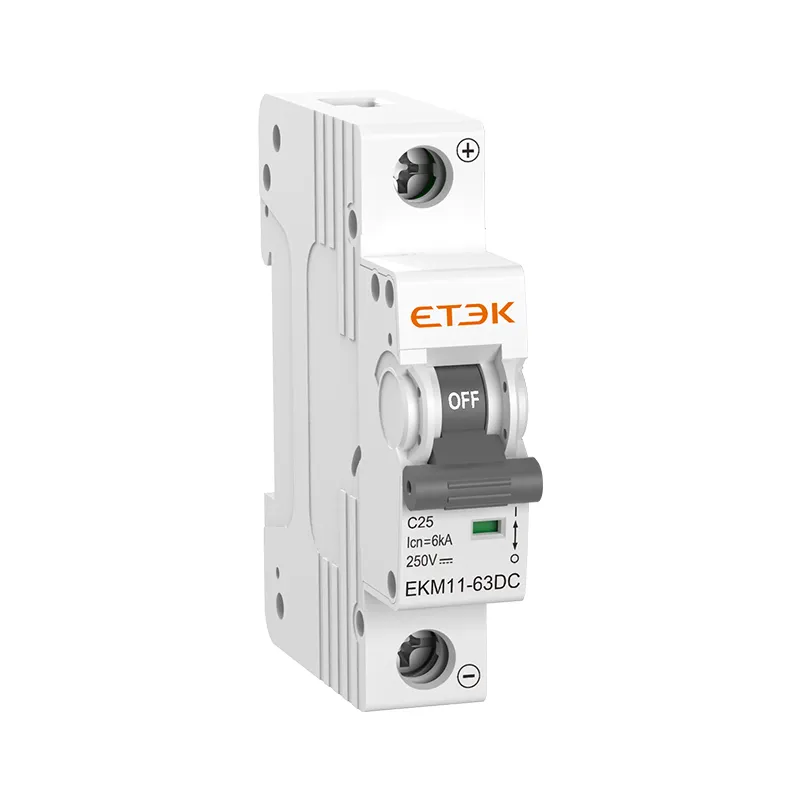

ETEK 6KA DC MCB for Solar PV system

EKM1-63DC the rated working voltage of DC circuit breakers specially used in photovoltaic can be as high as DC 1000V. The special arc extinguishing and current limiting system can quickly disconnect the fault current of the DC power distribution system. The photovoltaic module, an important component in solar power system, can avoid damage from high DC reverse current and AC feedback current caused by the inverter failure, ensuring a reliable operation of solar PV system.

● Standard: IEC60947-2
● Type of trip: Thermo-magnetic
● Rated current: 6~63A
● Rated voltage: 1P(250VDC), 2P(500VDC), 4P(1000VDC)
● Number of poles: 1P,2P,4P
● Rated short-circuit breaking capacity: 6kA
●Magnetic release characteristic: (8-12) x In
● Ambient air temperature: -5...+40 ºC
● Connection: According to the wiring diagram
● Certificates: CE, CB

Inquire NOW PDF

Porduct Overview

Description

EKM1-63DC Series MCB the rated working voltage of DC circuit breakers specially used in photovoltaic can be as high as DC 1000V. The special arc extinguishing and current limiting system can quickly disconnect the fault current of the DC power distribution system. The photovoltaic module, an important component in solar power system, can avoid damages from high DC reverse current and AC feedback current caused by the inverter failure, ensuring a reliable operation of solar PV system.

Technical parameters

Technical Data

Standard	IEC/EN60947-2
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
No. of poles	1P,2P,4P
Rated currents (In)	6,10,16,20,25,32,40,50,63A
Rated voltage (Ue)	1P(250VDC), 2P(500VDC), 4P(1000VDC)
Rated insulation voltage (Ui)	500V
Rated breaking capacity	6,000A
Rated impulse withstand voltage (1.2/50) Uimp	4kV
Dielectric test voltage at Ind. Freq. for 1 min	3kV
Thermal release characteristic	(1.05-1.30) x In
Magnetic release characteristic	(8-12) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-5℃ to +40℃, Max. 95% humidity
Terminal connection type	Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable	25mm²
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	According to the wiring diagram

ETEK 6KA DC MCB for Solar PV system

ETEK 6KA DC MCB for Solar PV system

Porduct Overview

Description

Technical parameters

Technical Data

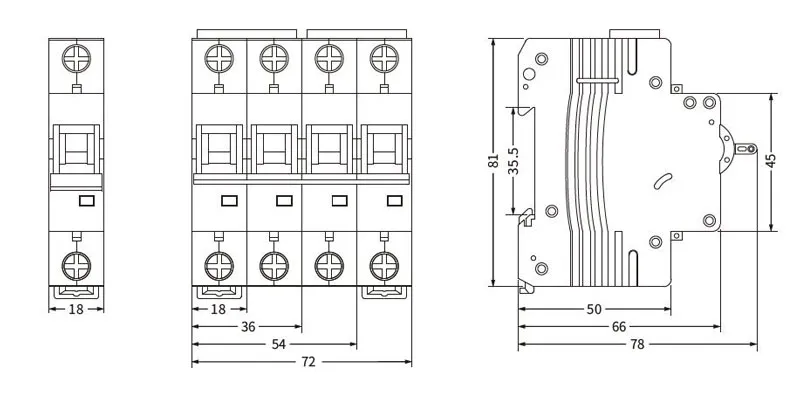

Dimensions

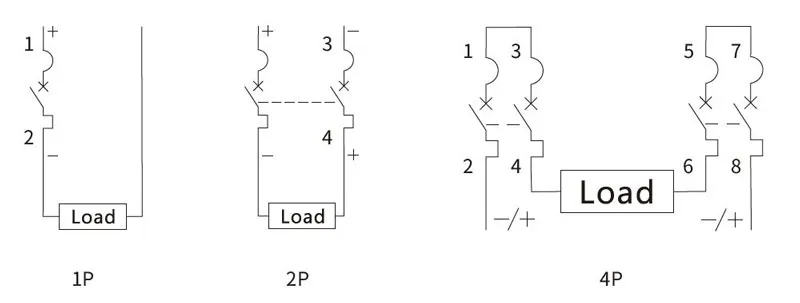

Circuit Diagram
