Name: Push Button Station Enclosure ∅22mm IP65
Brand: ETEK
SKU: 01325
Rating: 4.1 (713 reviews)

Porduct Overview

EKCB push button enclosures are designed for 22mm diameter pushbuttons, switches, and pilot lights. These enclosures help protect push button operators from damage and wear, thereby preserving the integrity of sensitive electrical contacts.

Type: 1 hole to 5 holes, 60mm and 73mm height available.
ABS non-flame-retardant materials. (self-extinguishing material can be customized)
EN60529 IP65 protection grade.
Colors: Grey box; Yellow or White cover.
Threaded cable entry with membrane conduit knock: PG13.5 or M20 glands.
Temperature range: -40℃ to +100℃

Technical parameters

Technical Data

Type	Cover Colour	Model	Description
1 Hole	White	EKCB-A1W	IP65 Pushbutton Enclosure, 1 Hole, Plastic,White,22mm Cut Out, Height 60mm
1 Hole	Yellow	EKCB-A1Y	IP65 Pushbutton Enclosure, 1 Hole, Plastic,Yellow,22mm Cut Out, Height 60mm

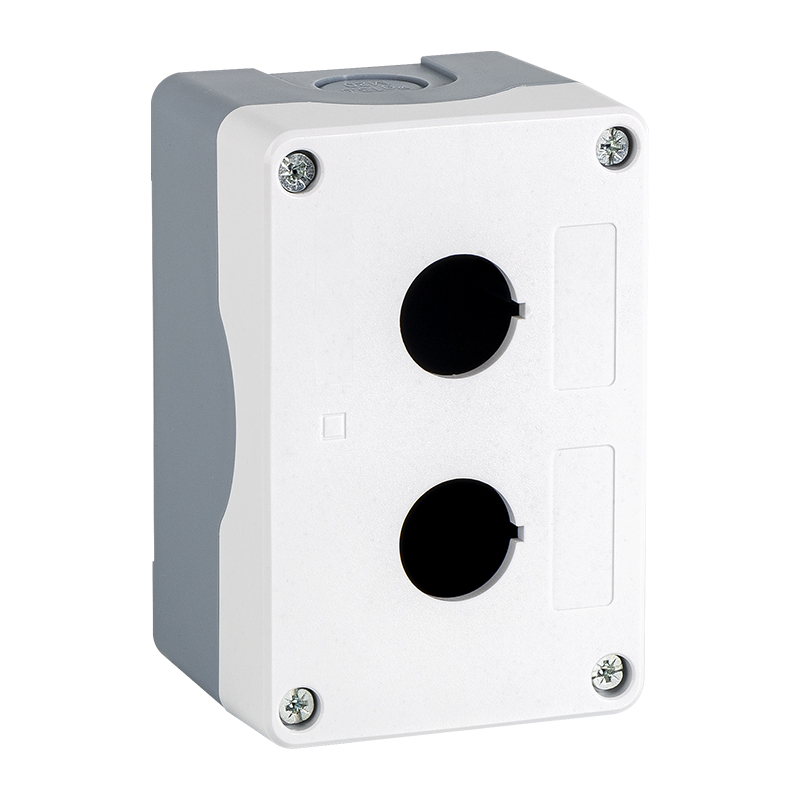

2 Hole	White	EKCB-A2W	IP65 Pushbutton Enclosure, 2 Hole, Plastic,White,22mm Cut Out, Height 60mm
2 Hole	Yellow	EKCB-A2Y	IP65 Pushbutton Enclosure, 2 Hole, Plastic,Yellow,22mm Cut Out, Height 60mm
3 Hole	White	EKCB-A3W	IP65 Pushbutton Enclosure, 3 Hole, Plastic,White,22mm Cut Out, Height 60mm
3 Hole	Yellow	EKCB-A3Y	IP65 Pushbutton Enclosure, 3 Hole, Plastic,Yellow,22mm Cut Out, Height 60mm
4 Hole	White	EKCB-A4W	IP65 Pushbutton Enclosure, 4 Hole, Plastic,White,22mm Cut Out, Height 60mm
4 Hole	Yellow	EKCB-A4Y	IP65 Pushbutton Enclosure, 4 Hole, Plastic,Yellow,22mm Cut Out, Height 60mm
5 Hole	White	EKCB-A5W	IP65 Pushbutton Enclosure, 5 Hole, Plastic,White,22mm Cut Out, Height 60mm
5 Hole	Yellow	EKCB-A5Y	IP65 Pushbutton Enclosure, 5 Hole, Plastic,Yellow,22mm Cut Out, Height 60mm
1 Hole	White	EKCB-B1W	IP65 Pushbutton Enclosure, 1 Hole, Plastic,White,22mm Cut Out, Height 73mm
1 Hole	Yellow	EKCB-B1Y	IP65 Pushbutton Enclosure, 1 Hole, Plastic,Yellow,22mm Cut Out, Height 73mm
2 Hole	White	EKCB-B2W	IP65 Pushbutton Enclosure, 2 Hole, Plastic,White,22mm Cut Out, Height 73mm
2 Hole	Yellow	EKCB-B2Y	IP65 Pushbutton Enclosure, 2 Hole, Plastic,Yellow,22mm Cut Out, Height 73mm
3 Hole	White	EKCB-B3W	IP65 Pushbutton Enclosure, 3 Hole, Plastic,White,22mm Cut Out, Height 73mm

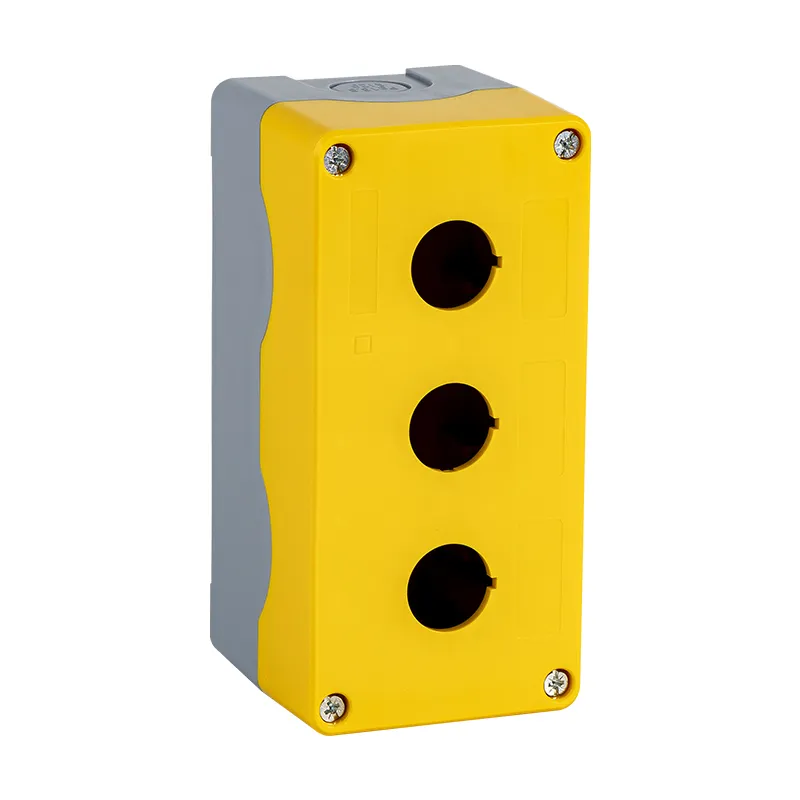

3 Hole	Yellow	EKCB-B3Y	IP65 Pushbutton Enclosure, 3 Hole, Plastic,Yellow,22mm Cut Out, Height 73mm
4 Hole	White	EKCB-B4W	IP65 Pushbutton Enclosure, 4 Hole, Plastic,White,22mm Cut Out, Height 73mm
4 Hole	Yellow	EKCB-B4Y	IP65 Pushbutton Enclosure, 4 Hole, Plastic,Yellow,22mm Cut Out, Height 73mm
5 Hole	White	EKCB-B5W	IP65 Pushbutton Enclosure, 5 Hole, Plastic,White,22mm Cut Out, Height 73mm
5 Hole	Yellow	EKCB-B5Y	IP65 Pushbutton Enclosure, 5 Hole, Plastic,Yellow,22mm Cut Out, Height 73mm

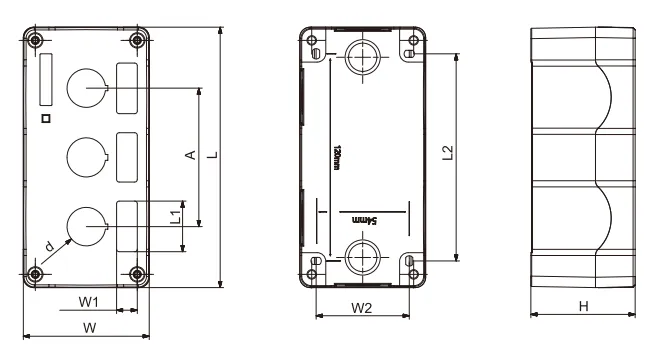

Dimensions

Model	L	W	H	L1	W1	L2	W2	A	d
EKCB-A1	73	73	60	29	12	40	54	/	Φ 22
EKCB-A2	111	73	60	29	12	80	54	40	Φ 22
EKCB-A3	151	73	60	29	12	120	54	80	Φ 22
EKCB-A4	191	73	60	29	12	160	54	120	Φ 22
EKCB-A5	231	73	60	29	12	200	54	160	Φ 22
EKCB-B1	73	73	73	29	12	40	54	/	Φ 22
EKCB-B2	111	73	73	29	12	80	54	40	Φ 22
EKCB-B3	151	73	73	29	12	120	54	80	Φ 22
EKCB-B4	191	73	73	29	12	160	54	120	Φ 22
EKCB-B5	231	73	73	29	12	200	54	160	Φ 22
