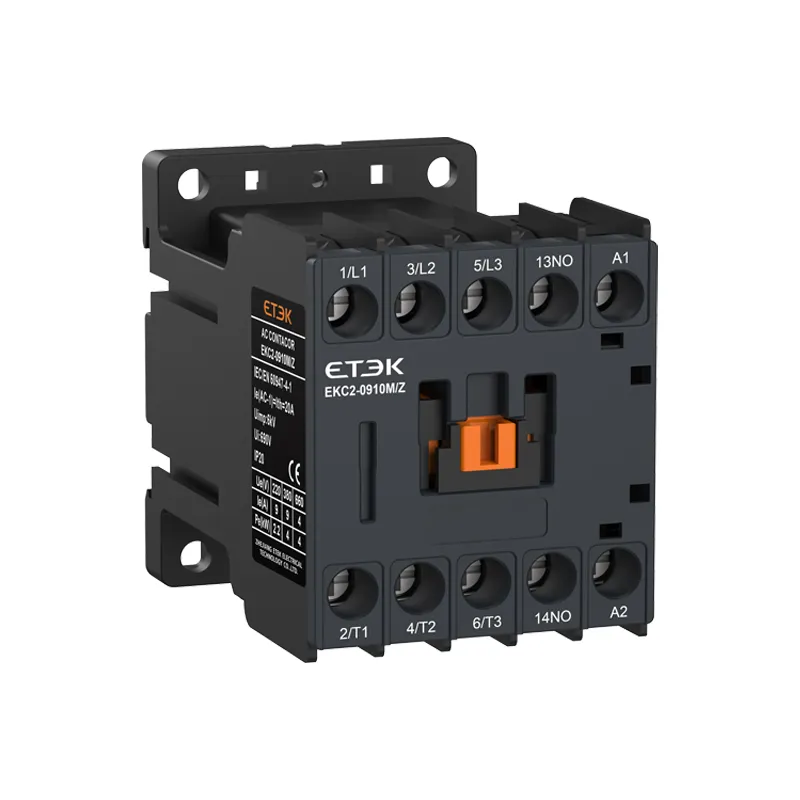

Porduct Overview

EKC2-M mini contactor is an electrical relay designed to manage a power circuit using a lower power signal. It is a more compact version of a standard contactor and finds extensive applications in motor control, lighting control, and automation systems.

Motor Control: Starting and stopping electric motors in a controlled manner, especially in applications where space is limited.
Lighting Control: Managing lighting circuits, particularly in commercial and industrial settings.
Heating Systems: Controlling electric heaters, ensuring that they operate safely and efficiently.
Automation Systems: As part of automation solutions, where they can be used to control various devices and machinery.

EKC2-M Series Mini contactors are an essential component in many electrical systems, offering a reliable and efficient way to control power circuits in a compact form factor.

Technical parameters

Technical Data

Type		EKC2-06M	EKC2-09M	EKC2-12M
Main circuit characteristic
Poles		3P, 4P
Main contact		3NO
Rated insulation voltage(Ui)(V)		690
Rated operating voltage(Ue)(V)		380/400, 660/690
Rated thermal current(Ith), AC-1		20
Rated operation current(Ie)(A)	AC-3, 380/400V	6	9	12
	AC-3, 660/690V	3.8	4.9	4.9
	AC-4, 380/400V	6	9	9
	AC-4, 660/690V	3.8	4.9	4.9
Rated operational power(Pe)(A)	AC-3, 380/400V	2.2	4	5.5
	AC-3, 660/690V	3	4	4
Mechanical life(×10³ times)		1200
Electrical life (×10³ times)	AC-3	120
	AC-4	See electrical life curve
Frequency of operation (time/h)	AC-3	1200
	AC-4	300
Control circuit characteristics
Rated control voltage (Us)	50Hz	24V,36V,48V,110V,127V,220V,380V,415V
	50/60Hz	24V,36V,48V,110V,127V,220V,380V,415V
	DC	12V,24V,36V,48V,110V,127V,220V
Allowed control circuit voltage	Operation	(85%~110%)Us
	Release(AC)	(20%~75%)Us
	Release(DC)	(10%~75%)Us
Power consumption of coil	Actuation(VA)	20-40
	Keep(VA)	9.5
	Consumption(W)	1-3
Auxiliary contacts
Bulit-in auxiliary contact		1NO/1NC
Rated thermal current (Ith)		10A
Rated operating voltage (Ue)	AC	380/400V
	DC	220V
Rated control capacity	AC-15	Ue/Ie: AC380V/400V/1.5A; Ith: 10A
	DC-13	Ue/Ie: DC220V/0.3A

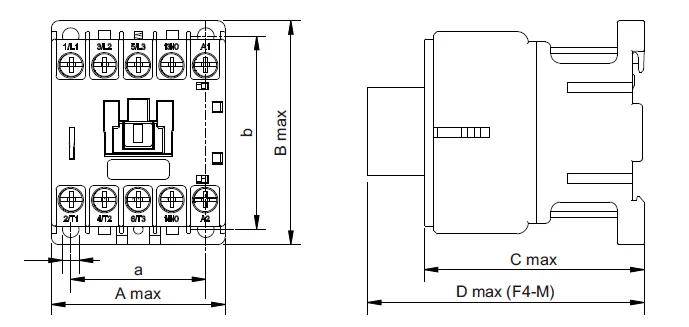

Dimensions

Model	A Max	B Max	C Max	D Max	a	b	Ø
EKC2-06M~12M	45.5	59	58	94	35±0.35	50±0.48	4.2
EKC2-06M/Z~12M/Z	45.5	59	70	106	35±0.35	50±0.48	4.2

Model	A Max	B Max	C Max	D Max	a	b	Ø

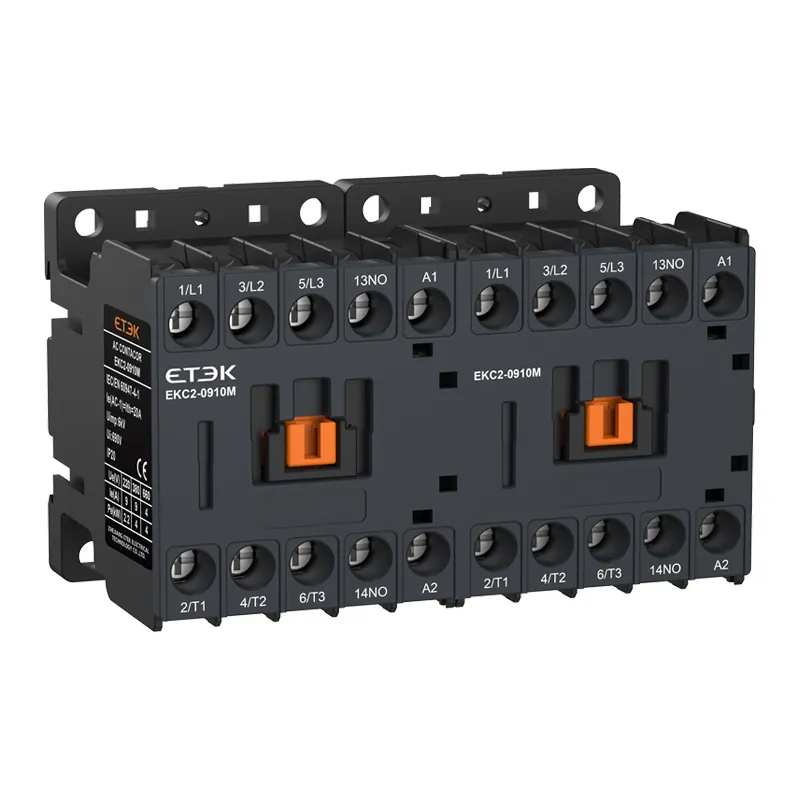

EKC2-06M/N~12M/N	91	59	58	94	80±0.35	50±0.48	4.2
EKC2-06M/Z/N~12M/Z/N	91	59	70	106	80±0.35	50±0.48	4.2
