Mini AC magnetic Contactor

AC contactors are used in connecting/disconnecting the line and frequently controlling motors and other equipment. It controls the large current with small current and plays a certain role in overload protection when working with the thermal relay.

Inquire NOW PDF
Tags: Mini Contactor Compact contactor AC Contactor

Mini AC magnetic Contactor

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

Mini contactors are ideal for general-duty applications where small size and cost are key concerns. They can be used in special modular and compact applications. The small dimensions provide customers with high flexibility in use for applications up to 20 A resistive loads and motor loads up to 5.5 kW. (Generally) They dissipate less heat and some models that have low coil consumption can directly actuate from PLC. A mini contactor can be mounted on din rail or wall. Their accessory options are limited. You can use them on small machines, automatic doors, industrial kitchen appliances, and cleaning machines.

Application remote making & breaking circuits
protect circuit from over-load when assembling with thermal over-load relay
frequent start-up and control of AC contactor
Electric value AC50/60Hz, 690V, up to 12A
Utilization category AC-3, AC-4
Altitude ≤2000m
Ambient temperature -5℃~+40℃
Mounting category Ⅲ
Mounting conditions inclination between the mounting plane and the vertical plane should not exceed ±5°
Standard IEC/EN 60947-4-1. IEC/EN 60947-5-1.
Control Coil Voltage
AC Coil Operation  Volts (VAC) 24 36 42 48 110 127 220 230 240 380 415 440 480 500 600
Code 50Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 - S5 Y5
60Hz B6 - D6 E6 F6 G6 M6 - U6 Q6 - R6 T6 - -
50/60Hz B7 - D7 E7 F7 - M7 P7 - Q7 N7 R7 - - -
DC Coil Operation Volts (VDC) 12 24 36 48 110 220
Code JD BD CD ED FD MD



 Type Designation

Technical parameters

Technical Data

Technical Specification
Standard IEC/EN60947-4-1 IEC/EN60947-5-1
Model No. 　 EKC1-09M EKC1-12M
Rated Conventional Heating Current Ith(A) 20 20
Rated Voltage Ui(V) Ui(V) 690 690
Rated Operation Current AC-3 Ie(A) 9 12
Ue=380/415V AC-4 Ie(A) 3.5 5
Power Controlled 3ph cage Motor AC-3 220/240V KW 2.2 3
380/415V KW 4 5.5
660/690V KW 5.5 7.5
Electrical life (x103 operations) AC-3 1000 1000
AC-4 200 200
Mechanical life (x106 operations) 　 10 10
Matched Fuse Size RT16-00 RT16-00
A 20 20
Main circuit 3P or 4P
Auxiliary circuit Cat.:AC-15, Ue=415V Ie=0.95A Ith=10A 1NO or 1NC

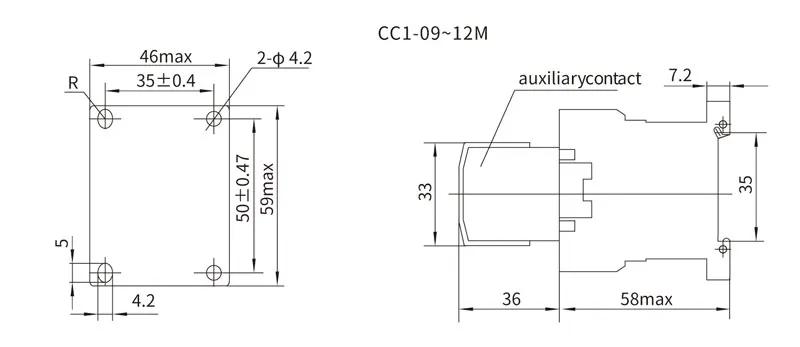

Dimensions

Product selection form

Reference No. Specification
EKC1-0910M-24 Mini Contactor 4KW AC3 9A 3P+1NO Coil 24VAC
EKC1-0910M-42 Mini Contactor 4KW AC3 9A 3P+1NO Coil 42VAC
EKC1-0910M-48 Mini Contactor 4KW AC3 9A 3P+1NO Coil 48VAC
EKC1-0910M-110 Mini Contactor 4KW AC3 9A 3P+1NO Coil 110VAC
EKC1-0910M-220 Mini Contactor 4KW AC3 9A 3P+1NO Coil 220VAC
EKC1-0910M-230 Mini Contactor 4KW AC3 9A 3P+1NO Coil 230VAC
EKC1-0910M-240 Mini Contactor 4KW AC3 9A 3P+1NO Coil 240VAC
EKC1-0910M-380 Mini Contactor 4KW AC3 9A 3P+1NO Coil 380VAC
EKC1-0910M-415 Mini Contactor 4KW AC3 9A 3P+1NO Coil 415VAC
EKC1-0901M-24 Mini Contactor 4KW AC3 9A 3P+1NC Coil 24VAC
EKC1-0901M-42 Mini Contactor 4KW AC3 9A 3P+1NC Coil 42VAC
EKC1-0901M-48 Mini Contactor 4KW AC3 9A 3P+1NC Coil 48VAC
EKC1-0901M-110 Mini Contactor 4KW AC3 9A 3P+1NC Coil 110VAC
EKC1-0901M-220 Mini Contactor 4KW AC3 9A 3P+1NC Coil 220VAC
EKC1-0901M-230 Mini Contactor 4KW AC3 9A 3P+1NC Coil 230VAC
EKC1-0901M-240 Mini Contactor 4KW AC3 9A 3P+1NC Coil 240VAC
EKC1-0901M-380 Mini Contactor 4KW AC3 9A 3P+1NC Coil 380VAC
EKC1-0901M-415 Mini Contactor 4KW AC3 9A 3P+1NC Coil 415VAC
EKC1-1210M-24 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 24VAC
EKC1-1210M-42 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 42VAC
EKC1-1210M-48 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 48VAC
EKC1-1210M-110 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 110VAC
EKC1-1210M-220 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 220VAC
EKC1-1210M-230 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 230VAC
EKC1-1210M-240 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 240VAC
EKC1-1210M-380 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 380VAC
EKC1-1210M-415 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 415VAC
EKC1-1201M-24 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 24VAC
EKC1-1201M-42 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 42VAC
EKC1-1201M-48 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 48VAC
EKC1-1201M-110 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 110VAC
EKC1-1201M-220 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 220VAC
EKC1-1201M-230 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 230VAC
EKC1-1201M-240 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 240VAC
EKC1-1201M-380 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 380VAC
EKC1-1201M-415 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 415VAC
EKC1-0910MZ-12 Mini Contactor 4KW AC3 9A 3P+1NO Coil 12VDC
EKC1-0910MZ-24 Mini Contactor 4KW AC3 9A 3P+1NO Coil 24VDC
EKC1-0910MZ-36 Mini Contactor 4KW AC3 9A 3P+1NO Coil 36VDC
EKC1-0910MZ-48 Mini Contactor 4KW AC3 9A 3P+1NO Coil 48VDC
EKC1-0910MZ-110 Mini Contactor 4KW AC3 9A 3P+1NO Coil 110VDC
EKC1-0910MZ-220 Mini Contactor 4KW AC3 9A 3P+1NO Coil 220VDC
EKC1-0901MZ-12 Mini Contactor 4KW AC3 9A 3P+1NC Coil 12VDC
EKC1-0901MZ-24 Mini Contactor 4KW AC3 9A 3P+1NC Coil 24VDC
EKC1-0901MZ-36 Mini Contactor 4KW AC3 9A 3P+1NC Coil 36VDC
EKC1-0901MZ-48 Mini Contactor 4KW AC3 9A 3P+1NC Coil 48VDC
EKC1-0901MZ-110 Mini Contactor 4KW AC3 9A 3P+1NC Coil 110VDC
EKC1-0901MZ-220 Mini Contactor 4KW AC3 9A 3P+1NC Coil 220VDC
EKC1-1210MZ-12 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 12VDC
EKC1-1210MZ-24 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 24VDC
EKC1-1210MZ-36 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 36VDC
EKC1-1210MZ-48 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 48VDC
EKC1-1210MZ-110 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 110VDC
EKC1-1210MZ-220 Mini Contactor 5.5KW AC3 12A 3P+1NO Coil 220VDC
EKC1-1201MZ-12 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 12VDC
EKC1-1201MZ-24 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 24VDC
EKC1-1201MZ-36 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 36VDC
EKC1-1201MZ-48 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 48VDC
EKC1-1201MZ-110 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 110VDC
EKC1-1201MZ-220 Mini Contactor 5.5KW AC3 12A 3P+1NC Coil 220VDC
EKC1-0904M-24 Mini Contactor 4KW AC3 9A 4P 4NO Coil 24VAC
EKC1-0904M-42 Mini Contactor 4KW AC3 9A 4P 4NO Coil 42VAC
EKC1-0904M-48 Mini Contactor 4KW AC3 9A 4P 4NO Coil 48VAC
EKC1-0904M-110 Mini Contactor 4KW AC3 9A 4P 4NO Coil 110VAC
EKC1-0904M-220 Mini Contactor 4KW AC3 9A 4P 4NO Coil 220VAC
EKC1-0904M-230 Mini Contactor 4KW AC3 9A 4P 4NO Coil 230VAC
EKC1-0904M-240 Mini Contactor 4KW AC3 9A 4P 4NO Coil 240VAC
EKC1-0904M-380 Mini Contactor 4KW AC3 9A 4P 4NO Coil 380VAC
EKC1-0904M-415 Mini Contactor 4KW AC3 9A 4P 4NO Coil 415VAC
EKC1-1204M-24 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 24VAC
EKC1-1204M-42 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 42VAC
EKC1-1204M-48 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 48VAC
EKC1-1204M-110 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 110VAC
EKC1-1204M-220 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 220VAC
EKC1-1204M-230 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 230VAC
EKC1-1204M-240 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 240VAC
EKC1-1204M-380 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 380VAC
EKC1-1204M-415 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 415VAC
EKC1-0904MZ-12 Mini Contactor 4KW AC3 9A 4P 4NO Coil 12VDC
EKC1-0904MZ-24 Mini Contactor 4KW AC3 9A 4P 4NO Coil 24VDC
EKC1-0904MZ-36 Mini Contactor 4KW AC3 9A 4P 4NO Coil 36VDC
EKC1-0904MZ-48 Mini Contactor 4KW AC3 9A 4P 4NO Coil 48VDC
EKC1-0904MZ-110 Mini Contactor 4KW AC3 9A 4P 4NO Coil 110VDC
EKC1-0904MZ-220 Mini Contactor 4KW AC3 9A 4P 4NO Coil 220VDC
EKC1-1204MZ-12 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 12VDC
EKC1-1204MZ-24 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 24VDC
EKC1-1204MZ-36 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 36VDC
EKC1-1204MZ-48 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 48VDC
EKC1-1204MZ-110 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 110VDC
EKC1-1204MZ-220 Mini Contactor 5.5KW AC3 12A 4P 4NO Coil 220VDC
