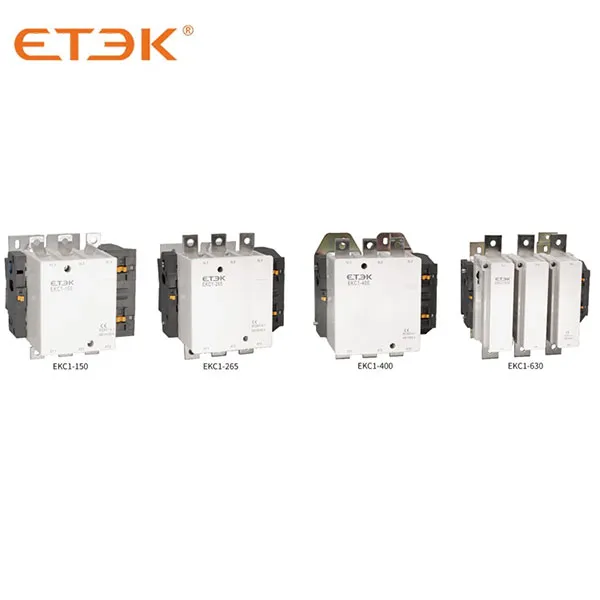

ETEK EKC1 115~1000A AC magnetic Contactor

AC contactors are used in connecting/disconnecting the line and frequently controlling motors and other equipment. It controls the large current with small current and plays a certain role in overload protection when working with the thermal relay.

Inquire NOW PDF
Tags: AC Contactor Industrial Magnetic Contactor

ETEK EKC1 115~1000A AC magnetic Contactor

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

Description

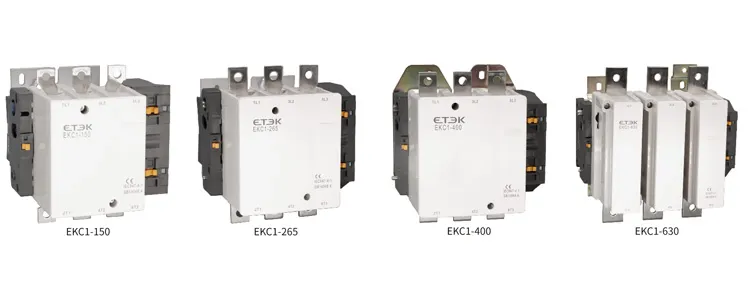

AC Contactor Magnetic contactor

Application remote making & breaking circuits
protect circuit from over-load when assembling with thermal over-load relay
frequent start-up and control of AC contactor
Electric value AC50/60Hz, 690V, up to 1000A
Utilization category AC-3, AC-4
Altitude ≤2000m
Ambient temperature -5℃~+40℃
Mounting category Ⅲ
Mounting conditions inclination between the mounting plane and the vertical plane should not exceed ±5°
Standard IEC/EN 60947-4-1



AC Coil Operation

 Volts (VAC) 24 36 42 48 110 127 220 230 240 380 415 440 480 500 600
Code 50Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 - S5 Y5
  60Hz  B6 - D6 E6 F6 G6  M6 0 U6  Q6 0 R6 T6 -  -
50/60Hz B7 - D7 E7 F7 - M7 　 - Q7 　 R7 - - -



DC Coil Operation

 Volts (VDC) 12 24 36 48 110 220
Code JD BD CD ED FD MD



Type Designation
EK C 1 115 4 Z
Company code
Contactor
Design sequence NO.
Basic specification, expressed with the rated operational current (380V/400V, AC3)
4: Main circuit 4P
Blank: Main circuit 3P
Z: DC operation
Blank: AC operation

Technical parameters

Technical Data

Technical Specification
Standard 　 IEC/EN60947-4-1
Model No. 　 EKC1-115 EKC1-150 EKC1-185 EKC1-225 EKC1-265 EKC1-330 EKC1-400 EKC1-500 EKC1-630 EKC1-780 EKC1-800 EKC1-1000
Rated Conventional
Heating Current		 Ith(A) 200 200 275 275 315 380 460 580 850 1200 850 1200
Rated Voltage Ui(V) Ui(V) 690
Rated Operation Current
Ue=380/415V		 AC-3 Ie(A) 115 150 185 225 265 330 400 500 630 780 800 1000
AC-4 Ie(A) 52 60 79 86 105 117 138 147 188 240 195 320
Power Controlled 3ph
cage Motor AC-3		 380/415V KW 55 75 90 110 132 160 200 250 335 400 400 500
660/690V KW 80 100 110 129 160 220 280 335 450 475 475 560
Electrical life
(x103 operations)		 AC-3 600 600 300 300 300 300 300 300 300 200 200 200
AC-4 100 100 100 100 100 100 100 100 100 50 50 50
Mechanical life
(x106 operations)		 　 6 6 3 3 3 3 3 3 3 2 3 2
Matched Fuse Size RT16-1 RT16-2 RT16-2 RT16-2 RT16-2 RT16-3 RT16-3 RT16-4 RT16-4 RT16-4 RT16-4 RT16-4
A 200 225 315 315 355 450 500 630 800 1250 800 1250
Main circuit 3P or 4P
Terminal Connection
Model 　Cabling cross section (Cu) screw size Tightening torque (N.m)
Number of piece Cable Cross section (mm2) Cu busbar Cross section (mm2)
EKC1-115 1 70~90 - 3 M6
EKC1-150 1 70~90 - 6 M8
EKC1-185 1 95~150 - 6 M8
EKC1-225 1 95~150 - 10 M10
EKC1-265 1 120~185 - 10 M10
EKC1-330 1 185~240 - 10 M10
EKC1-400 1(2) 240(150) 30×5 10 M10
EKC1-500 2 150~185 40×5 10 M10
EKC1-630 2 185~240 50×5 14 M12
EKC1-800 2 185~240 50×5 14 M12

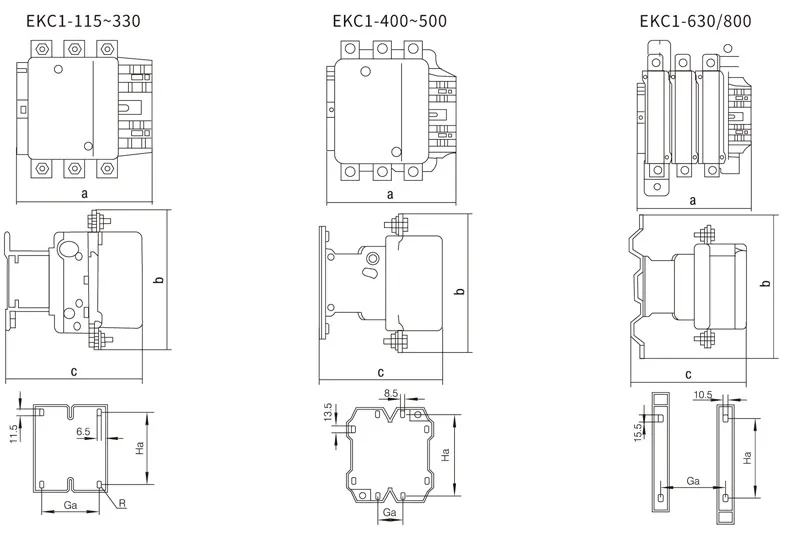

Dimensions

Model A max B max C max
EKC1-115 163.5 162 171
EKC1-150 163.5 170 171
EKC1-185 168.5 174 181
EKC1-225 168.5 197 181
EKC1-265 201.5 203 213
EKC1-330 213 206 219
EKC1-400 213 206 219
EKC1-500 233 238 232
EKC1-630/800 309 304 255

Product selection form

Reference No. Specification
EKC1-115-110 Contactor 55KW AC3 115A 3P Coil 110VAC
EKC1-115-220 Contactor 55KW AC3 115A 3P Coil 220VAC
EKC1-115-230 Contactor 55KW AC3 115A 3P Coil 230VAC
EKC1-115-240 Contactor 55KW AC3 115A 3P Coil 240VAC
EKC1-115-380 Contactor 55KW AC3 115A 3P Coil 380VAC
EKC1-115-415 Contactor 55KW AC3 115A 3P Coil 415VAC
EKC1-150-110 Contactor 60KW AC3 150A 3P Coil 110VAC
EKC1-150-220 Contactor 75KW AC3 150A 3P Coil 220VAC
EKC1-150-230 Contactor 75KW AC3 150A 3P Coil 230VAC
EKC1-150-240 Contactor 75KW AC3 150A 3P Coil 240VAC
EKC1-150-380 Contactor 75KW AC3 150A 3P Coil 380VAC
EKC1-150-415 Contactor 75KW AC3 150A 3P Coil 415VAC
EKC1-185-110 Contactor 90KW AC3 185A 3P Coil 110VAC
EKC1-185-220 Contactor 90KW AC3 185A 3P Coil 220VAC
EKC1-185-230 Contactor 90KW AC3 185A 3P Coil 230VAC
EKC1-185-240 Contactor 90KW AC3 185A 3P Coil 240VAC
EKC1-185-380 Contactor 90KW AC3 185A 3P Coil 380VAC
EKC1-185-415 Contactor 90KW AC3 185A 3P Coil 415VAC
EKC1-225-110 Contactor 110KW AC3 225A 3P Coil 110VAC
EKC1-225-220 Contactor 110KW AC3 225A 3P Coil 220VAC
EKC1-225-230 Contactor 110KW AC3 225A 3P Coil 230VAC
EKC1-225-240 Contactor 110KW AC3 225A 3P Coil 240VAC
EKC1-225-380 Contactor 110KW AC3 225A 3P Coil 380VAC
EKC1-225-415 Contactor 110KW AC3 225A 3P Coil 415VAC
EKC1-265-110 Contactor 132KW AC3 265A 3P Coil 110VAC
EKC1-265-220 Contactor 132KW AC3 265A 3P Coil 220VAC
EKC1-265-230 Contactor 132KW AC3 265A 3P Coil 230VAC
EKC1-265-240 Contactor 132KW AC3 265A 3P Coil 240VAC
EKC1-265-380 Contactor 132KW AC3 265A 3P Coil 380VAC
EKC1-265-415 Contactor 132KW AC3 265A 3P Coil 415VAC
EKC1-330-110 Contactor 160KW AC3 330A 3P Coil 110VAC
EKC1-330-220 Contactor 160KW AC3 330A 3P Coil 220VAC
EKC1-330-230 Contactor 160KW AC3 330A 3P Coil 230VAC
EKC1-330-240 Contactor 160KW AC3 330A 3P Coil 240VAC
EKC1-330-380 Contactor 160KW AC3 330A 3P Coil 380VAC
EKC1-330-415 Contactor 160KW AC3 330A 3P Coil 415VAC
EKC1-400-110 Contactor 200KW AC3 400A 3P Coil 110VAC
EKC1-400-220 Contactor 200KW AC3 400A 3P Coil 220VAC
EKC1-400-230 Contactor 200KW AC3 400A 3P Coil 230VAC
EKC1-400-240 Contactor 200KW AC3 400A 3P Coil 240VAC
EKC1-400-380 Contactor 200KW AC3 400A 3P Coil 380VAC
EKC1-400-415 Contactor 200KW AC3 400A 3P Coil 415VAC
EKC1-500-110 Contactor 250KW AC3 500A 3P Coil 110VAC
EKC1-500-220 Contactor 250KW AC3 500A 3P Coil 220VAC
EKC1-500-230 Contactor 250KW AC3 500A 3P Coil 230VAC
EKC1-500-240 Contactor 250KW AC3 500A 3P Coil 240VAC
EKC1-500-380 Contactor 250KW AC3 500A 3P Coil 380VAC
EKC1-500-415 Contactor 250KW AC3 500A 3P Coil 415VAC
EKC1-630-110 Contactor 335KW AC3 630A 3P Coil 110VAC
EKC1-630-220 Contactor 335KW AC3 630A 3P Coil 220VAC
EKC1-630-230 Contactor 335KW AC3 630A 3P Coil 230VAC
EKC1-630-240 Contactor 335KW AC3 630A 3P Coil 240VAC
EKC1-630-380 Contactor 335KW AC3 630A 3P Coil 380VAC
EKC1-630-415 Contactor 335KW AC3 630A 3P Coil 415VAC
EKC1-780-110 Contactor 400KW AC3 780A 3P Coil 110VAC
EKC1-780-220 Contactor 400KW AC3 780A 3P Coil 220VAC
EKC1-780-230 Contactor 400KW AC3 780A 3P Coil 230VAC
EKC1-780-240 Contactor 400KW AC3 780A 3P Coil 240VAC
EKC1-780-380 Contactor 400KW AC3 780A 3P Coil 380VAC
EKC1-780-415 Contactor 400KW AC3 780A 3P Coil 415VAC
EKC1-800-110 Contactor 400KW AC3 800A 3P Coil 110VAC
EKC1-800-220 Contactor 400KW AC3 800A 3P Coil 220VAC
EKC1-800-230 Contactor 400KW AC3 800A 3P Coil 230VAC
EKC1-800-240 Contactor 400KW AC3 800A 3P Coil 240VAC
EKC1-800-380 Contactor 400KW AC3 800A 3P Coil 380VAC
EKC1-800-415 Contactor 400KW AC3 800A 3P Coil 415VAC
EKC1-1000-110 Contactor 500KW AC3 1000A 3P Coil 110VAC
EKC1-1000-220 Contactor 500KW AC3 1000A 3P Coil 220VAC
EKC1-1000-230 Contactor 500KW AC3 1000A 3P Coil 230VAC
EKC1-1000-240 Contactor 500KW AC3 1000A 3P Coil 240VAC
EKC1-1000-380 Contactor 500KW AC3 1000A 3P Coil 380VAC
EKC1-1000-415 Contactor 500KW AC3 1000A 3P Coil 415VAC
EKC1-11504-110 Contactor 55KW AC3 115A 4P Coil 110VAC
EKC1-11504-220 Contactor 55KW AC3 115A 4P Coil 220VAC
EKC1-11504-230 Contactor 55KW AC3 115A 4P Coil 230VAC
EKC1-11504-240 Contactor 55KW AC3 115A 4P Coil 240VAC
EKC1-11504-380 Contactor 55KW AC3 115A 4P Coil 380VAC
EKC1-11504-415 Contactor 55KW AC3 115A 4P Coil 415VAC
EKC1-15004-110 Contactor 75KW AC3 150A 4P Coil 110VAC
EKC1-15004-220 Contactor 75KW AC3 150A 4P Coil 220VAC
EKC1-15004-230 Contactor 75KW AC3 150A 4P Coil 230VAC
EKC1-15004-240 Contactor 75KW AC3 150A 4P Coil 240VAC
EKC1-15004-380 Contactor 75KW AC3 150A 4P Coil 380VAC
EKC1-15004-415 Contactor 75KW AC3 150A 4P Coil 415VAC
EKC1-18504-110 Contactor 90KW AC3 185A 4P Coil 110VAC
EKC1-18504-220 Contactor 90KW AC3 185A 4P Coil 220VAC
EKC1-18504-230 Contactor 90KW AC3 185A 4P Coil 230VAC
EKC1-18504-240 Contactor 90KW AC3 185A 4P Coil 240VAC
EKC1-18504-380 Contactor 90KW AC3 185A 4P Coil 380VAC
EKC1-18504-415 Contactor 90KW AC3 185A 4P Coil 415VAC
EKC1-22504-110 Contactor 110KW AC3 225A 4P Coil 110VAC
EKC1-22504-220 Contactor 110KW AC3 225A 4P Coil 220VAC
EKC1-22504-230 Contactor 110KW AC3 225A 4P Coil 230VAC
EKC1-22504-240 Contactor 110KW AC3 225A 4P Coil 240VAC
EKC1-22504-380 Contactor 110KW AC3 225A 4P Coil 380VAC
EKC1-22504-415 Contactor 110KW AC3 225A 4P Coil 415VAC
EKC1-26504-110 Contactor 132KW AC3 265A 4P Coil 110VAC
EKC1-26504-220 Contactor 132KW AC3 265A 4P Coil 220VAC
EKC1-26504-230 Contactor 132KW AC3 265A 4P Coil 230VAC
EKC1-26504-240 Contactor 132KW AC3 265A 4P Coil 240VAC
EKC1-26504-380 Contactor 132KW AC3 265A 4P Coil 380VAC
EKC1-26504-415 Contactor 132KW AC3 265A 4P Coil 415VAC
EKC1-33004-110 Contactor 160KW AC3 330A 4P Coil 110VAC
EKC1-33004-220 Contactor 160KW AC3 330A 4P Coil 220VAC
EKC1-33004-230 Contactor 160KW AC3 330A 4P Coil 230VAC
EKC1-33004-240 Contactor 160KW AC3 330A 4P Coil 240VAC
EKC1-33004-380 Contactor 160KW AC3 330A 4P Coil 380VAC
EKC1-33004-415 Contactor 160KW AC3 330A 4P Coil 415VAC
EKC1-40004-110 Contactor 200KW AC3 400A 4P Coil 110VAC
EKC1-40004-220 Contactor 200KW AC3 400A 4P Coil 220VAC
EKC1-40004-230 Contactor 200KW AC3 400A 4P Coil 230VAC
EKC1-40004-240 Contactor 200KW AC3 400A 4P Coil 240VAC
EKC1-40004-380 Contactor 200KW AC3 400A 4P Coil 380VAC
EKC1-40004-415 Contactor 200KW AC3 400A 4P Coil 415VAC
EKC1-50004-110 Contactor 250KW AC3 500A 4P Coil 110VAC
EKC1-50004-220 Contactor 250KW AC3 500A 4P Coil 220VAC
EKC1-50004-230 Contactor 250KW AC3 500A 4P Coil 230VAC
EKC1-50004-240 Contactor 250KW AC3 500A 4P Coil 240VAC
EKC1-50004-380 Contactor 250KW AC3 500A 4P Coil 380VAC
EKC1-50004-415 Contactor 250KW AC3 500A 4P Coil 415VAC
EKC1-63004-110 Contactor 335KW AC3 630A 4P Coil 110VAC
EKC1-63004-220 Contactor 335KW AC3 630A 4P Coil 220VAC
EKC1-63004-230 Contactor 335KW AC3 630A 4P Coil 230VAC
EKC1-63004-240 Contactor 335KW AC3 630A 4P Coil 240VAC
EKC1-63004-380 Contactor 335KW AC3 630A 4P Coil 380VAC
EKC1-63004-415 Contactor 335KW AC3 630A 4P Coil 415VAC
EKC1-78004-110 Contactor 400KW AC3 780A 4P Coil 110VAC
EKC1-78004-220 Contactor 400KW AC3 780A 4P Coil 220VAC
EKC1-78004-230 Contactor 400KW AC3 780A 4P Coil 230VAC
EKC1-78004-240 Contactor 400KW AC3 780A 4P Coil 240VAC
EKC1-78004-380 Contactor 400KW AC3 780A 4P Coil 380VAC
EKC1-78004-415 Contactor 400KW AC3 780A 4P Coil 415VAC
EKC1-80004-110 Contactor 400KW AC3 800A 4P Coil 110VAC
EKC1-80004-220 Contactor 400KW AC3 800A 4P Coil 220VAC
EKC1-80004-230 Contactor 400KW AC3 800A 4P Coil 230VAC
EKC1-80004-240 Contactor 400KW AC3 800A 4P Coil 240VAC
EKC1-80004-380 Contactor 400KW AC3 800A 4P Coil 380VAC
EKC1-80004-415 Contactor 400KW AC3 800A 4P Coil 415VAC

Download Files

Porduct Overview

Description

AC Contactor Magnetic contactor

Application remote making & breaking circuits
protect circuit from over-load when assembling with thermal over-load relay
frequent start-up and control of AC contactor
Electric value AC50/60Hz, 690V, up to 1000A
Utilization category AC-3, AC-4
Altitude ≤2000m
Ambient temperature -5℃~+40℃
Mounting category Ⅲ
Mounting conditions inclination between the mounting plane and the vertical plane should not exceed ±5°
Standard IEC/EN 60947-4-1



AC Coil Operation

 Volts (VAC) 24 36 42 48 110 127 220 230 240 380 415 440 480 500 600
Code 50Hz B5 C5 D5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 - S5 Y5
  60Hz  B6 - D6 E6 F6 G6  M6 0 U6  Q6 0 R6 T6 -  -
50/60Hz B7 - D7 E7 F7 - M7 　 - Q7 　 R7 - - -



DC Coil Operation

 Volts (VDC) 12 24 36 48 110 220
Code JD BD CD ED FD MD



Type Designation
EK C 1 115 4 Z
Company code
Contactor
Design sequence NO.
Basic specification, expressed with the rated operational current (380V/400V, AC3)
4: Main circuit 4P
Blank: Main circuit 3P
Z: DC operation
Blank: AC operation

Technical parameters

Download Files

Recommend Products

EKCC Capacitor Switching Contactor

ETEK Contactors for capacitor switching, Capacitor duty contactor

Inquire

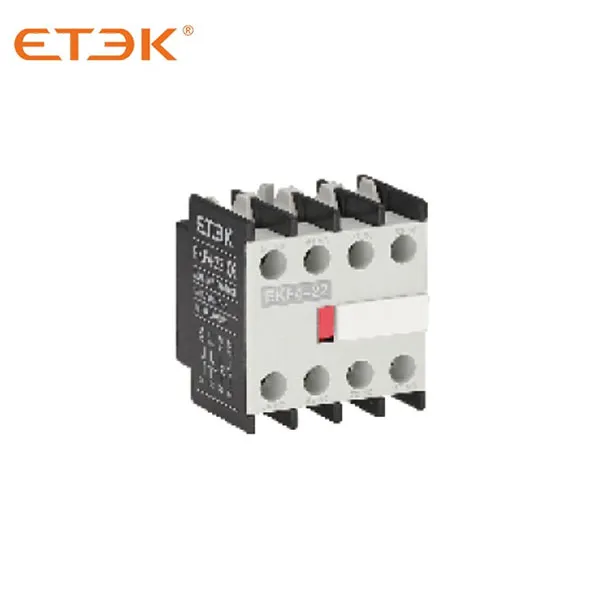

Contactor Accessories

Accessory for AC Magnetic Contactor

Inquire
EKR2-Thermal-overload-relay

Tripping Class 10 Adjustable Current Thermal Overload Relay

Inquire
EKMS2 Motor Protection Circuit Breaker

Motor Protection Circuit Breaker (MPCB)

Inquire

Recommend Products

EKCC Capacitor Switching Contactor

ETEK Contactors for capacitor switching, Capacitor duty contactor

Inquire
Contactor Accessories

Accessory for AC Magnetic Contactor

Inquire
EKR2-Thermal-overload-relay

Tripping Class 10 Adjustable Current Thermal Overload Relay

Inquire
EKMS2 Motor Protection Circuit Breaker

Motor Protection Circuit Breaker (MPCB)

Inquire

Get in Touch

Captcha Code
Inquiry is being submitted, please wait...
×
We value your privacy
We use cookies to provide you with a better online experience, analyse and measure website usage, and assist in our marketing efforts.
Accept All
