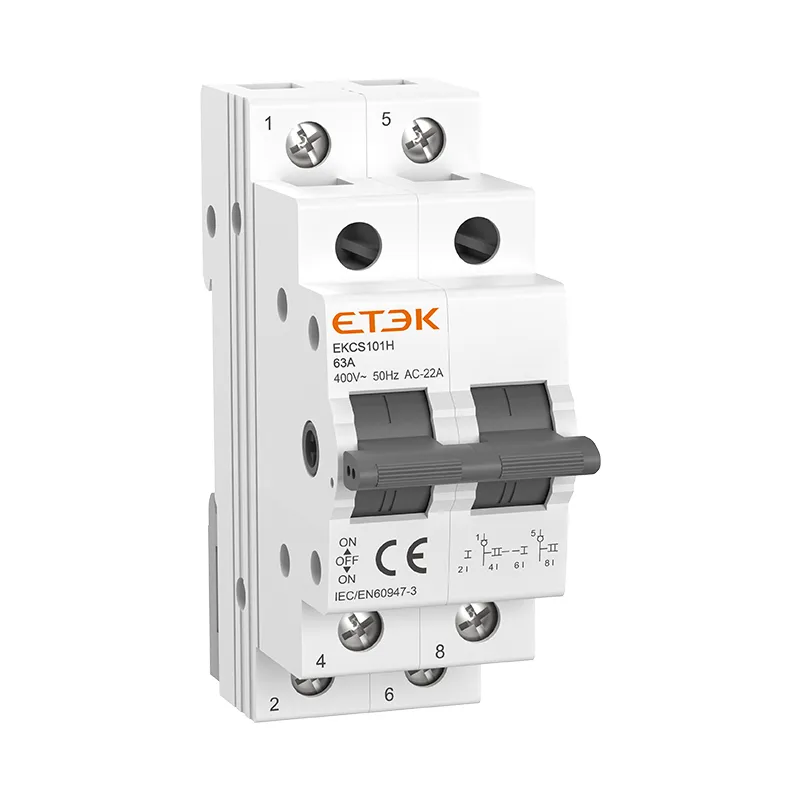

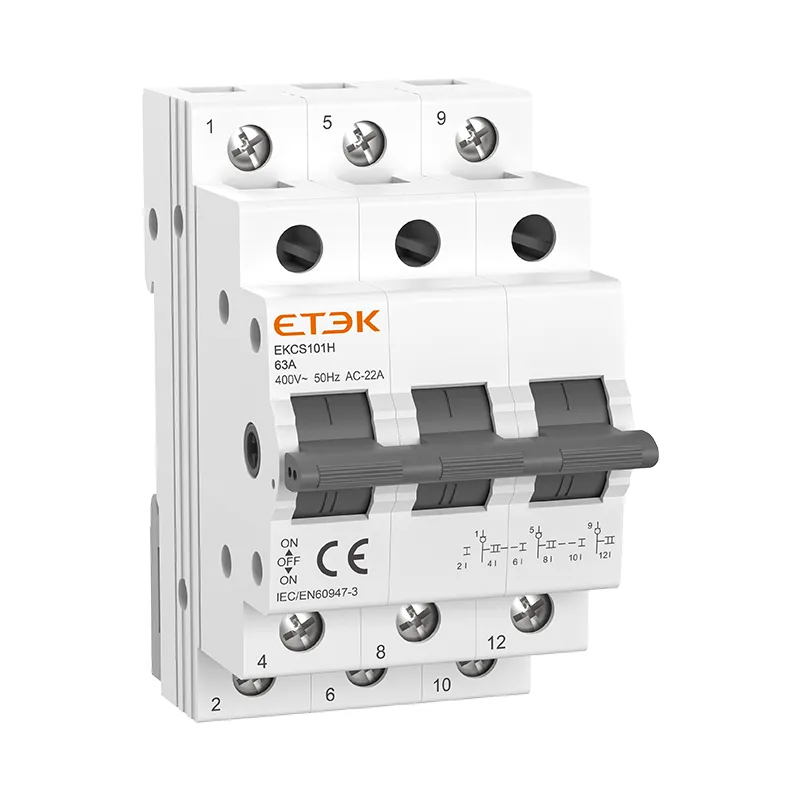

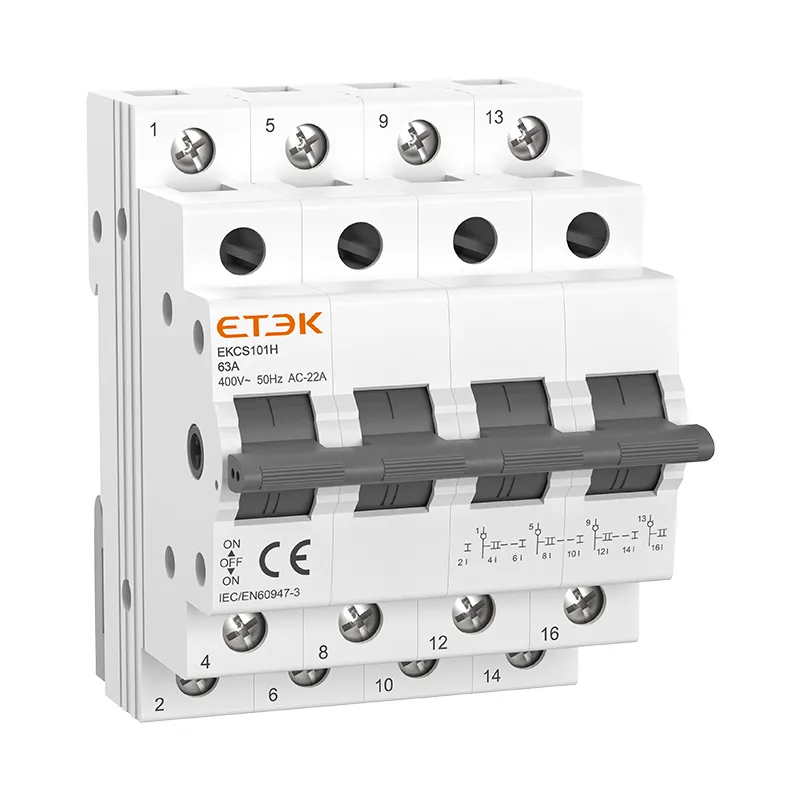

MCB Type Changeover Switch

● Conforms to IEC:60947-3
● Compact design
● Rated Current: 16-63A
● Front operation with three stable positions I-0-II
● Off at middle position
● Can be mounted with other products viz MCB, RCCB, Isolator in distribution board
● Easy snap on DIN rail mounting
● Certificates: CE, CB

Inquire NOW PDF
Tags: Modular Changeover Manual Transfer Switch

MCB Type Changeover Switch

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

ETEK EKCS101H MCB changeover switch is a type of manual operated switch that is used to switch load between two power supplies. This device can achieve a maximum operating current of 63 amps.It is commonly used in industries as well as in domestic areas, especially in individual bungalows for use in low voltage distribution circuits. The purpose of the switch is to transfer electricity from the commercial power grid to a local generator during an outage. It is also known as a transfer switch.

Technical parameters

Technical Data

Rated Voltage 240/415V~
Rated Current 16,25,32,40,63
Rated Frequency 50/60Hz
Number of Poles 1,2,3,4P
Utilisation category
AC 22A
Contact form I-0-II
Electrical Life 1500 Cycles
Mechanical Life 10000 Cycles
Protection degree IP20
Ambient Temperature -5°C to 40°C
Terminal/Cable size 25mm2
Installation Mounting on 35mm DIN rail

Dimensions

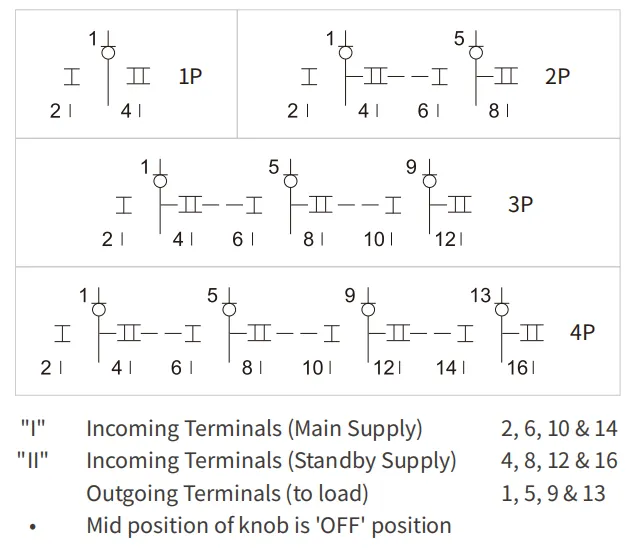

Connection Diagrams

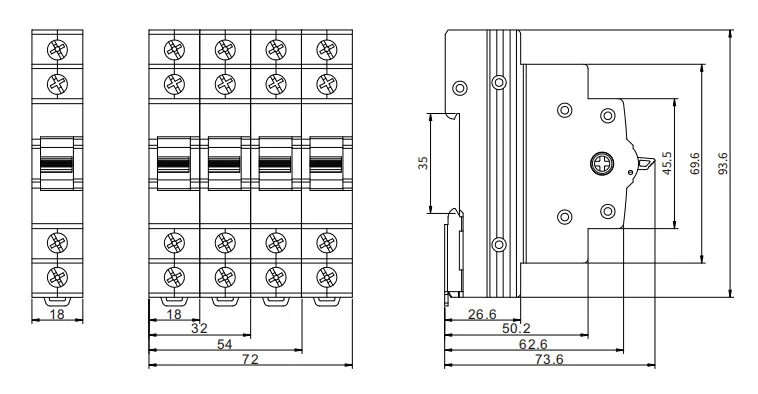

Overall Dimension

Download Files

Porduct Overview

ETEK EKCS101H MCB changeover switch is a type of manual operated switch that is used to switch load between two power supplies. This device can achieve a maximum operating current of 63 amps.It is commonly used in industries as well as in domestic areas, especially in individual bungalows for use in low voltage distribution circuits. The purpose of the switch is to transfer electricity from the commercial power grid to a local generator during an outage. It is also known as a transfer switch.

Technical parameters

Download Files

Recommend Products

EKCS201-MCB-Changeover

Din Rail MCB Changeover Switch

Inquire
EKCS101-MCB-Changeover

Din Rail MCB Changeover Switch

Inquire
EKCS101G MCB Changeover

Din Rail MCB Changeover Switch for 63-125A

Inquire

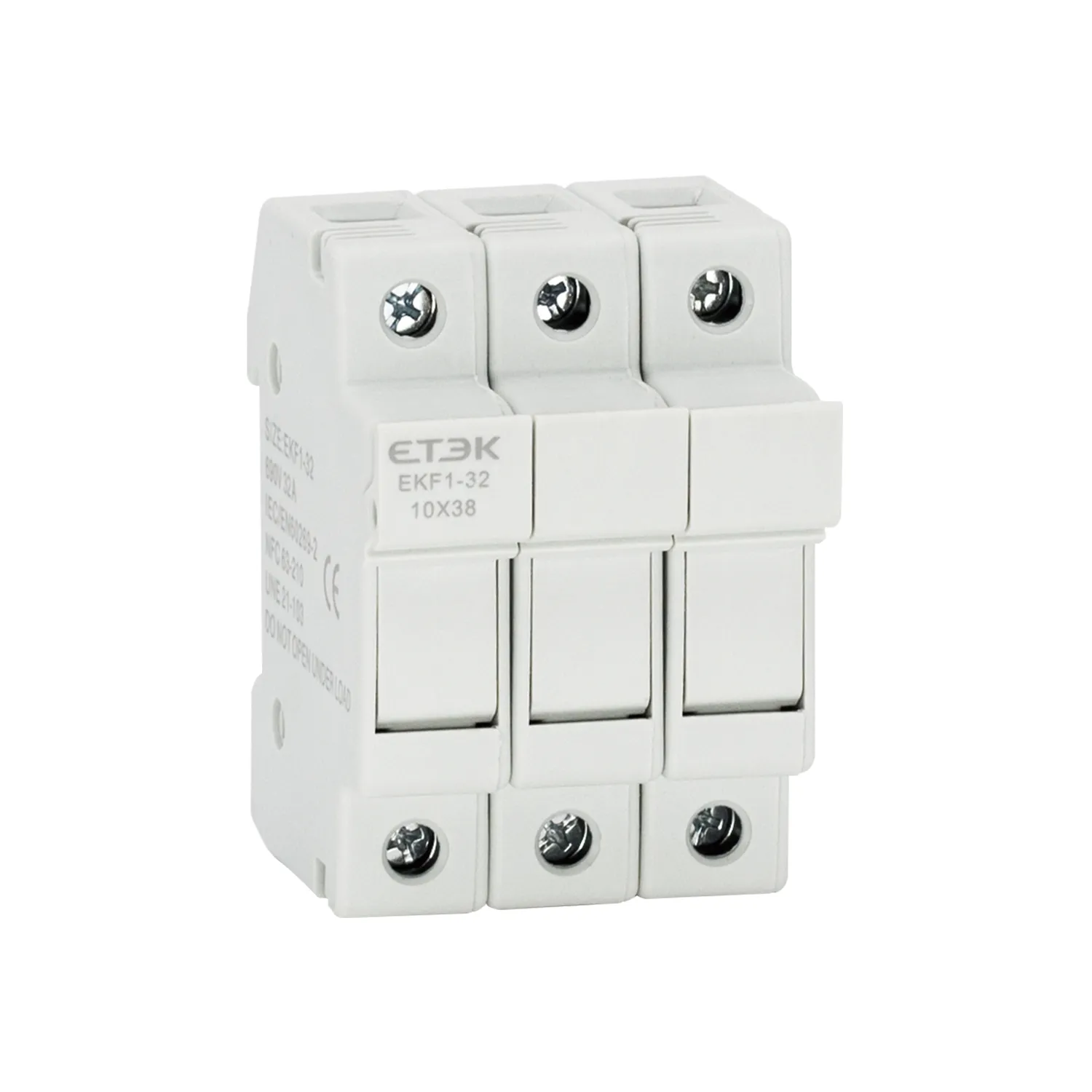

EKF1-32 Fuse Holder 3P
