Changeover switch is designed to transfer a house or business electricity from the commercial power grid to a local generator when an outage occurs also known as transfer switches, they connect directly to the generator commercial power supply or line and the house.

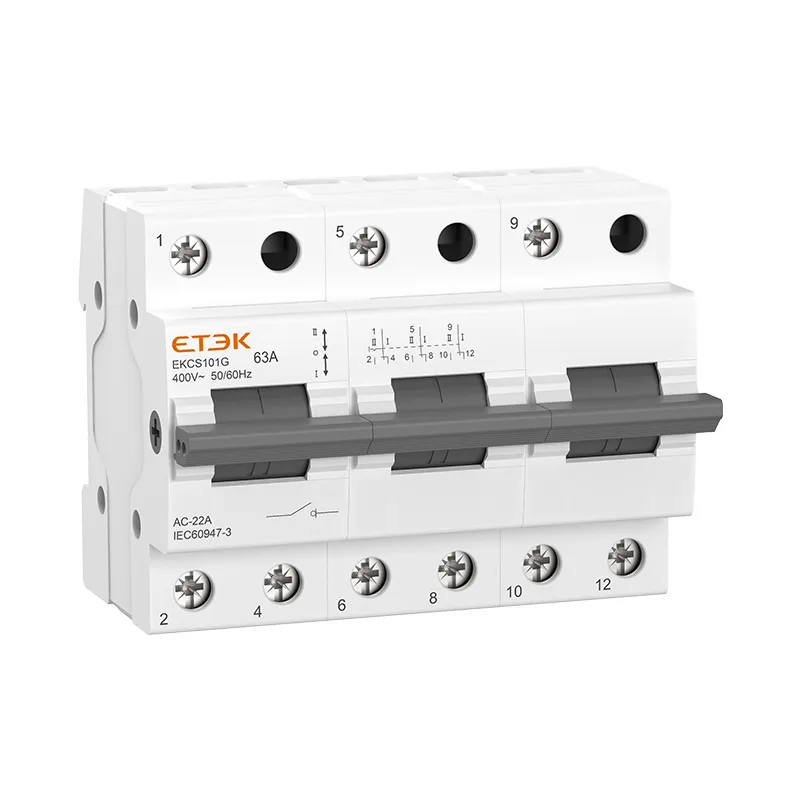

EKCS101G rail-mounted dual power conversion isolation switch has four functions of on, off, conversion and isolation. It can be freely switched on and off between two loads carried by a group of lines, or on two power sources. It is used for on-off and switching between, using DIN standard rail (35×7.5) installation, the shell is made of PA66 injection molding, with high flame-retardant performance, it is an ideal product that needs to be used for switching and opening and closing in industrial equipment and circuits. The maximum current can reach 125A, and it is convenient and safe to install and wire on the guide rail.

1.When the handle hits the I position: 1.5 and 2.6 are connected.
2.When the handle hits the position of II: 1.5 and 4.8 are connected.
3.When the handle is in the middle position: both groups are disconnected.

Technical Data

Dimensions

Circuit Diagram

1P

2P

3P

4P

Installation Size
