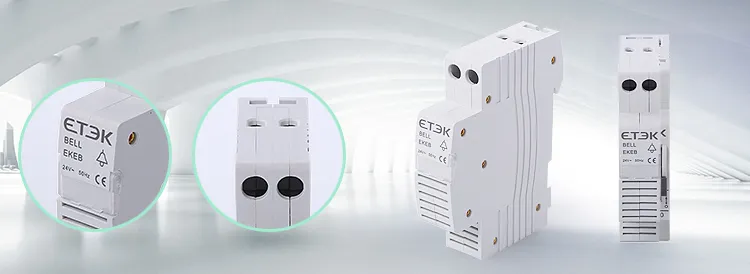

EKEB Din rail installation Electric Bell

EKEB Din rail installation Electric Bell

DIN Rail Modular Buzzer and Electric Bell

The electric bell is suitable for audible signaling for intermittent use only in domestic and commercial installations. Elegant appearance, compact size and easy installation; Low consumption

Inquire NOW PDF

Tags: Doorbell transformer Chime transformer Ring Doorbell

DIN Rail Modular Buzzer and Electric Bell

Inquire NOW PDF

Porduct Overview

Technical parameters

Recommended products

Porduct Overview

EKEB DIN rail bell is suitable mainly for household applications as a door bell or can be used as alarm. This bell is intended to be installed in an enclosure on DIN rail, which brings the advantage of not disturbing the original design of your home. To cover the whole building with ringing sound the sound level is minimally 75 dB.

Technical parameters

Technical Data

Construction and Feature
Elegant appearance, compact size and easy installation
Low consumption
Product with rated current up to 24V AC to be powered by bell transformer EKEB
Electrical Features
Rated voltage	8,12,24,230V AC
Rated frequency	50/60Hz
Service mode	Intermittent
Connection terminal	Pillar terminal with clamp
Connection capacity	Rigid conductor 10mm²
Installation	On symmetrical DIN rail 35mm
	Panel mounting
Terminal Connection Height	H=17mm

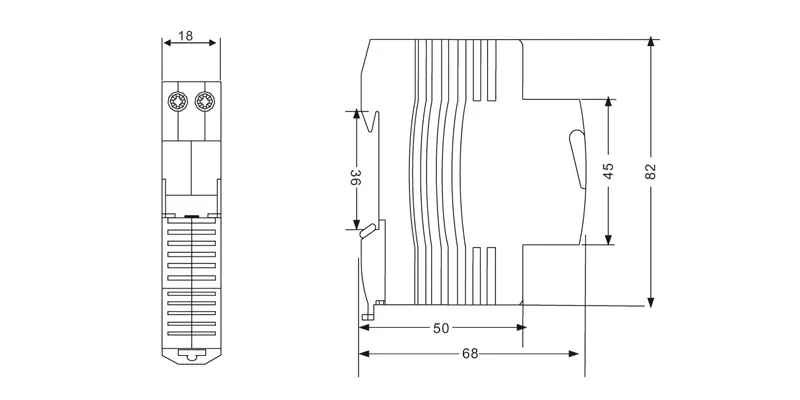

Dimensions

Product selection form

Rated Voltage	Reference No.
8V	EKEB-008
12V	EKEB-012
24V	EKEB-024
48V	EKEB-048
110V	EKEB-110
230V	EKEB-230

Download Files

Porduct Overview

EKEB DIN rail bell is suitable mainly for household applications as a door bell or can be used as alarm. This bell is intended to be installed in an enclosure on DIN rail, which brings the advantage of not disturbing the original design of your home. To cover the whole building with ringing sound the sound level is minimally 75 dB.
