EKBT doorbell transformer is suitable for AC 50Hz rated working voltage below 230V, and the output capacity is 3.8VA and 8VA. It is used as an ideal and safe power supply device for family doorbells.

Technical parameters

Technical Data

Construction and Feature
Safe electrical separation between primary and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25％within 24 hours
Electrical Features
Rated input voltage	230V AC
Rated output voltage	8, 12, 16, 24V
Rated frequency	50/60Hz
Rated power output	8VA
Consumption	0.9W
Service period	Continuous operating
Pollution class	2
Connection terminals	Pillar terminal with clamp
Connection capacity	Rigid conductor 10mm²
Installation	On symmetrical DIN rail 35mm
Installation	Panel mounting
Terminal Connection Height	H=15.5mm

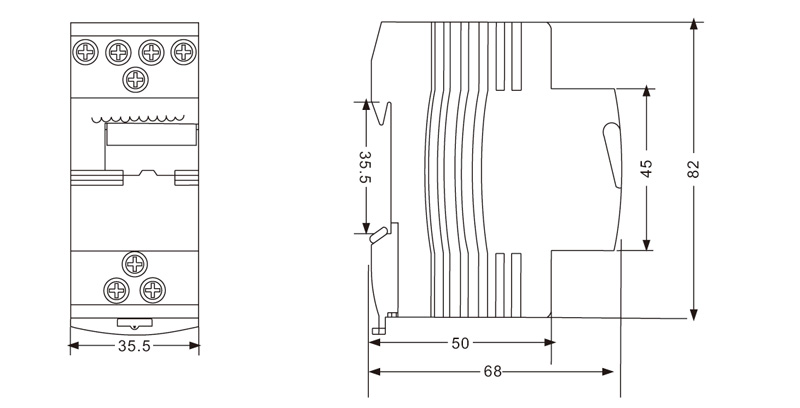

Dimensions

Download Files

Porduct Overview

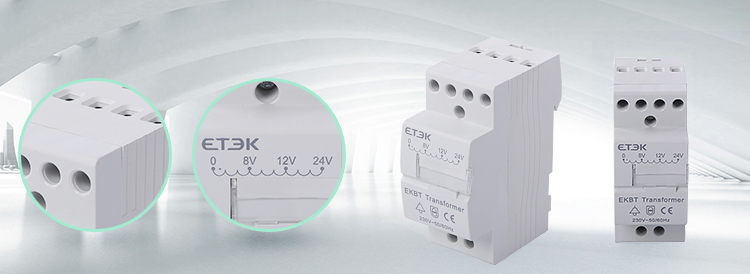

EKBT Bell Transformer manufacturer

EKBT doorbell transformer is suitable for AC 50Hz rated working voltage below 230V, and the output capacity is 3.8VA and 8VA. It is used as an ideal and safe power supply device for family doorbells.
