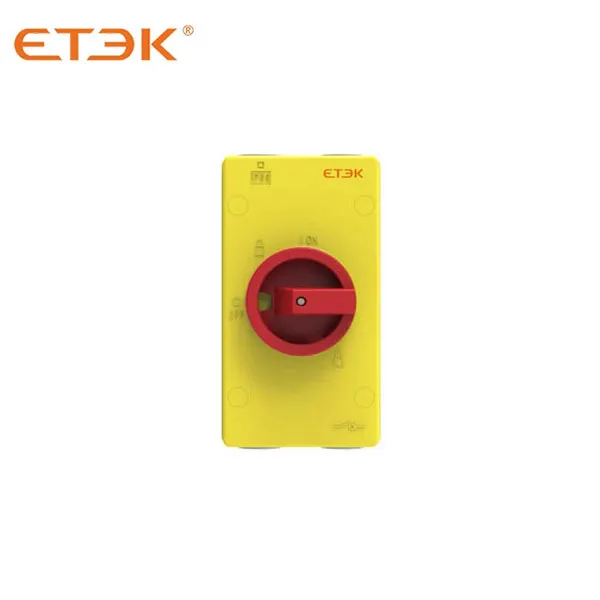

Porduct Overview

EKD6 isolated switch is widely used in industrial control machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection, safety disconnection, machine control, motor control and so on.
• With alloy contacts, electrical special silver long life and high reliability.
• Small size, space-saving installation.
• Construct a protective finger to make the operation safe.

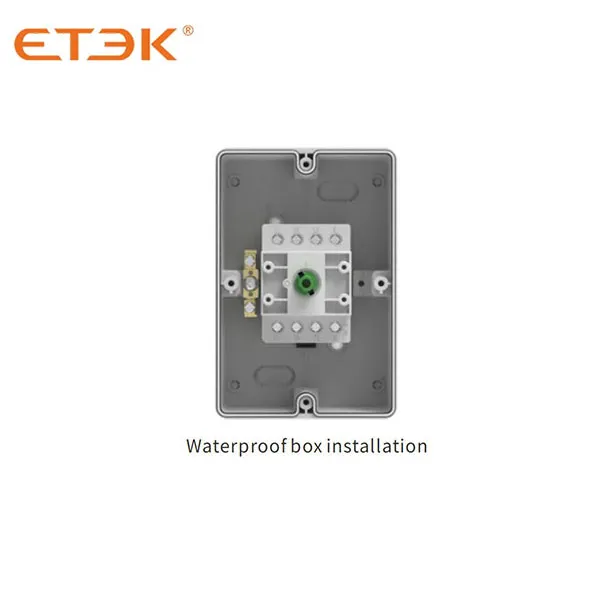

• With a variety of installation, ease of application of various purpose(panel mount, rail mount, sealed switch box type).
• IP66 degree of protection

Technical parameters

Technical Data

Current		20A	32A	40A	63A	80A
Type		EKD6-EL20R-4	EKD6-EL32R-4	EKD6-EL40R-4	EKD6-EL63R-3	EKD6-EL80R-3
Rated current		20A	32A	40A	63A	80A
Rated operating current AC-23A		16A	25A	32A	45A	45A
Rated operating current AC-3		12A	25A	30A	37A	37A
Rated power control AC-23A	240V	4KW	7.5KW	9KW	15KW	15KW
Rated power control AC-23A	440V	7.5KW	12.5KW	16KW	22KW	22KW
Rated power control AC-3	240V	3KW	5.5KW	7.5KW	11KW	11KW
Rated power control AC-3	440V	5.5KW	11KW	15KW	18.5KW	18.5KW
UL-CSA Motor load	240V	3KW	5KW	5KW	10KW	10KW
UL-CSA Motor load	440V	7.5KW	10KW	10KW	20KW	20KW
Rated short-time withstand current		250A	400A	500A	600A	850A
Connect wires		0.5-10MM2			1-16MM2
Screw torque		0.8-1.7N·m			1.5-2N·m
Rated insulation voltage		690V

Dimensions

Product selection form

Reference No.	Specification
EKD6-EL20R-2	AC Isolated Switch with box IP65 2P In:20A Red Handle
EKD6-EL32R-2	AC Isolated Switch with box IP65 2P In:32A Red Handle
EKD6-EL40R-2	AC Isolated Switch with box IP65 2P In:40A Red Handle
EKD6-EL63R-2	AC Isolated Switch with box IP65 2P In:63A Red Handle
EKD6-EL80R-2	AC Isolated Switch with box IP65 2P In:80A Red Handle
EKD6-EL20R-3	AC Isolated Switch with box IP65 3P In:20A Red Handle
EKD6-EL32R-3	AC Isolated Switch with box IP65 3P In:32A Red Handle
EKD6-EL40R-3	AC Isolated Switch with box IP65 3P In:40A Red Handle
EKD6-EL63R-3	AC Isolated Switch with box IP65 3P In:63A Red Handle
EKD6-EL80R-3	AC Isolated Switch with box IP65 3P In:80A Red Handle
EKD6-EL20R-4	AC Isolated Switch with box IP65 4P In:20A Red Handle
EKD6-EL32R-4	AC Isolated Switch with box IP65 4P In:32A Red Handle
EKD6-EL40R-4	AC Isolated Switch with box IP65 4P In:40A Red Handle
EKD6-EL63R-4	AC Isolated Switch with box IP65 4P In:63A Red Handle
EKD6-EL80R-4	AC Isolated Switch with box IP65 4P In:80A Red Handle

Download Files

Porduct Overview

Technical parameters

Technical Data

Current		20A	32A	40A	63A	80A
Type		EKD6-EL20R-4	EKD6-EL32R-4	EKD6-EL40R-4	EKD6-EL63R-3	EKD6-EL80R-3
Rated current		20A	32A	40A	63A	80A
Rated operating current AC-23A		16A	25A	32A	45A	45A
Rated operating current AC-3		12A	25A	30A	37A	37A
Rated power control AC-23A	240V	4KW	7.5KW	9KW	15KW	15KW
Rated power control AC-23A	440V	7.5KW	12.5KW	16KW	22KW	22KW
Rated power control AC-3	240V	3KW	5.5KW	7.5KW	11KW	11KW
Rated power control AC-3	440V	5.5KW	11KW	15KW	18.5KW	18.5KW
UL-CSA Motor load	240V	3KW	5KW	5KW	10KW	10KW
UL-CSA Motor load	440V	7.5KW	10KW	10KW	20KW	20KW
Rated short-time withstand current		250A	400A	500A	600A	850A
Connect wires		0.5-10MM2			1-16MM2
Screw torque		0.8-1.7N·m			1.5-2N·m
Rated insulation voltage		690V

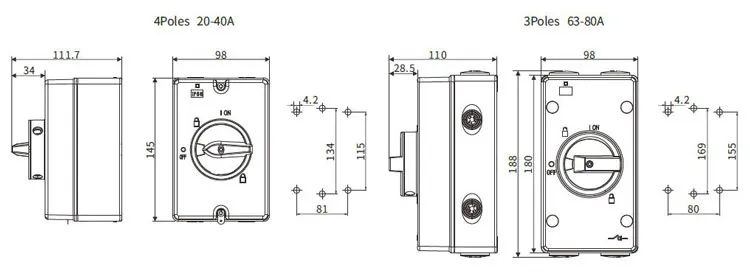

Dimensions

Product selection form

Reference No.	Specification
EKD6-EL20R-2	AC Isolated Switch with box IP65 2P In:20A Red Handle
EKD6-EL32R-2	AC Isolated Switch with box IP65 2P In:32A Red Handle
EKD6-EL40R-2	AC Isolated Switch with box IP65 2P In:40A Red Handle
EKD6-EL63R-2	AC Isolated Switch with box IP65 2P In:63A Red Handle
EKD6-EL80R-2	AC Isolated Switch with box IP65 2P In:80A Red Handle
EKD6-EL20R-3	AC Isolated Switch with box IP65 3P In:20A Red Handle
EKD6-EL32R-3	AC Isolated Switch with box IP65 3P In:32A Red Handle
EKD6-EL40R-3	AC Isolated Switch with box IP65 3P In:40A Red Handle
EKD6-EL63R-3	AC Isolated Switch with box IP65 3P In:63A Red Handle
EKD6-EL80R-3	AC Isolated Switch with box IP65 3P In:80A Red Handle
EKD6-EL20R-4	AC Isolated Switch with box IP65 4P In:20A Red Handle
EKD6-EL32R-4	AC Isolated Switch with box IP65 4P In:32A Red Handle
EKD6-EL40R-4	AC Isolated Switch with box IP65 4P In:40A Red Handle
EKD6-EL63R-4	AC Isolated Switch with box IP65 4P In:63A Red Handle
EKD6-EL80R-4	AC Isolated Switch with box IP65 4P In:80A Red Handle
