EKD6 isolated switch is widely used in industrial control machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection, safety disconnection, machine control, motor control and so on.

Inquire NOW PDF

EKD6 lockable AC Isolator Switch

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKD6 isolated switch is widely used in industrial control machinery and various electrical appliances, and can effectively solve the problems of emergency disconnection, safety disconnection, machine control, motor control and so on.
• With alloy contacts, electrical special silver long life and high reliability.
• Small size, space-saving installation.
• Construct a protective finger to make the operation safe.

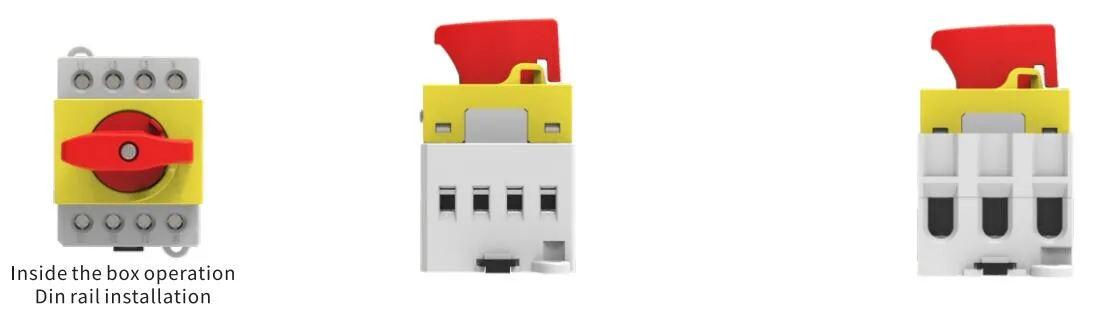

• With a variety of installation, ease of application of various purpose(panel mount, rail mount, sealed switch box type).
• IP66 degree of protection

Technical parameters

Technical Data

Current

20A

32A

40A

63A

80A

Type

EKD6-LK20-4RY

EKD6-LK32-4RY

EKD6-LK40-4RY

EKD6-LK63-3RY

EKD6-LK80-3RY

Rated current

20A

32A

40A

63A

80A

Rated operating current AC-23A

16A

25A

32A

45A

45A

Rated operating current AC-3

12A

23A

30A

37A

37A

Rated power control AC-23A

240V

4KW

7.5KW

9KW

15KW

15KW

440V

7.5KW

12.5KW

16KW

22KW

22KW

Rated power control AC-3

240V

3KW

5.5KW

7.5KW

11KW

11KW

440V

5.5KW

11KW

15KW

18.5KW

18.5KW

UL-CSA Motor load

240V

3KW

5KW

5KW

10KW

10KW

440V

7.5KW

10KW

10KW

20KW

20KW

Rated short-time withstand current

250A

400A

500A

600A

850A

Connect wires

0.5-10MM2

1-16MM2

Screw torque

0.8-1.7N·m

1.5-2N·m

Rated insulation voltage

690V



Current

20A

32A

40A

63A

80A

Type

EKD6-LK20-4

EKD6-LK32-4

EKD6-LK40-4

EKD6-LK63-3

EKD6-LK80-3

Rated current

20A

32A

40A

63A

80A

Rated operating current AC-23A

16A

25A

32A

45A

45A

Rated operating current AC-3

12A

23A

30A

37A

37A

Rated power control AC-23A

240V

4KW

7.5KW

9KW

15KW

15KW

440V

7.5KW

12.5KW

16KW

22KW

22KW

Rated power control AC-3

240V

3KW

5.5KW

7.5KW

11KW

11KW

440V

5.5KW

11KW

15KW

18.5KW

18.5KW

UL-CSA Motor load

240V

3KW

5KW

5KW

10KW

10KW

440V

7.5KW

10KW

10KW

20KW

20KW

Rated short-time withstand current

250A

400A

500A

600A

850A

Connect wires

0.5-10MM2

1-16MM2

Screw torque

0.8-1.7N·m

1.5-2N·m

Rated insulation voltage

690V

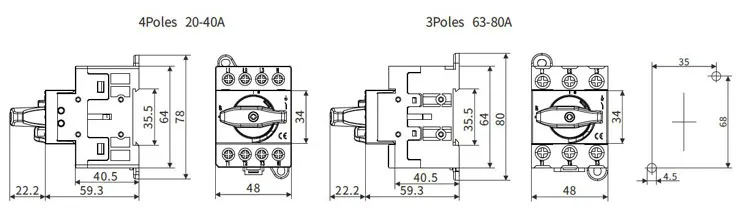

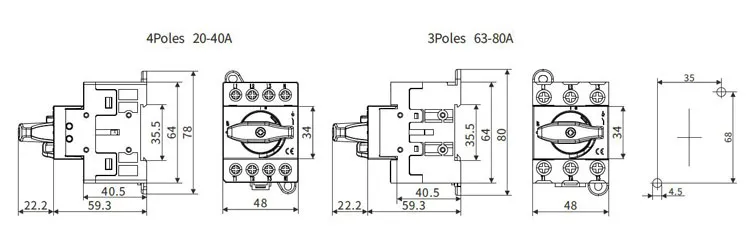

Dimensions



Product selection form

Reference No. Specification
EKD6-LK20-2RY AC lsolated Switch 2P In:20A Red Handle with Lock
EKD6-LK32-2RY AC lsolated Switch 2P In:32A Red Handle with Lock
EKD6-LK40-2RY AC lsolated Switch 2P In:40A Red Handle with Lock
EKD6-LK63-2RY AC lsolated Switch 2P In:63A Red Handle with Lock
EKD6-LK80-2RY AC lsolated Switch 2P In:80A Red Handle with Lock
EKD6-LK20-3RY AC lsolated Switch 3P In:20A Red Handle with Lock
EKD6-LK32-3RY AC lsolated Switch 3P In:32A Red Handle with Lock
EKD6-LK40-3RY AC lsolated Switch 3P In:40A Red Handle with Lock
EKD6-LK63-3RY AC lsolated Switch 3P In:63A Red Handle with Lock
EKD6-LK80-3RY AC lsolated Switch 3P In:80A Red Handle with Lock
EKD6-LK20-4RY AC lsolated Switch 4P In:20A Red Handle with Lock
EKD6-LK32-4RY AC lsolated Switch 4P In:32A Red Handle with Lock
EKD6-LK40-4RY AC lsolated Switch 4P In:40A Red Handle with Lock
EKD6-LK63-4RY AC lsolated Switch 4P In:63A Red Handle with Lock
EKD6-LK80-4RY AC lsolated Switch 4P In:80A Red Handle with Lock
EKD6-LK20-2 AC lsolated Switch 2P In:20A Black Handle with Lock
EKD6-LK32-2 AC lsolated Switch 2P In:32A Black Handle with Lock
EKD6-LK40-2 AC lsolated Switch 2P In:40A Black Handle with Lock
EKD6-LK63-2 AC lsolated Switch 2P In:63A Black Handle with Lock
EKD6-LK80-2 AC lsolated Switch 2P In:80A Black Handle with Lock
EKD6-LK20-3 AC lsolated Switch 3P In:20A Black Handle with Lock
EKD6-LK32-3 AC lsolated Switch 3P In:32A Black Handle with Lock
EKD6-LK40-3 AC lsolated Switch 3P In:40A Black Handle with Lock
EKD6-LK63-3 AC lsolated Switch 3P In:63A Black Handle with Lock
EKD6-LK80-3 AC lsolated Switch 3P In:80A Black Handle with Lock
EKD6-LK20-4 AC lsolated Switch 4P In:20A Black Handle with Lock
EKD6-LK32-4 AC lsolated Switch 4P In:32A Black Handle with Lock
EKD6-LK40-4 AC lsolated Switch 4P In:40A Black Handle with Lock
EKD6-LK63-4 AC lsolated Switch 4P In:63A Black Handle with Lock
EKD6-LK80-4 AC lsolated Switch 4P In:80A Black Handle with Lock
